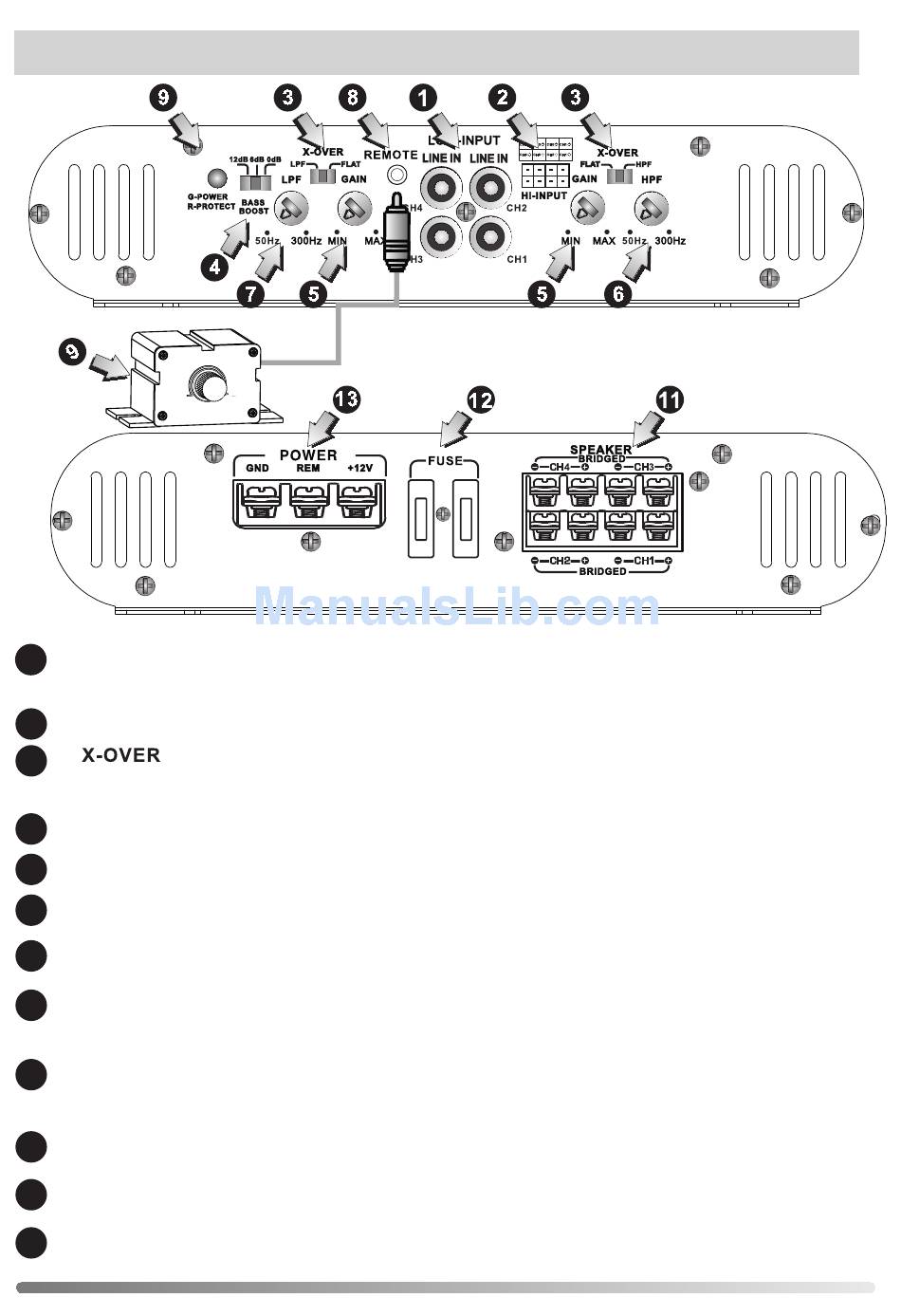

INSTRUCTIONS FOR FUNCTIONS AND CONTROLS
LOW INPUT
1
outputs of a source ( head unit,CD player,DAT,etc. ) or of an external electronic
crossover must be connected to them.
2
HIGH INPUT
3
Optional switches for CH1/CH2 High pass filter(HPF)/full pass filter(FLAT),
CH3/CH4 Low pass filter(LPF)/full pass filter(FLAT).
BASS BOOST
4
Optional switches for 0dB / +6dB / +12dB .
GAIN
5
Knob for volume adjustment.
HPF
6
High pass frequency adjusting knob , the frequency ranges from 50Hz to 300Hz.
LPF
7
Low pass frequency adjusting knob , the frequency ranges from 50Hz to 300Hz.
REMOTE CONTROLLER OUTLET
8
To be connected with the remote controller, which helps to boost the gain.
Pls turn the knob of volume to max before using the remote controller.
INDICATOR LIGHT
9
When this LED sends out green light, it means that this amplifier have being working now.
When this LED sends out red light, it means that the self-protection of the amplifier.
REMOTE CONTROLLER
10
volume level knob ,the boost ranges from 0.25V to +6V.
SPEAKER
11
Speaker connecting terminals.
FUSE
12
Standard automatic fuse, you must use the same power fuse if you need to change it.
1
Left and right channels inputs of the amplifier system. Preamplifier
High level input terminals.
