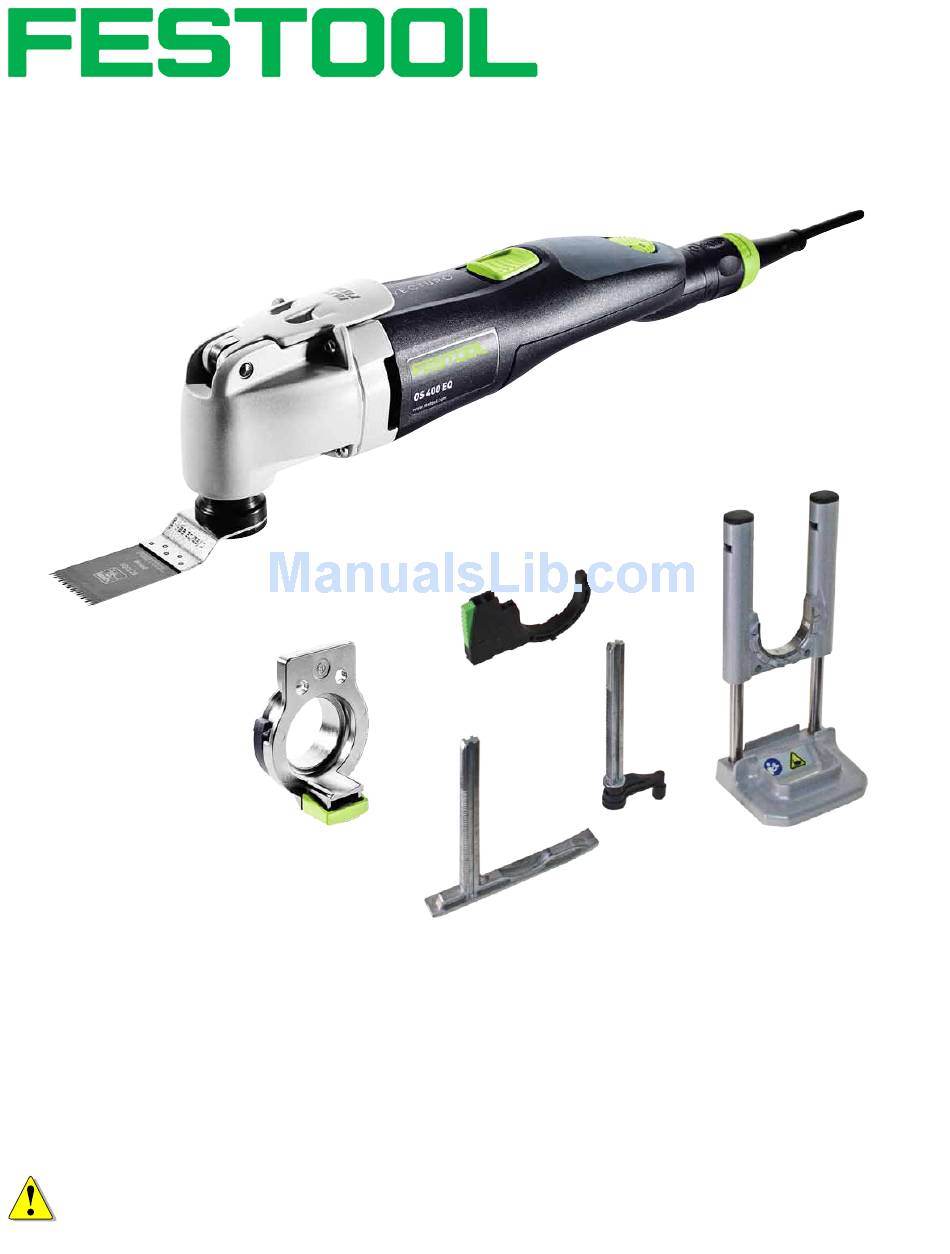

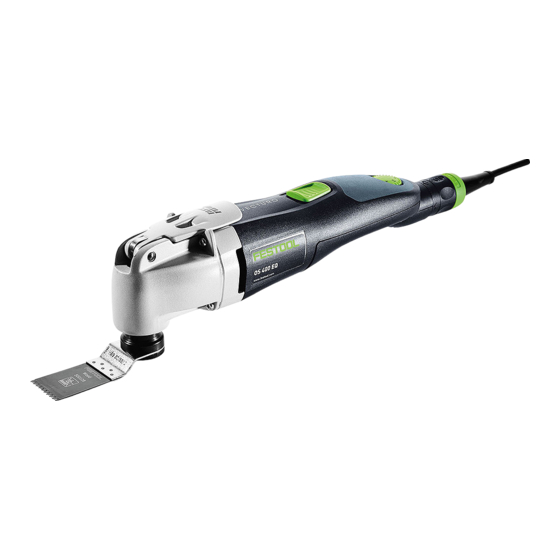

Supplemental User's Manual
WARNING To reduce the risk of serious injury, read and understand all safety
precautions and instructions in this manual before using this tool.

Advertisement

Table of Contents
loading

Related Manuals for Festool OS 400 EQ

Summary of Contents for Festool OS 400 EQ

  • Page 1 Vecturo Multi‑Purpose Oscillating Tool OS 400 EQ Supplemental User’s Manual WARNING To reduce the risk of serious injury, read and understand all safety precautions and instructions in this manual before using this tool.

  • Page 2: Limited Warranty

    2 Tool must be returned in complete and whole condition as supplied to include Systainer, Festool Canada Canada—613.363.0169 cutter, blade, power cord, etc. 3 For purposes of this warranty, power tools are defined as any Festool branded product that bears a serial number (S.Nr. or M.Nr.). 400 N Enterprise Dr. festoolusa.com/SAI...

  • Page 3: Table Of Contents

    Contents About This Manual ........... 3 Connecting the Plug-It Power Cord ....10 Tool Symbols ........... 3 Setting the Speed Control ....... 10 General Power Tool Safety Warnings ....4 Power Switch ..........10 Operation ............11 Work Area Safety .......... 4 Electrical Safety ..........

  • Page 4: General Power Tool Safety Warnings

    Store idle tools out of reach of children and do not allow Use the power tool, accessories, and tool bits etc. in accor- ► ► persons unfamiliar with the power tool or these instructions dance with these instructions, taking into account the working Vecturo OS 400 EQ Multi-Tool...

  • Page 5: Service

    conditions and the work to be performed. Use of the power To reduce the risk of serious injury, never alter or misuse the ► tool for operations different from those intended could result power tool. in a hazardous situation. Service Have your power tool serviced by a qualified repair person the safety of the power tool is maintained.

  • Page 6: Functional Description

    Ref. Page(s) Fast-Fix Lever Blade (Cutting Tool) 7, 12 Power Switch Accessory Adapter Speed Control Dial Depth Stop Guide Plug-It Power Port Depth Stop Shoe Plug-It Power Cord Depth Stop Pivot Blade Mandrel Plunge Base Vecturo OS 400 EQ Multi-Tool...

  • Page 7: Setup

    Setup Changing Blades There is a large variety of cutting and scraper blades avail- 3. Lift the blade and mandrel out of the arbor. able for the Vecturo (see “Cutting Blade Selection” on page 12 for blade choices). Blades should be changed for dif- Mandrel ferent tasks or when they become dull.

  • Page 8: Installing The Accessory Adapter

    The stops fit in only Arrows one direction. 4. To set the depth of the stop, press in on the depth adjust button and slide the stop in or out as needed. Sliding Shoe Stop Depth Adjust Button Vecturo OS 400 EQ Multi-Tool...

  • Page 9: Installing The Plunge Base

    Installing the Plunge Base The plunge base provides a guided cut perpendicular to the 2. Press in on the rotation adjust button and rotate the workpiece surface for a more accurate and finer cut than is plunge base to the desired position. The plunge base can obtainable freehand.

  • Page 10: Connecting The Plug-It Power Cord

    Power Switch Speed Setting Speed Control Dial Plug-It Port Key & Plug-It Cord Keyway Unlock Locking Lock Ring Vecturo OS 400 EQ Multi-Tool...

  • Page 11: Operation

    Operation Cutting Blade Principles Even though a multi-tool is fairly unique in its cutting opera- One of the primary operations of a multi-tool is flush trim- tion from other saw types, at the blade teeth it still resem- ming one workpiece relative to the surface of another. This bles a short-stroke reciprocating saw.

  • Page 12: Cutting Blade Selection

    As the cut gets deeper, you may want to reduce the speed to reduce the heat. Vecturo OS 400 EQ Multi-Tool...

  • Page 13: Maintenance And Adjustment

    Make sure the outlet has power. Check the circuit breaker or try another outlet. ► If used with a Festool dust extractor, make sure the selector switch is pointing to “Auto”. The ► auxiliary outlet on the dust extractor has power only when the selector is at Auto.

  • Page 14: Motor Brush Replacement

    If your coil spring. Vecturo stops working, it is likely that the brushes have warn and need replacement. Contact Festool for replace- 8. Move the coil spring back to pressing against the brush. ment brushes.
  • Page 15 Notes Supplemental Owner’s Manual...
  • Page 16 Festool USA 400 N. Enterprise Blvd Lebanon, IN 46052 www.festoolusa.com Service Questions: 800-554-8741 Application Questions: 888-337-8600...
