Page 1: User Manual

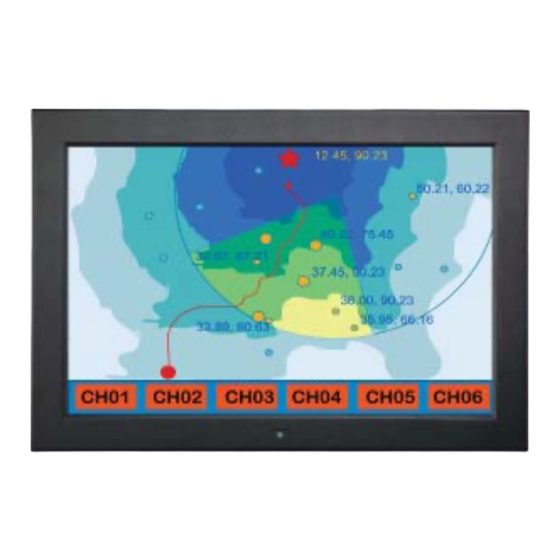

dedicated LCD display solutions User Manual 19” Widescreen LCD AP-W19 Aluminum front bezel NAP-W19 Front NEMA4 / IP65 OP-W19 Universal Mounting Open Frame Designed and manufactured by Austin Hughes UM-UV-621-W19-Q215V2 www.austin-hughes.com... - Page 3 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 4: Table Of Contents
Contents < Part. 1 > AP-W19 / NAP-W19 Package Content Structure Diagram & Dimension P.2 - 3 Mounting Hardware & Installation P.4 - 5 < Part. 2 > OP-W19 Package Content Structure Diagram & Dimension P.7 - 8 Mounting Hardware & Installation <... -
Page 5: Before Installation
Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content. -
Page 6: Part. 1 > Ap-W19 / Nap-W19
< Part 1 > < 1.1 > Package Content - AP / NAP-W19 AP-W19 / NAP-W19 19" Widescreen LCD display X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1 Mounting hardware X 1 pack - Mounting bracket x 4 pcs - M4* 6mm screw x 8 pcs - M4* 50mm screw x 8 pcs... - Page 7 < 1.2 > Structure Diagram - AP / NAP-W19 19" Widescreen LCD Display Front view AP-W19 NAP-W19 Rear view Rear case LCD panel Protective 3mm glass 6mm aluminum front bazel Audio speaker ( for HDMI, Audio or TV option ) LCD membrane Remote sensor Product Dimension...
- Page 8 < 1.2 > Dimension - AP / NAP-W19 Front View Side View AP-W19 NAP-W19 Rear View UNIT : mm 1mm = 0.03937 inch Bottom View UM-UV-621-W19-Q215V2 www.austin-hughes.com...
- Page 9 < 1.3 > Panel Mount Installation - AP / NAP-W19 19” Widescreen LCD Display M4*50mm screw M4*6mm screw Mounting bracket x 8 pcs x 8 pcs x 4 pcs Hardware set part no. UV-BK#2 Steps ■ Install 4 mounting brackets with 8 x M4*6mm screws ■...
- Page 10 < 1.3 > VESA mount Installation - AP / NAP-W19 M4 screw VESA mount ( 100*100mm ) ■ Hardware and M4*4 pcs for VESA mount are not provided UM-UV-621-W19-Q215V2 www.austin-hughes.com...
-
Page 11: Package Content
< Part 2 > < 2.1 > Package Content - OP-W19 19” Widescreen LCD Display OP-W19 19" Widescreen LCD display X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1 Basic I/O Power DVI-D AV2.2D upgrade I/O Audio Power S-Video... - Page 12 < 2.2 > Structure Diagram - OP-W19 Front view OP-W19 Rear case Rear view LCD panel Audio speaker ( for HDMI, Audio or TV option ) Universal open frame mounting LCD membrane Extended remote sensor membrane cable ( 66cm from AD board to sensor end ) Product Dimension Packing Dimension Gross...
-
Page 13: Part. 2 > Op-W19
< 2.2 > Dimension - OP-W19 19” Widescreen LCD Display Front View Side View OP-W19 UNIT : mm Rear View 1mm = 0.03937 inch Bottom View UM-UV-621-W19-Q215V2 www.austin-hughes.com... - Page 14 < 2.3 > Installation - OP-W19 ( I ) Universal mount ( II ) VESA mount ( 100*100mm ) M4 screw Hardware and M4*4 pcs for VESA mounting are not provided UM-UV-621-W19-Q215V2 www.austin-hughes.com...
-
Page 15: Product Specifi Cations
< Part 3 > < 3.1 > Product Specifi cations 19” Widescreen LCD Display Mechanical AP / NAP-W19 OP-W19 Design Front Panel Black, RAL 9005 Rear Casing Black, RAL 9005 Black, RAL 9005 VESA Mounting 100 x 100mm 100 x 100mm Other Mounting Panel mount Universal mount... - Page 16 Physical AP / NAP-W19 OP-W19 Specifi cation Product ( W x D x H ) 508.5 x 65.6 x 338.1 mm 505.5 x 59.6 x 335.1 mm 20 x 2.6 x 13.3 inch 19.9 x 2.3 x 13.2 inch Packing ( W x D x H ) 662 x 115 x 533 mm 662 x 115 x 533 mm 26.1 x 4.5 x 21 inch...
-
Page 17: On-Screen Display Operation ( Osd )
< 3.2 > On-screen Display Operation ( OSD ) 19” Widescreen LCD Display Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen... -
Page 18: Part 4 > Options
< Part 4 > Options < 4.1 > Option Table Options AP / NAP SDI *** HDMI * or DVI-D S-Video * + Composite ( BNC ) Audio Touchscreen MCS multi-display control DC Power MIL-type / lockable connector Quad display TV ( Analog ) * About SDI ( 1 ) The AD board will be upgraded to version 3.0, and this comes standard with HDMI, DVI-D,... -
Page 19: Options : 3G / Hd / Sd-Sdi Input
< 4.2 > Options : 3G / HD / SD-SDI input 19” Widescreen LCD Display Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with UltraView Full HD 1080p and ultra high resolution 1920 x 1200 LCD displays, Austin Hughes provides a SDI input module without using additional space or power and it comes standard with a 2-year warranty. -
Page 20: Multi-Display Control
< 4.3 > Options : MCS More control is always good. Especially when it is necessary and easy. Austin Hughes provides MCS solution to control the OSD of ( Multi-display Control ) various UltraView LCD display up to 64 units. The RS-232C is used for the communication between the PC and the fi... - Page 21 < 4.4 > Options : 19” Widescreen LCD Display AV2.2D Upgrade Options ( DVI-D TMDS single link - DVI-D ( S-Video + Composite, BNC ) - AV ( Built-in Dual Stereo Speakers, 2W x 2 ) - Audio ( 3.5mm audio jacks for audio in & out ) Audio Power S-Video...
- Page 22 Switches on or off the TV POWER Turn on or off the speaker MUTE Switch to signal input mode INPUT Select channels. For channel numbers 10 and above, enter the second digit within two seconds. 0- 9 Increase or decrease the speaker volume V + / - Increase or decrease the channel number CH + / -...
- Page 23 < 4.5 > AV3.0 Upgrade Options : 19” Widescreen LCD Display ( HDMI 1.1, CEA-861-D - HMDI ( DVI-D TMDS single link - DVI-D ( S-Video + Composite, BNC ) - AV ( Built-in Dual Stereo Speakers, 2W x 2 ) - Audio ( 3.5mm audio jacks for audio in &...
-
Page 24: Options : Touchscreen & Driver
< 4.6 > Options : Touchscreen & driver W19" USB Touchscreen Specifi cation e-Resistive e-Capacitive Model 5-Wire Resistive Capacitive Technology Single Single Touch Point Finger or Stylus Finger Input Type 2048 x 2048 2048 x 2048 Resolution Touch Point Accuracy 15 ms 20 ms Response Speed... - Page 25 < 4.6 > Options : Touchscreen & driver 19” Widescreen LCD Display TRB / TCB Driver Please follow the below steps to setup the touch screen:- Step 1. Run the bundled CD disc or download the driver from the link below : http://www.austin-hughes.com/downloads/UVDL/driver.html Step 2.
- Page 26 < 4.7 > Options : DC Power Model 110 ~ 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 50 mA 40 mA...
- Page 27 19” Widescreen LCD Display < 4.8 > Options : MIL-type or Lockable Connector Input Part no. MIL Standard MS3470W8-33P MIL - DTL - 26482 DC Power MIL - type ( Male ) Connector MS3470W14-15P MIL - DTL - 26482 ( Male ) There are several additional MIL DC and VGA connector types with varying design characteristics to meet cost considerations and to provide users with the most design fl...
- Page 28 < 4.9 > Options : Quad Display QD Specifi cation Item Description Model Number QD (NTSC) QD (PAL) Number of Color 16.7 M 16.7 M Imaging System NTSC Resolution 1024 x 525 1024 x 625 Refresh Rate 1.0 Vpp, 75 Ohm x 4 Camera Input Video Input 1.0 Vpp, 75 Ohm x 1...
-
Page 29: Tv ( Analog )
< 4.10 > Options : TV ( Analog ) 19” Widescreen LCD Display Audio Power S-Video HDMI out - in - in Video PC For TV option : ( 1 ) The AD board comes standard with HDMI, VGA, S-Video, BNC, audio inputs and RC-2 remote controller. - Page 30 How to Use RC-2 Remote Controller INPUT MUTE -/-- FREEZE AUTO MENU SELECT ASPECT SLEEP ENTER BACK EXIT SWAP SOURCE POSITION AUDIO Select the source INPUT Switches on or off the TV Only use in TV mode. Select channels. For channel numbers 10 0 - 9 and above, enter the second digit within two seconds.
- Page 32 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2015 Austin Hughes Electronics Ltd. All rights reserved. UM-UV-621-W19-Q215V2 www.austin-hughes.com...
