Summary of Contents for Austin Hughes Electronics UltraView DP-17

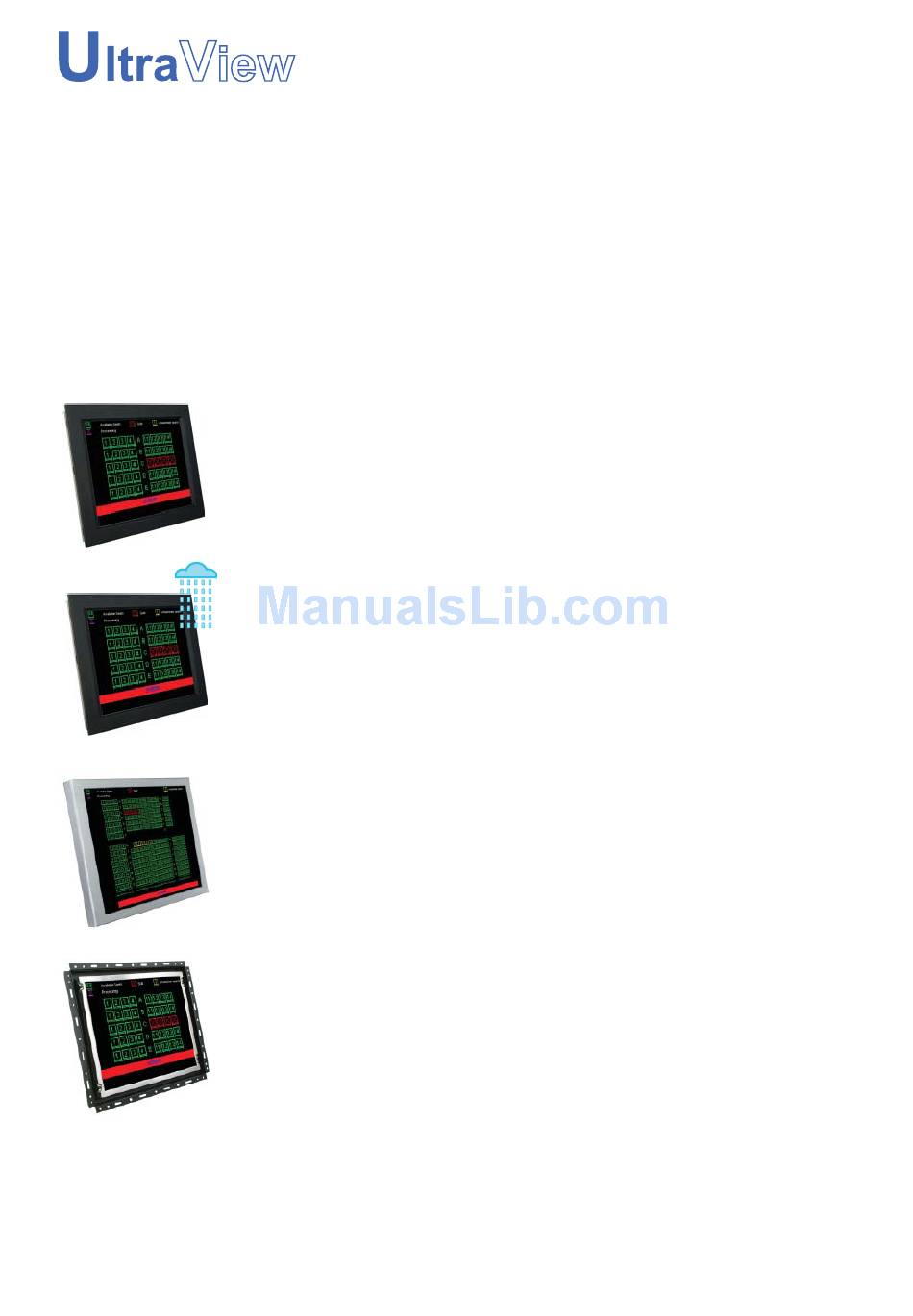

- Page 1 User Manual AP-17 NAP-17 DP-17 OP-17 - AV / BNC Options : - Touchscreen - DC power - DVI - Audio in Innovative LCD Display Front aluminum LCD panel Front NEMA4 / IP 65 LCD panel Stylish front aluminum cover LCD panel Open frame LCD panel 17"...
-
Page 2: Table Of Contents
Chapter 1 Getting Started Important Safeguards...1 Before Installation...2 Unpacking...2 Optional Accessories...2 Chapter 2 AP-17 Package Contents...3 Structure Diagram Dimension Diagram Mounting Method Chapter 3 NAP-17 Package Contents...8 Structure Diagram Dimension Diagram Mounting Method Chapter 4 DP-17 Package Contents...13 Structure Diagram Dimension Diagram Mounting Method Chapter 5 OP-17... - Page 3 Chapter 6 Connection Chapter 7 Operation Chapter 8 LCD Specifi cation Chapter 9 AV, BNC, DVI Options Chapter 10 Touchscreen Options 10.1 Chapter 11 DC Power Options Chapter 12 Troubleshooting Chapter 13 Dimensions Chapter 14 Cleaning the LCD display ...21 On-screen Display Operation...21 On-screen Menu...22 ...23...
- Page 4 Blank page...
-
Page 5: Important Safeguards
1.1 Important Safeguards Please read all of these instructions carefully before you use the device. Save this manual for future reference. What the warranty does not cover ■ Any product, on which the serial number has been defaced, modifi ed or removed. ■... -
Page 6: Before Installation
1.2 Before Installation ■ It is very important to locate the LCD Display in a suitable environment. ■ The surface for placing and fi xing the LCD Display should be stable. ■ Make sure the place has good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. -
Page 7: Front Aluminum Lcd Panel 2.1 Package Contents
2.1 AP-17 series Package Contents LCD display x 1 pc 6' VGA cable (male to male) x 1 pc User manual x 1 pc Power cord x 1 pc Auto switch power adapter x 1pc Mounting bracket A x 4 pcs Mounting bracket B x 12 pcs M4*6mm screw x 8 pcs M4*50mm screw x 12 pcs... -
Page 8: Chapter 2
2.2 AP-17 series Structure Diagram Front View Rear case SAMSUNG Class A TFT LCD panel 4mm protective glass Rear View 6mm aluminum front bezel LCD membrane Chapter 2... -
Page 9: Dimension Diagram
Chapter 2 2.3 AP-17 series Dimension Diagram UNIT : mm 1mm = 0.03937 inch Front View Rear View... -
Page 10: Mounting Method
2.4 AP-17 series Mounting Method Mounting bracket A x 4 pcs Mounting bracket A Mounting bracket B x 12 pcs Mounting bracket B x 8 pcs M4*6mm screw x 12 pcs M4*50mm screw Chapter 2... -
Page 11: Mounting Method
Chapter 2 2.4 AP-17 series Mounting Method 100mm VESA standard UNIT : mm 1mm = 0.03937 inch Remarks ■ Hardware and M4*4 pcs for VESA mounting is not provided... -
Page 12: Chapter 3 Nap-17
NAP-17 series Package Contents LCD display x 1 pc 6' VGA cable (male to male) x 1 pc User manual x 1 pc Power cord x 1 pc Auto switch power adapter x 1pc Mounting bracket A x 4 pcs Mounting bracket B x 12 pcs M4*6mm screw x 8 pcs M4*50mm screw x 12 pcs... -
Page 13: Structure Diagram
NAP-17 series Structure Diagram Front View Rear case SAMSUNG Class A TFT LCD panel 4mm protective glass (Front NEMA 4 / IP65 protection) Rear View 6mm aluminum front bezel LCD membrane Chapter 3... -
Page 14: Dimension Diagram
Chapter 3 NAP-17 series Dimension Diagram UNIT : mm 1mm = 0.03937 inch Front View Rear View P.10... -
Page 15: Mounting Method
NAP-17 series Mounting Method Mounting bracket A x 4 pcs Mounting bracket A Mounting bracket B x 12 pcs Mounting bracket B x 8 pcs M4*6mm screw x 12 pcs M4*50mm screw P.11 Chapter 3... -
Page 16: Mounting Method
Chapter 3 NAP-17 series Mounting Method 100mm VESA standard UNIT : mm 1mm = 0.03937 inch Remarks ■ Hardware and M4*4 pcs for VESA mounting is not provided P.12... -
Page 17: Stylish Front Aluminum Cover Lcd Panel 4.1 Package Contents
4.1 DP-17 series Package Contents LCD display x 1 pc 6' VGA cable (male to male) x 1 pc User manual x 1 pc Power cord x 1 pc Auto switch power adapter x 1pc P.13 Chapter 4... -
Page 18: Structure Diagram
4.2 DP-17 series Structure Diagram Front View Rear case SAMSUNG Class A TFT LCD panel 4mm protective glass Rear View 1.2mm front aluminum cover LCD membrane P.14 Chapter 4... -
Page 19: Dimension Diagram
Chapter 4 4.3 DP-17 series Dimension Diagram UNIT : mm 1mm = 0.03937 inch Front View Rear View P.15... -
Page 20: Mounting Method
Chapter 4 4.4 DP-17 series Mounting method 100mm VESA standard UNIT : mm 1mm = 0.03937 inch Remarks ■ Hardware and M4*4 pcs for VESA mounting is not provided P.16... -
Page 21: Chapter 5
5.1 OP-17 series Package Contents LCD display x 1 pc 6' VGA cable (male to male) x 1 pc User manual x 1 pc Power cord x 1 pc Auto switch power adapter x 1pc P.17 Chapter 5... -
Page 22: Structure Diagram
5.2 OP-17 series Structure Diagram Front View Rear case SAMSUNG Class A TFT LCD panel Rear View Universal open frame mounting LCD membrane P.18 Chapter 5... -
Page 23: Dimension Diagram
Chapter 5 5.3 OP-17 series Dimension Diagram UNIT : mm 1mm = 0.03937 inch Front View Rear View P.19... -
Page 24: Mounting Method
5.4 OP-17 series Mounting method Universal open frame mounting Remarks ■ Hardware for fixing the LCD display is not provided 100mm VESA standard Remarks ■ Hardware and M4*4 pcs for VESA mounting is not provided P.20 Chapter 5 UNIT : mm 1mm = 0.03937 inch... -
Page 25: Chapter 6 Connection
6.1 Connection Power The LCD Display are hot-pluggable, but components of connected devices may Caution : not be hot-pluggable. Plugging and unplugging cables while connected devices are pow- ered on may cause irreversible damage of the devices and LCD Display. Before attempting to connect anything to the LCD Display, we suggest that turn off power to all devices before connecting them. -
Page 26: On-Screen Menu
7.2 On-screen Menu MAIN MENU BRIGHTNESS/CONTRAST AUTO ADJUST PHASE/CLOCK H/V POSITION MISC RESET BRIGHTNESS / CONTRAST Brighthtness: Adjust background black level of the screen image. Contrast: Adjust the difference between the image background (black level) and the foreground (white level). AUTO ADJUST Auto Adjust: Fine tunes the video signal to eliminate waviness and distortion. -
Page 27: Chapter 7 Operation
8.1 LCD Specifi cations Item LCD Manufacturer Diagonal Size Max. Resolution Brightness (cd/m²) Color Support Contrast Ratio (typ.) Viewing Angle (H/V) Display Area (mm) Tr Response Time (ms) Display Input Signal Connection Power Input Power Consumption Compatibility Options Graphic Input DC Power Touchscreen Environmental... -
Page 28: Dvi-D Option
9.1 DVI-D Option Power Remarks ■ Package includes with a 6' DVI-D cable 9.2 S-Video + RCA Input Option Power Remarks ■ Package includes an extra 6ft S-Video and 6ft RCA cables 9.3 S-Video + BNC Input Option Power Remarks ■... -
Page 29: On-Screen Menu For Dvi, Bnc, S-Video & Rca Input
9.4 On-screen Menu for DVI, BNC, S-Video & RCA Input Image Brightness: Adjust background black level of the screen image Contrast: Adjust the difference between the image background (black level) and the foreground (white level) Sharpness: Adjust the image from weak to sharp Saturation: Adjust the saturation of the image color Hue:... -
Page 30: Chapter 10 Touchscreen Options
10.1 Touchscreen Options USB interface Power Serial interface Power e-Resistive Model Screen size Interface Optical transmittance Surface hardness Operating system 3M Capacitive Model Screen size Interface Optical transmittance Surface hardness Operating system Remarks ■ USB touchscreen package includes an extra 6ft USB cable, quick reference guideline and CD disc ■... -
Page 31: Touchscreen Quick User Guidelines
10.1 Touchscreen Options Touchscreen Quick User Guidelines e-Resistive touchscreen provides more accurate 25 points calibration for touch sensor. Caution : ■ At the fi rst assembly of touch screen, we suggest applying 25 points calibration. ■ For a more accurate calibration of touch screen, please apply 25 points calibration. ■... -
Page 32: Chapter 11 Dc Power Options
11.1 DC Power Options DC Power Model Input rating Input voltage: Input range: Input current - No load - Full load Output rating Output voltage: Output current: Effi ciency Remarks ■ Package does not include power cord and AC power adapter 12-Volt 24-Volt 9 ~ 18V... -
Page 33: Chapter 12 Troubleshooting
Chapter 12 12.1 Troubleshooting 1. How do I adjust the resolution? To change monitor resolution, click Start -> Control Panel -> Display. Select Setting tab to adjust the monitor resolution in Desktop Area. The available resolutions, "640 x 480", "800 x 600", "1024 x 768", "1152 x 864", "1280 x 1024", are deter- mined by the display card in your computer. -
Page 34: Chapter 13 Dimensions
13.1 Dimensions Product Dimension Model (W x D x H) 415 x 57 x 328 mm AP-17 series 16.3 x 2.2 x 12.9" 438 x 59 x 363 mm NAP-17 series 17.2 x 2.3 x 14.3" 393 x 52 x 311 mm DP-17 series 15.5 x 2 x 12.2"... -
Page 35: Chapter 14 Cleaning The Lcd Display
Chapter 14 the LCD display 14.1 Cleaning You may need the following precautions before you begin to clean the LCD display, please read and understand the details below fully. 1. Make sure the monitor is turned off 2. Never spray or pour any liquid onto the screen directly 3. - Page 36 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2007 Austin Hughes Electronics Ltd. All rights reserved. UV-017-1007V1...
