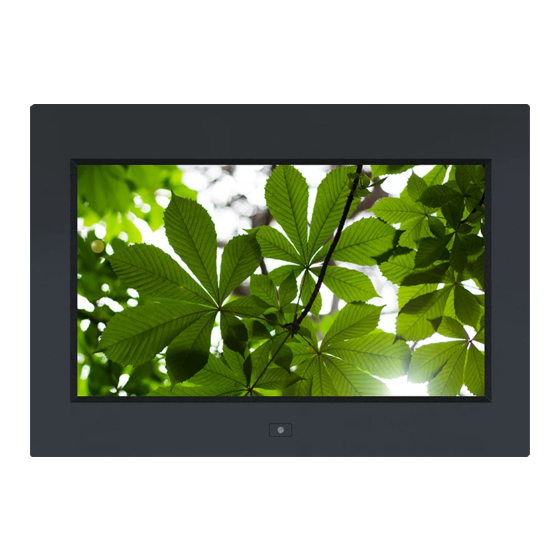

- Page 1 dedicated LCD display solutions User Manual 17” FHD LCD AP-F17 / HAP-F17 Aluminum front bezel NAP-F17 / HNAP-F17 Front NEMA4 / IP65 DP-F17 / HDP-F17 Aluminum Front Panel OP-F17 / HOP-F17 Universal Open Frame Designed and manufactured by Austin Hughes UM-UV-621-F17-Q119V1 www.austin-hughes.com...
- Page 2 Legal Information First English printing, January 2019 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > AP-F17 / NAP-F17 / HAP-F17 / HNAP-F17 Package Content Structure Diagram & Dimension P.2 - 3 Mounting Hardware & Installation < Part. 2 > DP-F17 / HDP-F17 Package Content Structure Diagram & Dimension P.6 - 7 Mounting Hardware &... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: Package Content
< Part 1 > AP-F21 / NAP-F21 / HAP-F21 / HNAP-F21 17" FHD LCD Display < 1.1 > Package Content AP-F17 / NAP-F17 HAP-F17 / HNAP-F17 17” FHD LCD display X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1 Mounting hardware X 1 pack - Mounting bracket x 4 pcs... -
Page 6: Structure Diagram & Dimension
< 1.2 > Structure Diagram Front view Side View AP-F17 / NAP-F17 HAP-F17 / HNAP-F17 Bottom view Rear case Rear view LCD panel Protective 3mm glass 6mm aluminum front bazel Audio speaker, pair LCD membrane Remote sensor Product Dimension Packing Dimension Gross Model (W x D x H) - Page 7 < 1.2 > Dimension 17" FHD LCD Display Front View Side View AP-F21 / NAP-F21 HAP-F21 / HNAP-F21 Rear View UNIT : mm 1mm = 0.03937 inch Bottom View UM-UV-621-F17-Q119V1 www.austin-hughes.com...
- Page 8 < 1.3 > Installation ( I ) Panel mount M4*50mm screw M4*6mm screw Mounting bracket x 8 pcs x 8 pcs x 4 pcs Hardware set part no. UV-BK#2 Steps ■ Install 4 mounting brackets with 8 x M4*6mm screws ■...
- Page 9 < Part 2 > DP-F17 / HDP-F17 17" FHD LCD Display < 2.1 > Package Content DP-F17 / HDP-F17 17” FHD LCD display X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1 Mounting hardware X 1 pack - Mounting bracket x 4 pcs - M4* 6mm screw x 8 pcs - M4* 50mm screw x 8 pcs...
- Page 10 < 2.2 > Structure Diagram Front view Side View DP-F17 / HDP-F17 Bottom view Rear case Rear view LCD panel 6mm aluminum front cover Audio speaker, pair LCD membrane Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H) Weight Weight...
-
Page 11: Part. 2 > Dp-F17 / Hdp-F17
< 2.2 > Dimension 17" FHD LCD Display Front View Side View DP-F17 / HDP-F17 Rear View UNIT : mm 1mm = 0.03937 inch Bottom View UM-UV-621-F17-Q119V1 www.austin-hughes.com... - Page 12 < 2.3 > VESA mount Installation M4 screw VESA mount ( 100*100mm ) ■ Hardware and M4*4 pcs for VESA mount are not provided UM-UV-621-F17-Q119V1 www.austin-hughes.com...
-
Page 13: Package Content
< Part 3 > OP-F17 / HOP-F17 17" FHD LCD Display < 3.1 > Package Content OP-F17 / HOP-F17 17” FHD LCD display X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1 Basic I/O Power DVI-D DVI-D... -
Page 14: Structure Diagram & Dimension
< 3.2 > Structure Diagram Front view Side View OP-F17 / HOP-F17 Bottom view Rear case LCD panel Audio speaker, pair Rear view Universal open frame mounting LCD membrane Extended remote sensor membrane cable ( 66cm from AD board to sensor end ) Product Dimension Packing Dimension Gross... -
Page 15: Part. 3 > Op-F17 / Hop-F17
< 3.2 > Dimension 17" FHD LCD Display Front View Side View OP-F17 / HOP-F17 Rear View UNIT : mm 1mm = 0.03937 inch Bottom View UM-UV-621-F17-Q119V1 P.11 www.austin-hughes.com... - Page 16 < 3.3 > Installation ( I ) Universal mount ( II ) VESA mount ( 100*100mm ) M4 screw Hardware and M4*4 pcs for VESA mounting are not provided UM-UV-621-F17-Q119V1 P.12 www.austin-hughes.com...
-
Page 17: Product Specifi Cations
< Part 4 > < 4.1 > Product Specifi cations 17" FHD LCD Display AP-F17 / NAP-F17 / DP-F17 / OP-F17 / Mechanical Design HAP-F17 HNAP-F17 HDP-F17 HOP-F17 Protection 6mm front bezel NEMA 4 / IP65 front cover open frame Front Panel Black, RAL 9005 Rear Casing... - Page 18 < 4.1 > Product Specifi cations Environmental Conditions Operating Temperature 0 to 55°C degree Humidity 20~90%, non-condensing Altitude 16,000 ft Storage / Temperature -20 to 60°C degree Non-operating Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration ( 11ms duration ) Vibration 10~300Hz 0.5G RMS random vibration AP-F17 /...
-
Page 19: On-Screen Display Operation ( Osd )
< 4.2 > On-screen Display Operation ( OSD ) 17" FHD LCD Display Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen... -
Page 20: Option Table
< Part 5 > Options < 5.1 > Option Table AP / HAP / Options HNAP ✓ ✓ ✓ ✓ ✓ ✓ SDI *** ✓ ✓ ✓ ✓ ✓ ✓ HDMI * ✓ ✓ ✓ ✓ ✓ ✓ Audio ✓ ✓... - Page 21 < 5.2 > Options : 3G / HD / SD-SDI input 17" FHD LCD Display Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with UltraView displays, a SDI input module can support up to 1080p @60Hz resolution without using additional space or power and it comes standard with a 2-year warranty.
- Page 22 < 5.3 > Options : MCS More control is always good. Especially when it is necessary and easy. Austin Hughes provides MCS solution to control the OSD of ( Multi-display Control ) various UltraView LCD display up to 64 units. The RS-232C is used for the communication between the PC and the fi...
- Page 23 < 5.4 > AV3.0 Upgrade Options : 17" FHD LCD Display ( HDMI 1.4, CEA-861-E ) - HMDI ( Built-in Dual Stereo Speakers, 2W x 2 ) - Audio ( 3.5mm audio jacks for audio in & out ) Audio Power DVI-D HDMI...
- Page 24 How to Use RC-2 Remote Controller INPUT MUTE -/-- FREEZE AUTO MENU SELECT ASPECT SLEEP ENTER BACK EXIT SWAP SOURCE POSITION AUDIO Select the source INPUT Switches on or off the TV Only use in TV mode. Select channels. For channel numbers 10 0 - 9 and above, enter the second digit within two seconds.
-
Page 25: Projected Capacitive ( 10-Point Touch )
< 5.5 > Options : Touchscreen & driver 17" FHD LCD Display F17" USB Touchscreen Specifi cation Multi-touch e-Resistive Model F17TPC-10 Projected Capacitive 5-Wire Resistive Technology Single Touch Point Finger or Stylus Input Type 4096 x 4096 2048 x 2048 Resolution ±... - Page 26 < 5.5 > Options : Touchscreen & driver F17TPC-10 Driver Connect the USB cable from the USB port on the LCD to a computer. The touch screen supports easy Plug-and-Play operations. There is no need to install additional drivers on the computer. TRB Driver Please follow the below steps to setup the touch screen:- Step 1.
- Page 27 17" FHD LCD Display < 5.6 > Options : DC Power Model 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 50 mA...
-
Page 28: Mil-Type Or Lockable Connector
< 5.7 > Options : MIL-type or Lockable Connector Input Part no. MIL Standard MS3470W8-33P MIL - DTL - 26482 DC Power MIL - type ( Male ) Connector MS3470W14-15P MIL - DTL - 26482 ( Male ) There are several additional MIL DC and VGA connector types with varying design characteristics to meet cost considerations and to provide users with the most design fl... -
Page 29: Options For Sunlight Readable : Auto Dimming
17" FHD LCD Display < 5.8 > Options for Sunlight Readable : Auto Dimming DA-01 Light sensor on OP model DA-01 Light sensor on AP model ( 66cm from AD board to sensor end ) DA-01 light sensor installed on the display front panel. Users can set auto dimming ON or OFF from OSD menu. - Page 30 < 6 > Ultraview F17 Family 400 cd/m Brightness 1000 cd/m Sunlight Readable Brightness 6mm aluminum front bezel 6mm aluminum front bezel AP-F17 HAP-F17 6mm aluminum front bezel 6mm aluminum front bezel NEMA 4 / IP65 front protection NEMA 4 / IP65 front protection NAP-F17 HNAP-F17 Aluminum front cover...
- Page 31 Intentionally Left Blank UM-UV-621-F17-Q119V1 www.austin-hughes.com...
- Page 32 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2019 Austin Hughes Electronics Ltd. All rights reserved. UM-UV-621-F17-Q119V1 P.28...
