Marantz CC-4000 OSE Specification Sheet

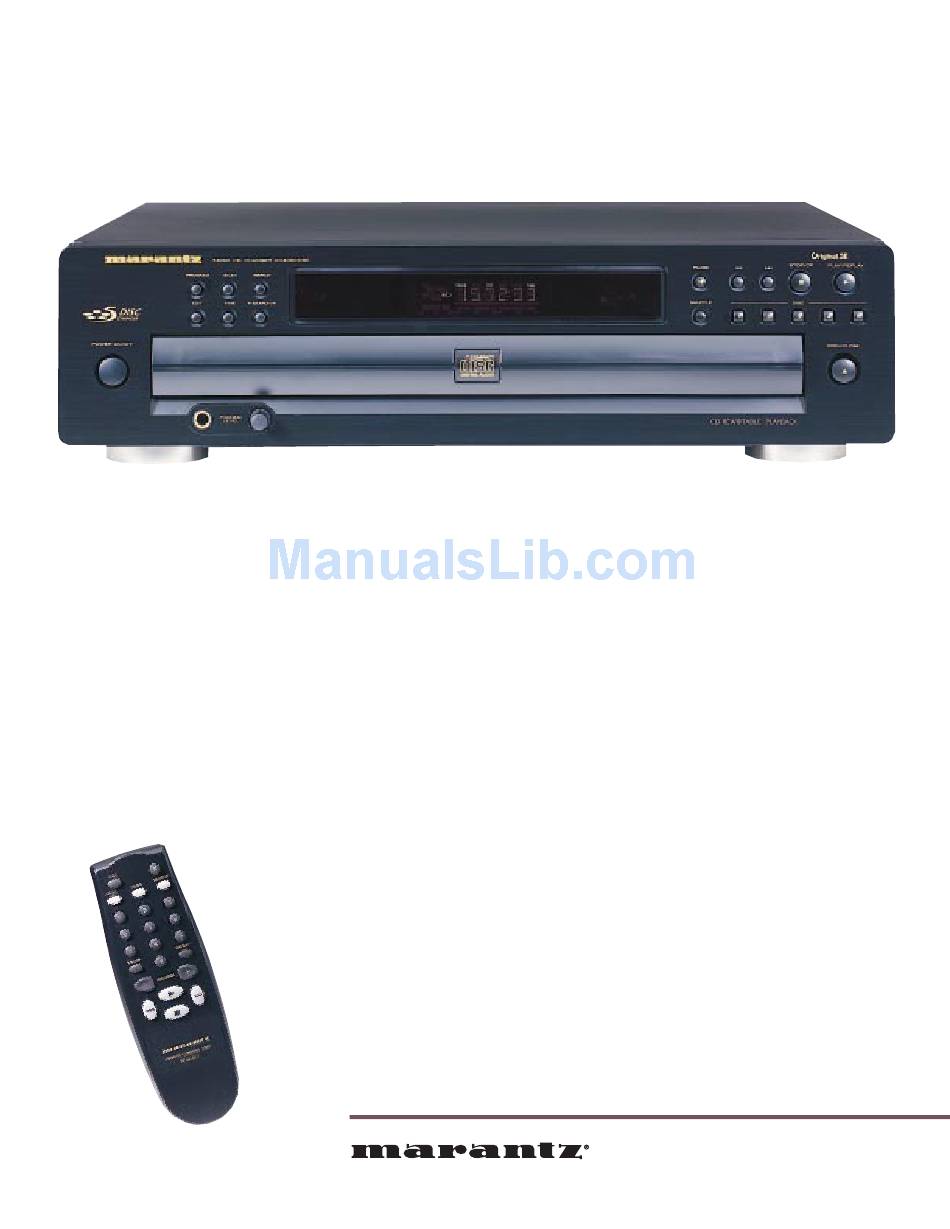

Marantz CC-4000 OSE 5-Disc Carousel CD Changer:
Audiophile Performance and Multi-Play Convenience
Specifications
Audio System
Frequency range 20 Hz - 20 kHz
≤ 3 dB (1 kHz, -90 dB)
Amplitude non-linearity
Dynamic range >90 dB (1 kHz)
Signal to noise ratio >95 dB (1 kHz)
Channel separation >95 dB (1 kHz)
≤ 1 dB (1 kHz)
Channel balance
Total harmonic distortion 0.004% (1 kHz)
Audio output level 2 Vrms, ± 2 dB, 1 kΩ
Impedance phones socket (6.5mm)
(4.5 V e.m.f. from 120 Ω)
Digital coaxial output 75Ω acc IEC 958
General
Power requirements 120 V, 60 Hz, 12 W
Dimensions W/H/D 17 3 ⁄ " x 4
8
440mm x 119mm x 380mm
Weight 16.4 lbs. 7.4 kg.
All specifications are subject to change without notice.
© 1999 Marantz America, Inc.
The Marantz CC-4000 OSE sets a new standard in CD changer performance and flexibility,
offering true audiophile-quality CD playback along with a host of convenience features.
The CC-4000 OSE incorporates many design and engineering refinements to deliver sonic
performance rivaling that of premium single-disc players, and provides hours of continuous
musical enjoyment.
CC-4000 OSE Features:
Leading-edge optics, mechanism and digital circuitry including a Philips full-floating
30 - 600 Ω
laser mechanism and digital servo control, a Bitcheck Continuous Calibration D/A
converter and a precision engineered output buffer, for ultra-precise disc tracking and
exceptionally accurate reconstruction of the musical signal.
Quick Logic bi-directional carousel mechanism accesses discs in the shortest possible
3 ⁄ " x 15"
4
time, and allows up to three discs at a time to be exchanged while another disc is playing.
Marantz Original Special Edition parts and construction for ultimate sound quality,
including audiophile-grade capacitors in critical signal path applications, strengthened
mechanical construction and heavy bottom plate to dampen internal vibration and
mechanically-induced jitter, extensive internal shielding and other refinements.
D-BUS remote connection allows linkage to other Marantz components for integrated
system operation. Full remote control operation is also provided.
CD-RW playback capability–until now, CD-RW rewritable discs could only be played
back on specialized CD-RW-capable recording decks.
Full complement of programming and play modes and convenience features
including a variety of random play, repeat and shuffle options, peak level search, music
scan, 40-track programming, headphone jack with level control and more.
Edit mode automatically fits the tracks on a CD to accommodate the length of a cassette
or recordable CD.
Coaxial digital output enables use with outboard D/A converters, or connection to the
digital input of a CD-R deck, A/V receiver or preamp/processor.
Marantz America, Inc.
Phone 630-307-3100 • Fax 630-307-2687 • www.marantz.com
440 Medinah Road Roselle, IL 60172
