Marantz CC4001 Service Manual
5 disc cd changer
Hide thumbs
Also See for CC4001:
- User manual (24 pages) ,
- Specification (14 pages) ,
- Brochure & specs (19 pages)
Table of Contents
Advertisement
Service
Manual
1
2
STANDBY
POWER
ON/STANDBY
SECTION
1. TECH NI CAL SPEC I FI CA TIONS ........................................................................................... 1
2. SERVICE HINTS AND TOOLS ............................................................................................. 2
3. WARNING AND LASER SAFETY IN STRUC TIONS ............................................................. 3
4. CAUTION .............................................................................................................................. 4
5. TAKING THE DISC OUT OF EMERGENCY ........................................................................ 6
6. SERVICE MODE ................................................................................................................... 7
7. UPDATE DSP FIRMWARE PROCEDURE (U3) ................................................................... 8
8. WIRING DIAGRAM ............................................................................................................... 9
9. BLOCK DIAGRAM .............................................................................................................. 11
10. SCHEMATIC DIAGRAM ...................................................................................................... 13
11. PARTS LOCATION .............................................................................................................. 19
12. EXPLODED VIEW AND PARTS LIST ................................................................................. 27
13. MICROPROCESSOR AND IC DATA ................................................................................... 31
14. ELECTRICAL PARTS LIST ................................................................................................. 43
15. ABOUT REPLACE THE MICROPROCESSOR WITH A NEW ONE ................................... 55
Please use this service manual with referring to the user guide ( D.F.U. ) without fail.
5 DISC CD CHANGER CC4001
1
MP3 CD
PROGRAM
2
R
3
4
5
DISC SKIP
TRACK
3
DISC
4
5
TABLE OF CONTENTS
CC4001
5 Disc CD Changer
OPEN/CLOSE
RANDOM REPEAT 1DISC
REPEAT
RANDOM
MIN
SEC
1
2
3
4
5
6
7
8
9
10
TOTAL
EACH
11
12
13
14
15
REMAIN
16
17
18
19
20
CC4001 /
F B/N1B/U1B
PLAY
STOP
PAUSE
LEVEL
PHONES
PAGE
Part no. 90M08CW855010
First Issue 2006.06
MZ
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Marantz CC4001
Summary of Contents for Marantz CC4001
-

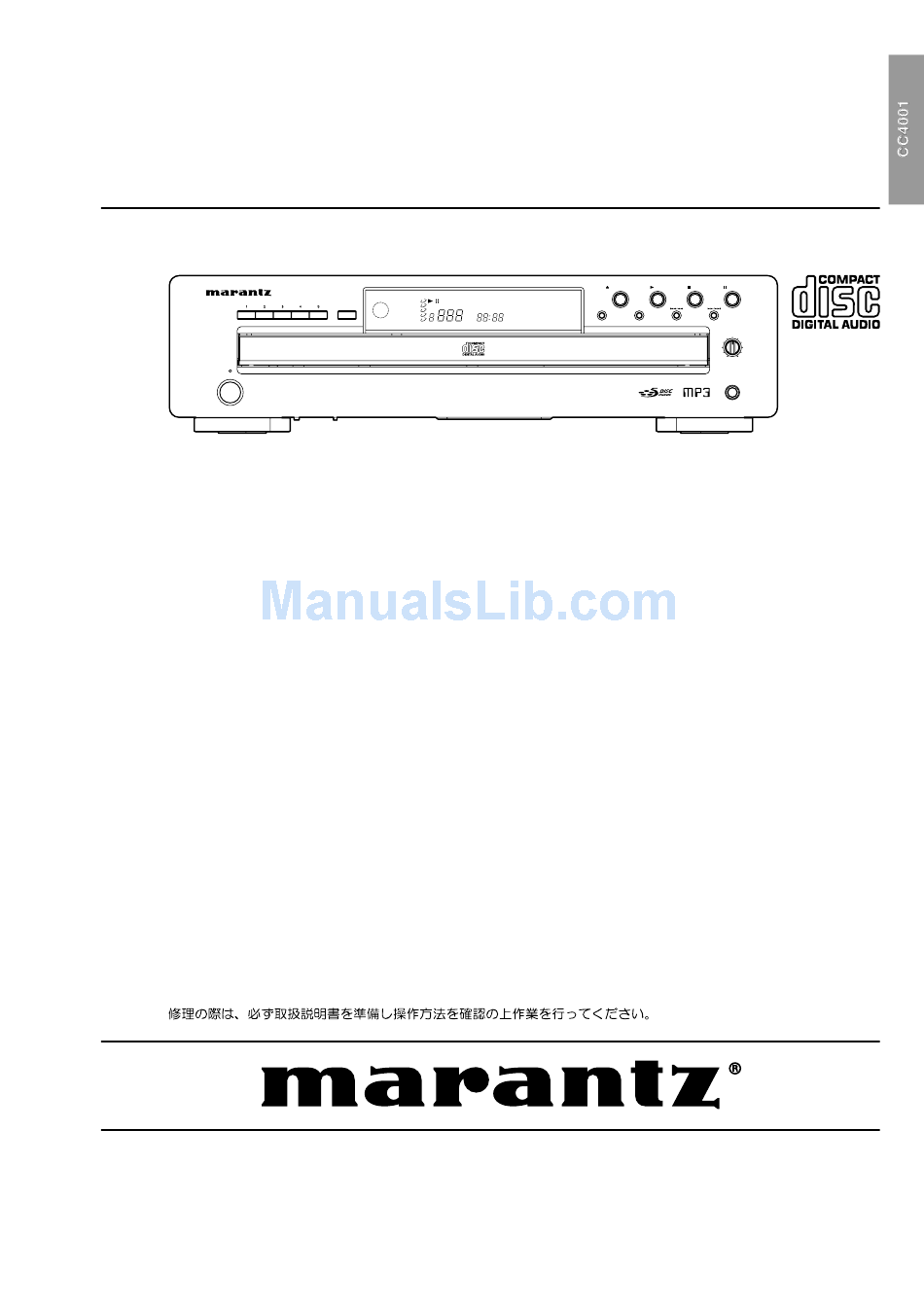

Page 1: Table Of Contents
Service CC4001 / F B/N1B/U1B Manual 5 Disc CD Changer OPEN/CLOSE PLAY STOP PAUSE 5 DISC CD CHANGER CC4001 MP3 CD PROGRAM RANDOM REPEAT 1DISC DISC SKIP TRACK REPEAT RANDOM DISC TOTAL EACH REMAIN LEVEL STANDBY POWER ON/STANDBY PHONES TABLE OF CONTENTS... - Page 2 MARANTZ Parts for your equipment are generally available to our National Marantz Subsidiary or Agent. ORDERING PARTS : Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specifi ed.
-
Page 3: Technical Specifications
• Audio cable .......................1 pairs • Remote connection Cable ....................1 • User’s Guide ........................1 Dimensions Unit : inch (mm) 17-5/16 (440) OPEN/CLOSE PLAY STOP PAUSE 5 DISC CD CHANGER CC4001 MP3 CD PROGRAM RANDOM REPEAT 1DISC DISC SKIP TRACK REPEAT RANDOM DISC TOTAL EACH... -
Page 4: Service Hints And Tools
2. SERVICE HINTS AND TOOLS SERVICE HINTS SERVICE TOOLS Audio signals disc 4822 397 30184 Disc without errors (SBC444)+ Disc with DO errors, black spots and fingerprints (SBC444A) 4822 397 30245 Disc (65 min 1kHz) without no pause 4822 397 30155 Max. -
Page 5: Warning And Laser Safety Instructions
3. WARNING AND LASER SAFETY INSTRUCTIONS WARNING WAARSCHUWING All ICs and many other semi-conductors are Alle IC’s en vele andere halfgeleiders zijn susceptible to electrostatic discharges (ESD). gevoelig voor elektrostatische ontladingen Careless handling during repair can reduce (ESD). life drastically. Onzorgvuldig behandelen tijdens reparatie When repairing, make sure that you are kan de levensduur drastisch doen... -
Page 6: Caution
4. CAUTION Do not forcibly close the CD door when the power is off. OPEN/CLOSE PLAY STOP PAUSE 5 DISC CD CHANGER CC4001 MP 3 C D PROGRAM RANDO M R EPEA T 1 DISC DISC SKIP TRAC K REPEAT... - Page 7 3-1. Please be aware of wearing an anti-static ring before repairing. 3-2. It is forbiddance to adjust the laser pick up VR. レーザーピックアップボリュームは、調整禁止です。 3-3. To protect the mechanism (CD PICK UP); Always short the Anti-static protection welding point before removing the mechanism. 輸送用ネジ取り外しに関する注意...
-
Page 8: Taking The Disc Out Of Emergency
5. TAKING THE DISC OUT OF EMERGENCY Move the (A) portion (Screw Head) in the direction of an 細い棒等で 部（ネジの頭）を矢印（ ）の方向に動かします。 arrow (B) at a thin lot. 注意： 部を動かすとき、セットを反転または立てないでくだ Caution : When turning the (A) portion, Please do not turn さい。ディスクが損傷する恐れがあります。... -
Page 9: Service Mode
6. SERVICE モード 6. SERVICE MODE 1. Microprocessor Version check Microprocessor VERSION 確認 1) Press the POWER ON/STANBY button to turn on the 1) POWER ON/STANDBY ボタンを押し本体の電源を入れま unit.. す。 2) Press 1 (Disc Select) and DISC SKIP button. フロントパネルの （ディスクセレクト）ボタンと DISC Microprocessor (IC110) version is displayed on FLD. -
Page 10: Update Dsp Firmware Procedure (U3)
7. UPDATE DSP FIRMWARE PROCEDURE (U3) Necessary Equipment 必要機器 Update disc (90M-CC4001CDR) or update data Update disc (90M-CC4001CDR) または update data (cc4001xx.hex) (cc4001xx.hex) NOTICE : The xx of update data filename is firmware 注意）アップデートデータのファイル名にある はファーム ウェアのバージョンです。 version. ファームウェアのアップデートにかかる時間はおよそ 秒で The writing of firmware takes about 15 seconds. す。... -
Page 11: Wiring Diagram
8. WIRING DIAGRAM... -
Page 12: Block Diagram
9. BLOCK DIAGRAM SERVO (MAIN) PWB CONTROL PWB FLASHER IN RPM6936 POWER KEY RPM6936 SIR -34ST3 F IR SENSOR REMOTE I/O LOADER STANDBY IND. KEYS LOADING TURNTABLE R S232 SP232A IR SEL. RS232 I/F SM8958A SWITCHES µ-P UPD16311 LA6531 VFD DRIVER DRIVER DRIVE UNIT BUFFER (DSP) PWB... -
Page 13: Schematic Diagram
10. SCHEMATIC DIAGRAM C157 SERVO (MAIN) PWB C142 C158 L105 IC104 STB5V MD102 1/50 1/50 DOUT JK102 C156 OPTICAL C155 L106 R225 T1OUT 1/50 C159 10uH C143 R1IN 1/50 OC-0805T R1OUT DIG. OUT C160 RS232 R226 T1IN R165 1/50 C140 JK104 T2OUT T2IN... - Page 14 BUFFER (DSP) PWB J01 HEADER 13X2 BKPT /CS1 4.7K DSCLK U3 M29W800B or AM29LV160DB TP24 TP22 TP20 TP18 /RST TP23 TP21 TP19 TP17 TP16 TP15 BYTE 4.7K PST3 PST1 DQ15 DDATA3 DDATA2 DDATA1 DQ14 DDATA0 RB01 10KX7 DQ13 SCL/QSPI_CLK PST0/GPIO59 DQ12 PST2/GPIO61 PAD-VDD...
- Page 15 CONTROL PWB VFD401 D404 W01A 1SS132 SW401 SW402 SW403 SW404 -27V IC401 OP/CL PLAY STOP PAUSE D403 GRID5 SEG12 1SS132 SW405 SW406 SW407 SW408 GRID4 SEG11 REPEAT B.SKIP F,SKIP RANDOM GRID3 SEG10 CN108A GRID2 SEG9 C403 D402 GRID1 SEG8 10/35 UPD16311S SEG7 -27V...
-
Page 16: Parts Location
11. PARTS LOCATION SERVO (MAIN) A PWB (405-4001-1683 ) IC104 IC107 Q107 IC105 IC07 IC108 IC106... - Page 17 SERVO (MAIN) B PWB (405-4001-1683 ) IC111 Q109 Q108 Q110 Q104 Q106 Q103 Q105 IC110 IC109 Q102 IC101 Q101 Q04 Q02 IC112 Q03 Q01 IC102 IC103 Q111 P271 鉛フリー半田 鉛フリー半田 半田付けには、鉛フリー半田 (Sn-Ag-Cu) を使用してください。 Lead-free Solder When soldering, use the Lead-free Solder (Sn-Ag-Cu).
- Page 18 CONTROL PWB A (405-4001-1688) CONTROL PWB B (405-4001-1688) IC401 PHONES PWB B (405-4001-1687) SW PWB B (405-4001-1689) Q301 Q303 PHONES PWB A (405-4001-1687) SW PWB A (405-4001-1689) Q401 IC301 Q302 Q304 VR PWB A (405-4001-1686) VR PWB B (405-4001-1686) 鉛フリー半田 鉛フリー半田...
- Page 19 POWER PWB (405-4001-1685) IC03 IC04 IC02 BUFFER A PWB (405-4001-1684) IC06 IC01 Bottom View Q05 IC05 Q06 Q07 BUFFER B PWB (405-4001-1684) Top View U1 U3 鉛フリー半田 鉛フリー半田 半田付けには、鉛フリー半田 (Sn-Ag-Cu) を使用してください。 Lead-free Solder When soldering, use the Lead-free Solder (Sn-Ag-Cu).
-
Page 20: Exploded View And Parts List
12. EXPLODED VIEW AND PARTS LIST... - Page 21 SWITCH CONTROL 100-KMD280-730 CHASSIS BOTTOM BASE 100-KMD550-1213A HOLDER DISK HOLDER 100-KMD550-1219 BRACKET L. FIXED PLATE 300-KMDV280C-263A BRACKET R. FIXED PLATE 300-KMDV280C-264A BRACKET STAY R 300-KMD280-265RA NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
- Page 22 POLYFOAM R 506-4001-450R 00M08CW257010 LID TOP COVER 300-4001-504B 90M-ZD000570R CONN. CORD 2P CINCH CORD L=1M AUDIO 408-CDN34A-028 90M-ZD000580R CONN. CORD CINCH CORD L=1M ORANGE 408-4001-066 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
-
Page 23: Microprocessor And Ic Data
13. MICROPROCESSOR AND IC DATA IC01 : 417-CDN34A-314 BA05T REFFERENCE − VOLTAGE ＋ ＋ IC02 : 417-HMD5000-282 BA08T REFFERENCE VOLTAGE IC03 : 417-HV3500K-253 BA033T Level Voltage... - Page 24 IC101 : 417-DCM280-588 CXA-2581N RFAC EQ_ON/OFF RW/ROM DC_OF RFDCI RFDCO RW/ROM VOFST RW/ROM TE_BAL RW/ROM VOFST RW/ROM VOFST RW/ROM RW/ROM APC-OFF (Hi-Z) RW/ROM VOFST (H/L)
- Page 25 IC102 : 417-DCM280-587 CXD3068Q 71 72 59 60 11 13 68 65 66 TES1 TEST FSTO Clock Error XRST Generator Corrector demodurator RFAC Interface ASYI Asymmetry ASYO Corrector ASYE Digital BIAS DOUT XPCK Sub Code FILO Processor Digital FILI CLTV Digital LOCK PWMI...
- Page 26 IC103 : 417-HDJ2450-693C SM8951/SM8952A Decoder & 128/256 Stack Timer 2 Timer 1 Timer 0 Pointer Register bytes RAM Buffer to pertinent blocks Reset DPTR Circuit to whole chip Power Incrementer Circuit Buffer2 Buffer1 to pertinent blocks Program Interrupt Counter Circuit Register XTAL2 XTAL1...
- Page 27 IC105 : 417-DCM280-596 BA5979S PreV MUTE INTER- FACE LEVEL SHIFT THERMAL Vref SHUTDOWN INTER- FACE REGULATOR T. S. D MONITOR INTER- FACE IC106 : 417-KC220-045 IC(LA6531-E,DIP16F) 10 kΩ 10 kΩ Buffer Buffer IN Buffer OUT OUT1 OUT4 8 Ω 8 Ω 22 kΩ...
- Page 28 IC109 : IC111 : 417-DCM370E3-378 417-HDJ2000-503 74HC04 BD4745G VOUT Vref MNA342 IC110 : 1 44 43 42 41 40 P0.4/AD4 SPWM2/P1.5 P0.5/AD5 SPWM3/P1.6 P0.6/AD6 SM8958A SPWM4/P1.7 P0.7/AD7 ihhJ RXD/P3.0 P4.1 P4.3 44L PLCC TXD/P3.1 #PSEN #INT0/P3.2 (Top View) P2.7/A15 #INT1/P3.3 T0/P3.4 P2.6/A14 T1/P3.5...
- Page 29 IC112 : CS4392 (SDA/CDIN) (SCL/CCLK) (AD0/CS) AMUTEC BMUTEC CMOUT FILT+ MODE SELECT EXTERNAL REFERENCE (CONTROL PORT) MUTE CONTROL VOLUME AOUTA+ ΔΣ ANALOG CONTROL INTERPOLATION FILTER FILTER AOUTA- SCLK SERIAL MIXER PORT LRCK AOUTB+ ANALOG ΔΣ INTERPOLATION FILTER VOLUME FILTER AOUTB- CONTROL SDATA MCLK...
- Page 30 IC401 : Dimming Command decoder circuit Display memory Serial I/F 20 bit × 16 Word /Grid Timing generator key scan /Grid Key data memory (4 × 12) Grid Grid 5-bit latch (+5 V) (0 V) (−30 V) 39 Grid 38 Grid 37 Grid 36 Seg /Grid...
- Page 31 U1 : Standard ColdFire Peripheral Blocks 417-MCDS4-736 IC(SCF5249LPV120.SMD) Debug Module w/ Timer Timer JTAG Support Interface UART Dual Interface UART Instruction 5x08 Cache Interrupt oldFire V2 Core 5x08 Arbiter (160 BGA Interface SRAM1 (S)DRAM (144 QFP External SRAM SRAM0 120 MHz) BufEn_b1 BufEn_b2 IDE-DIOR...
- Page 32 U1 : Name Type Description Name Type Description 49 DATA19 I/O data 98 RW_B Bus write enable 50 QSPI_CS2/ I/O QSPI chip select 2 99 TMS/BKPT JTAG/debug GPIO21 100 CORE-GND CORE-GND 51 DATA20 I/O data 101 TCK JTAG 52 DATA22 I/O data 102 PAD-GND PAD-GND...
- Page 33 U3 : M29W800B V CC A0-A18 DQ0-DQ14 DQ15A–1 M29W800T BYTE M29W800B V SS U7 : 417-MCDS4-737 IC(BA18BCOFP-E2,SMD) REFFERENCE − VOLTAGE ＋ ＋ BA18BCO (1) (2) (3)
- Page 34 U8 : 417-MCDS4-738 IC(XC9536XL-10VQ44C,SMD) JTAG In-System Programming Controller JTAG Port Controller Function Block 1 Macrocells 1 to 18 Function Block 2 Macrocells 1 to 18 Blocks I/O/GCK I/O/GSR I/O/GTS...
-
Page 35: Electrical Parts List
14. ELECTRICAL PARTS LIST NOTE ON SAFETY FOR FUSIBLE RESISTOR : PARTS INFORMATION The suppliers and their type numbers of fusible resistors RESISTORS 1) 00MGD05 × × × 140, Carbon fi lm fi xed resistor, ±5% 1/4W are as follows; 2) 00MGD05 ×... - Page 36 CUSHION FOR SENSOR 612-DCM370-071 CTRL WASHER VFD WASHER 612-HV3700K-059 CTRL C101 00D9410024606 CER. CAP. CHIP (0.1UF/ 50V,Z,Y5V) 413-DV330-313 CTRL C102 00D9410024606 CER. CAP. CHIP (0.1UF/ 50V,Z,Y5V) 413-DV330-313 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
- Page 37 00D9580018403 PHOTO UNIT INFRARED EMITTING (LTE-4206C) 410-DCM270X-132 INFRA RES. CARBON (1K OHM,1/6W,J,T-26) 412-3113-078 PHOTO TRANSISTOR PWB ASSY PH TRS. 00D9580018209 00D9580018209 PHOTO UNIT PHOTO TRS. (LTR-301) 416-DCM270X-120 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
- Page 38 413-3113-035 POWER 00MOA10701020 ELECT CAP. 100UF/10V,M,5*11 413-3113-046 POWER CER. CAP. CERAMIC (0.1UF/50V,Z,Y5V) 413-3113-035 POWER 00MOA10701020 ELECT CAP. 100UF/10V,M,5*11 413-3113-046 POWER 00MOA22701620 ELECT CAP. 220UF/16V,M,6.3*11 413-KT300-102 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
- Page 39 RLY01 90M-LY000420R 90M-LY000420R RELAY ! RELAY 415-4001-276 POWER TX02 90M-TS002720R TRANSF. # TRANSFORMER (AC100V) 411-4001-534 POWER TX02 /N1B 90M-TS002750R 90M-TS002750R TRANSF. # TRANSFORMER (AC230V) 411-4001-545 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
- Page 40 00MEJ10505010 ELECT CAP. 1UF/50V,M,4*7,MINI 413-SPPW3-234 SERVO C160 00MEJ10505010 ELECT CAP. 1UF/50V,M,4*7,MINI 413-SPPW3-234 SERVO C161 00MEJ22505010 ELECT CAP. 2.2UF/50V,M,4*7,MINI 413-DV300-5156 SERVO C162 00MEJ47601610 ELECT CAP. 47UF/16V,M,5*7,SS 413-CDVD2001-265 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
- Page 41 12P 1.0 FFC CONN. (52207-1285) 404-4001-2235 SERVO CN108 90M-YJ003050R 90M-YJ003050R CONN. 14P 1.0 FFC CONN. (52207-1485) 404-EFX2-1860 SERVO CN109 90M-YJ003040R 90M-YJ003040R CONN. 5P 1.0 FFC CONN. (52207-0585) 404-900-2090 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
- Page 42 CHIP (0 OHM,1/8W,1206,J,TP,150V) 412-DJ3000-414 SERVO J140 00D9410025320 00D9410025320 CHIP RES. CHIP (0 OHM,1/8W,1206,J,TP,150V) 412-DJ3000-414 SERVO J141 00D9410025320 00D9410025320 CHIP RES. CHIP (0 OHM,1/8W,1206,J,TP,150V) 412-DJ3000-414 SERVO CORD JUMPER 406-3113-175 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
- Page 43 SERVO CORD JUMPER 406-3113-175 SERVO 00D9410025320 00D9410025320 CHIP RES. CHIP (0 OHM,1/8W,1206,J,TP,150V) 412-DJ3000-414 SERVO CORD JUMPER 406-3113-175 SERVO CORD JUMPER 406-3113-175 SERVO CORD JUMPER 406-3113-175 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
- Page 44 00MNN05103610 CHIP RES. CHIP (10K OHM,1/10W,J,TP,50V) 412-CDVD2001-534 SERVO R120 00MNN05824610 CHIP RES. CHIP (820K OHM,1/10W,J,TP,50V) 412-007USB-708 SERVO R121 00MNN05103610 CHIP RES. CHIP (10K OHM,1/10W,J,TP,50V) 412-CDVD2001-534 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
- Page 45 00MNN05101610 CHIP RES. CHIP (100 OHM,1/10W,J,TP,50V) 412-CDVD2001-530 SERVO R193 00MNN05101610 CHIP RES. CHIP (100 OHM,1/10W,J,TP,50V) 412-CDVD2001-530 SERVO R194 00MNN05101610 CHIP RES. CHIP (100 OHM,1/10W,J,TP,50V) 412-CDVD2001-530 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
- Page 46 VR PWB ASSY CORD JUMPER (0.6MM,L=5MM,H=10MM) 406-2002-106 CORD JUMPER 406-3113-175 VR301 90M-RM000460R 90M-RM000460R VER. RES. ROTARY VR (10KA) 418-4001-366 W302 CORD 6P 2.0 CONN. WIRE 404-4001-2286 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
-
Page 47: About Replace The Microprocessor With A New One
15. ABOUT REPLACE THE MICROPROCESSOR WITH A NEW ONE When replaced of the U-PRO (Microprocessor) or the Flash ROM, confirm contents of the following. Pos. After Description Remark Name replaced BUFFER M29W800DB70N6Y SERVO IC103 SM8952AC25JP SERVO IC110 SM8958AC25J After replaced A : Mask ROM (With software).
