Marantz CC3000 Specifications

Marantz CC-3000 and CC-4000 Carousel CD
Changers: Outstanding Performance and Value.
CC-3000 and CC-4000
Audio System
Frequency range 20 Hz - 20 kHz
≤ 3 dB (1 kHz, -90 dB)
Amplitude non-linearity
Dynamic range >90 dB (1 kHz)
Singal to noise ratio >95 dB (1 kHz)
Channel separation >95 dB (1 kHz)
≤ 1 dB (1 kHz)
Channel balance
Total harmonic distortion 0.004% (1 kHz)
Audio output level 2 Vrms, ± 2 dB, 1 kΩ
Impedance Phones socket (6.5mm)
(4.5 V e.m.f. from 120 Ω)
Digital coaxial output 75Ω acc IEC 958
General
Power requirements 120 V, 60 Hz, 12 W
Dimensions W/H/D 17 3 ⁄
8
440mm x 119mm x 380mm
Weight 13.3 lbs. 6.0 kg.
All specifications are subject to change without notice.
© 1999 Marantz America, Inc.

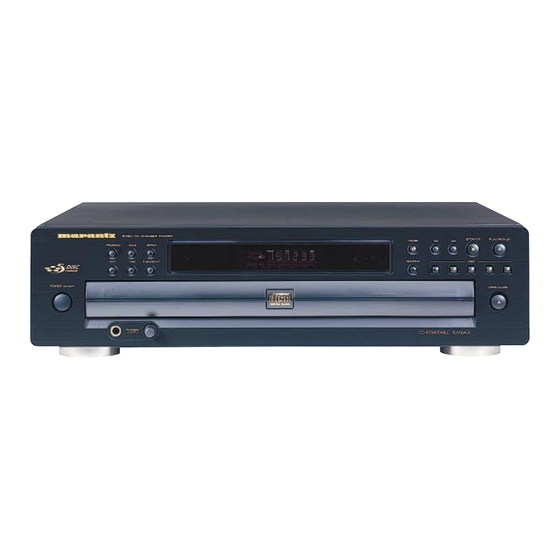

The Marantz CC-3000 and CC-4000 5-disc CD changers combine outstanding CD playback
quality and exceptional value. Both models incorporate identical components and features
found in high-end Marantz models, for richly detailed, musically involving CD sound
quality. The CC-3000 includes all the features of the CC-4000 with the exception of a
headphone jack with level control.
CC-3000 and CC-4000 Features:
Precision optics, mechanism and digital circuitry including the Philips full-floating
laser mechanism and digital servo control. A Bitcheck Continuous Calibration D/A
converter (CC-4000 only) is used for ultra-precise disc tracking and exceptionally accurate
reconstruction of the musical signal.
Quick Logic bi-directional carousel mechanism accesses discs in the shortest possible
30 - 600 Ω
time, and allows up to three discs at a time to be exchanged while another disc is playing.
D-BUS remote connection allows linkage to other Marantz components for integrated
system operation. Full remote control operation is also provided.
" x 4 3 ⁄ " x 15"
4
CD-RW playback capability-until now, CD-RW rewritable discs could only be played
back on specialized CD-RW-capable recording decks.
Full complement of programming and play modes and convenience features
including a variety of random play, repeat and shuffle options, peak level search, music
scan, 40-track programming, headphone jack with level control (CC-4000 only) and more.
Marantz America, Inc.
Phone 630-307-3100 • Fax 630-307-2687 • www.marantz.com
Edit mode automatically fits the tracks on a CD
to accommodate the length of a cassette or
recordable CD.
Coaxial digital output enables use with
outboard D/A converters, or connection to the
digital input of an A/V receiver or
preamp/processor.
Fade-in and Fade-Out Capability.
440 Medinah Road Roselle, IL 60172
