Mounting and Orientation

Installation into the slot on a video camera places the antennas in an optimal
vertical position away from the camera body.

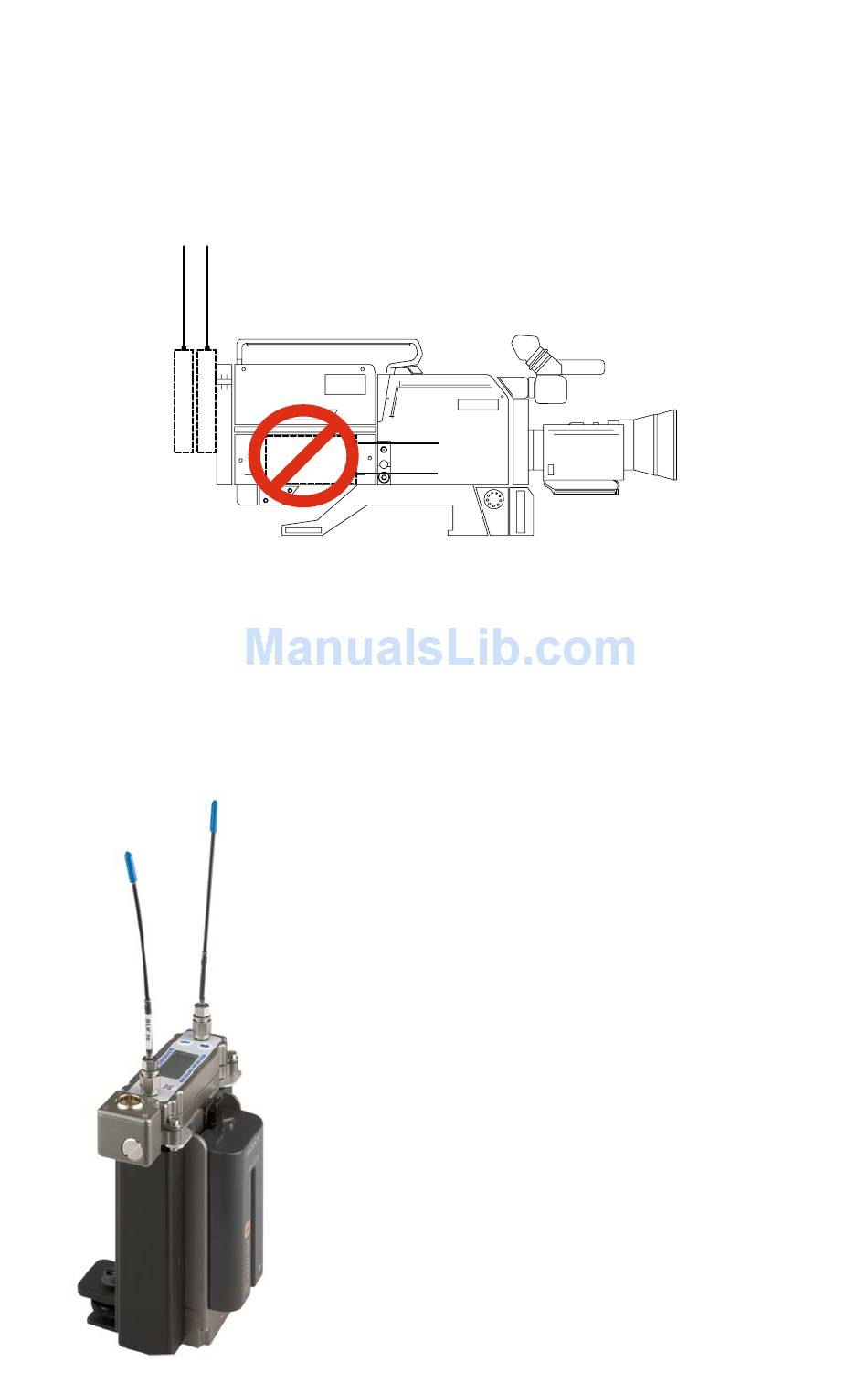

When used with non-slot cameras, as depicted in the diagram below, one or
two receivers can be positioned in a variety of locations around the camera
body using the Velcro and SRaSLEEVE mounting options.
Mounting the receiver horizontally on the side of a camera can seriously
reduce the operating range of the wireless system.
For maximum operating range, the antennas should be vertical and above
the camera body. While it may be convenient, mounting the receiver horizon-
tally on the side of the camera can seriously reduce the operating range of
the wireless system.
www.lectrosonics.com
The receiver provides stand-alone operation
with the battery sled adapter and mounting
sleeve. (optional) It can be mounted in any
position with Velcro, or in horizontal and vertical
positions using the mounting foot
.
