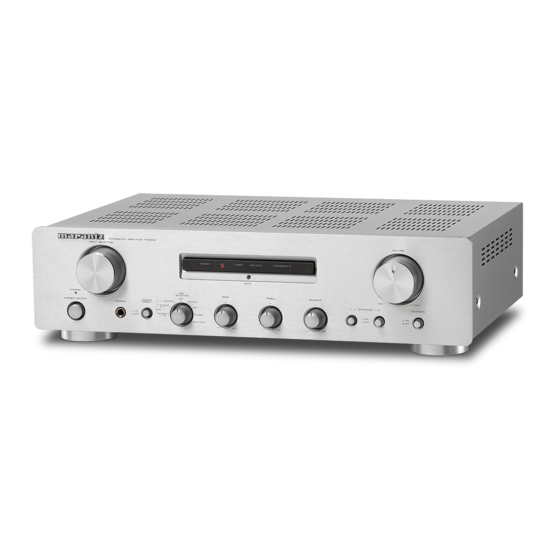

Model PM6002 User Guide
Integrated Amplifi er

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PM6002 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Marantz PM6002

Summary of Contents for Marantz PM6002

  • Page 1 Model PM6002 User Guide Integrated Amplifi er...
  • Page 2 Marantz. como referencia cuando tenga que hacer uso del VIKTIGT seguro o se ponga en contacto con Marantz. Fö att garantin skall gälla är det kundens sak att IMPORTANTE framställa bevis och datum om köpet. Kvitto eller Cuando solicite el servicio otorgado por la garantia faktura är tillräokligt bevis fö...
  • Page 3 - Do not expose the equipment to rain or moisture. English - Do not remove the cover from the equipment. The PM6002 is in conformity with the EMC directive and low-voltage directive. - Do not insert anything into the equipment through the ventilation holes.
  • Page 4 Español Italiano ADVERTENCIAS - No exponga el equipo a la lluvia ni a la humedad. - Non esporre l’apparecchio alla pioggia o all’umidità. - No extraiga la tapa del equipo. - Non rimuovere il coperchio dell’apparecchio. - No introduzca nada en el interior del equipo a través de los orifi...

  • Page 5: Table Of Contents

    INTRODUCTION Thank you for selecting the Marantz PM6002 Integrated amplifier for your Audio system. Please read these operating instructions carefully. We recommend that you read the entire user guide before you attempt to connect or operate the amplifier. After you have reviewed the contents of this manual,we suggest that you make all system connections before you attempt to operate the unit.

  • Page 6: Features

    — Performers Protection Acts 1963 and 1972 — Any subsequent statutory enactments and 7 Keep objects off orders Keep objects off the PM6002. Blocking the vent can result in accident and damage. 7 Do not locate in the following places...
  • Page 7 BEFORE USE 7 For use of Remote controller 7 Cautions on handling batteries Misuse of the batteries can result in electrolyte • Loading batteries leakage, rupturing, corrosion, etc. Before using the remote controller for the first time, Bear in mind the following points when using load the batteries in the remote controller.

  • Page 8: Names And Functions Of Parts

    NAMES AND FUNCTIONS OF PARTS FRONT PANEL q POWER SWITCH r SOURCE DIRECT SWITCH Pressing once switches the power ON, and pressing again switches it OFF. If the POWER switch is in the ON position, the power of this unit can be turned ON/OFF by pressing the POWER button on the remote controller.

  • Page 9: Rear Panel

    OHMS OHMS SYSTEM2 SYSTEM2 REMOTE REMOTE AC IN AC IN CONTROL CONTROL MODEL NO. PM6002 MODEL NO. PM6002 IN IN SYSTEM1 SYSTEM1 SPEAKER SYSTEMS 1 / 2 TERMINALS Connect your speaker system(s) to these terminals. REMOTE CONTROL BUS TERMINALS (REMOTE CONT. BUS)

  • Page 10: Recoder1 Recoder

    PROG. CANCEL x Input selector buttons • Input source Button Turns the PM6002 power on when it is in the These buttons are for directly selecting the standby mode. input source. The AMP button is not used on the PM6002.
  • Page 11 These buttons can only be used when a Marantz These buttons can only be used when a Marantz CD player is connected to the CD input jacks.

  • Page 12: Connections

    CONNECTIONS CONNECTION OF AUDIO COMPONENTS 7 Connection of tuner Connect the output jacks of your stereo tuner to the TUNER jacks of this unit. 7 Connection of compact disc player Connect the output jacks of your CD player to the CD jacks of this unit.

  • Page 13: Wiring Speaker Cable

    Your speaker system must satisfy the below conditions. If it does not, the PM6002’s protective circuit will active, whereby preventing proper playback. In some cases, the amplifier and speakers may be damaged. • If using 1 set of speakers, total speaker impedance must be 4 ohms or more.

  • Page 14: Remote Control Jacks

    • As shown in the illustration below, connect the REMOTE CONTROL “IN” jack of the CD6002 to the REMOTE CONTROL “OUT” jack of the PM6002, and set the CD6002 switch to “EXTERNAL”. • Both the PM6002 and CD6002 can be operated by pointing the remote controller at the receptor of the PM6002.

  • Page 15: Basic Operation

    BASIC OPERATION OPERATION PROCEDURES 7 To listen to FM/AM broadcasts Operate each equipment to start play. 7 To play an analog disc Set the INPUT SELECTOR switch q to TUNER. Set the INPUT SELECTOR switch q to Tune in the desired station on the tuner. PHONO.

  • Page 16: Troubleshooting

    What may seem to be a serious malfunction is often the result of a simple operation mistake. If the trouble persists after checking the following, please contact your dealer or nearest Marantz distributor. * The amplifi er does not operate and the * Remote control operation is not possible.

  • Page 17: Specifications & Dimensional Drawings

    SPECIFICATIONS & DIMENSIONAL DRAWINGS RMS Power output (40 Hz – 20 kHz simultaneous drive of both channels) ...45W x 2 (8Ω load) ...60W x 2 (4Ω load) DIN Power Output (40 Hz – 20 kHz simultaneous drive of both channels) ...50W x 2 (8Ω...
  • Page 18 You can find your nearest authorized distributor or dealer on our website. is a registered trademark. Printed in China 07/2007 00M44CW851310 mzh-d...
