1.2.9

Internal connectors

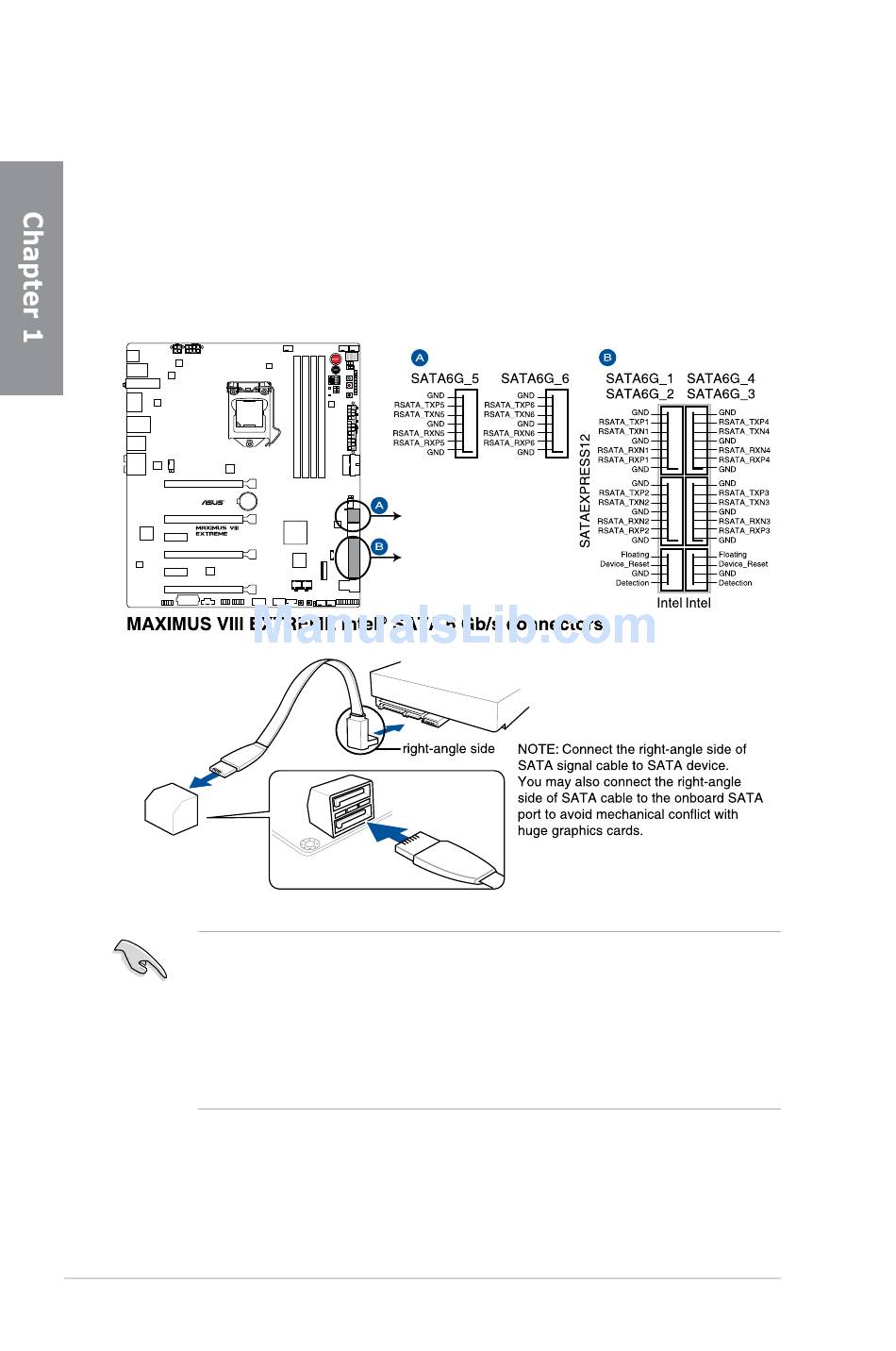

1. Intel Z170 Serial ATA 6 Gb/s and SATA Express connectors (7-pin SATA6G_56;
®
SATAEXPRESS12)
These connectors connect to Serial ATA 6 Gb/s hard disk drives via Serial ATA 6 Gb/s
signal cables.
If you installed Serial ATA hard disk drives, you can create a RAID 0, 1, 5, and 10
configuration with the Intel
Z170 chipset.
•
•
•
1-38
Rapid Storage Technology through the onboard Intel
®
These connectors are set to [AHCI Mode] by default. If you intend to create a Serial
ATA RAID set using these connectors, set the SATA Mode item in the BIOS to [RAID
Mode]. Refer to section SATA Configuration for details.
Before creating a RAID set, refer to section RAID configurations or the manual
bundled in the motherboard support DVD.
When using NCQ, set the SATA Mode in the BIOS to [AHCI Mode]. Refer to section
SATA Configuration for details.
Chapter 1: Product Introduction
®
