Connecting to Optional Audio System (Cont'd)

Enjoying Dolby Pro Logic Surround Sound

Dolby Pro Logic Surround
You can still enjoy the excitement of Surround Sound even if your A/V receiver does not offer Dolby Digital decoding.
If your A/V receiver has a Dolby Pro Logic decoder, refer to the following connection diagram.
Connect one or two rear speakers.
The output sound from the rear speakers
will be monaural even if you connect two
rear speakers.

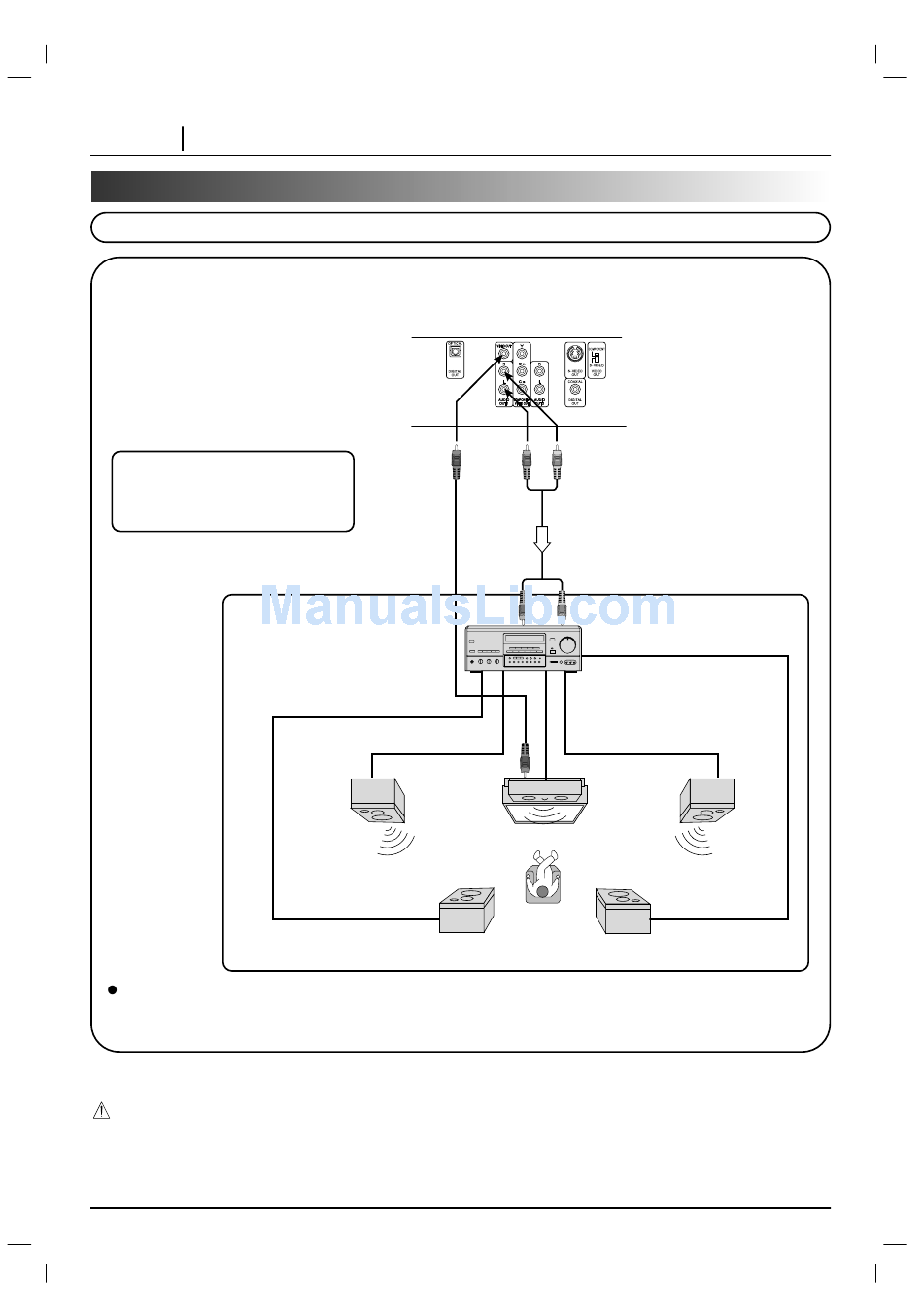

Connection example
With a receiver equipped with Dolby Digital
Connect the equipment the same way as described in "Enjoying Dolby Digital Sound" on the previous page. Refer to that
receiver's owner's manual and set the receiver so you can enjoy Dolby Pro Logic Surround sound.
Warning
Do not set the Digital Audio Output of this DVD player to "Dolby Digital" unless you are connecting the DIGITAL OUT jack of this DVD
player to an AV decoder that has the Dolby Digital decoding function. High volume sound may damage your hearing as well as the
speakers (Refer to "Selecting Digital Audio Output" on page 42).
To VIDEO OUT
Video cable
Receiver equipped
with Dolby Pro
Logic Surround
To video input
Front
speaker
(left)
Rear speaker
(left)
To AUDIO OUT
Audio cable
To audio input
Center speaker
TV
Rear speaker
(right)
Front
speaker
(right)
