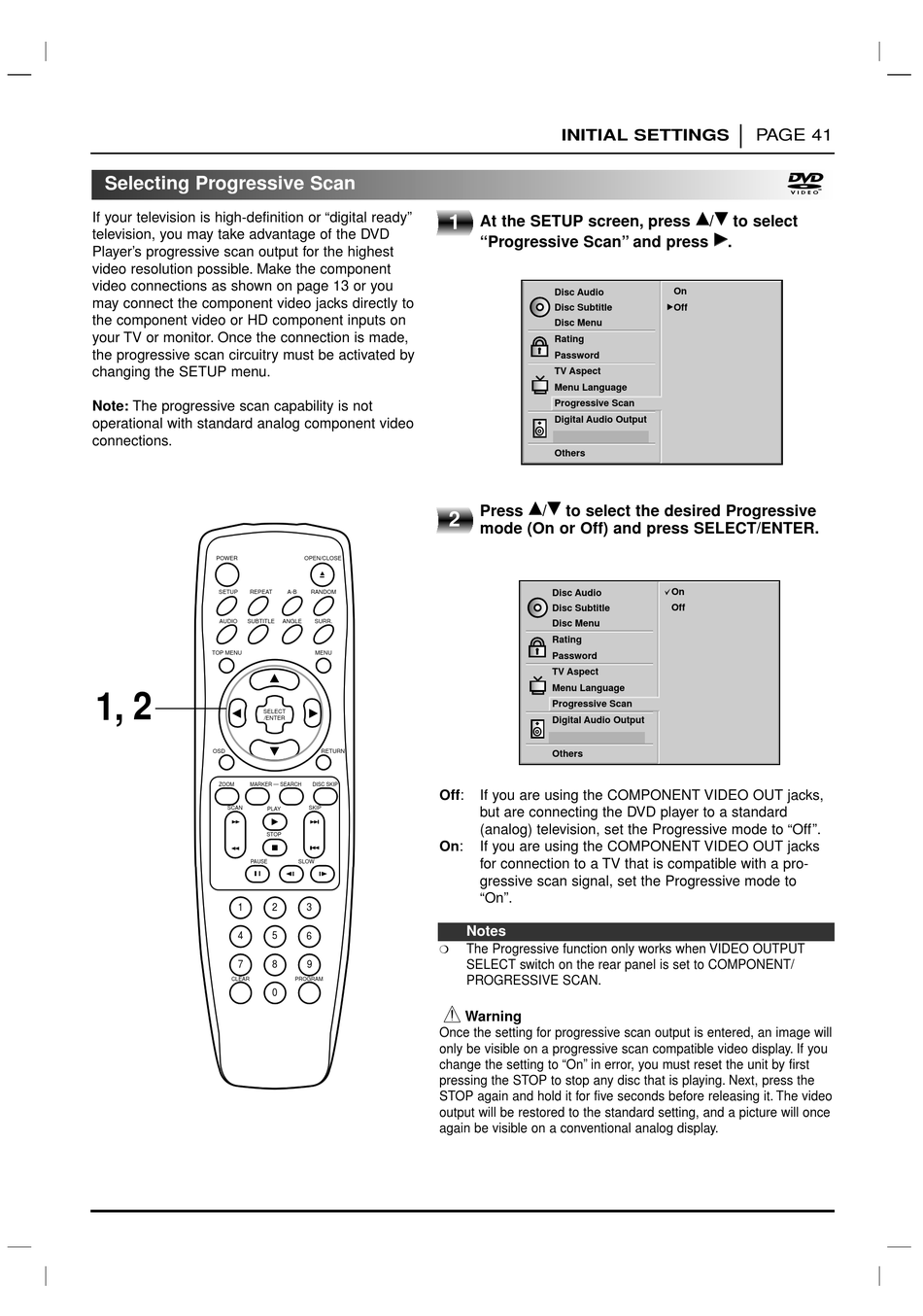

Selecting Progressive Scan

If your television is high-definition or "digital ready"
television, you may take advantage of the DVD
Player's progressive scan output for the highest
video resolution possible. Make the component
video connections as shown on page 13 or you
may connect the component video jacks directly to
the component video or HD component inputs on
your TV or monitor. Once the connection is made,
the progressive scan circuitry must be activated by
changing the SETUP menu.
Note: The progressive scan capability is not
operational with standard analog component video
connections.
POWER
SETUP REPEAT
AUDIO SUBTITLE
TOP MENU
1, 2
SELECT
/ENTER
OSD
ZOOM MARKER — SEARCH
SCAN
STOP
PAUSE
1
4
7
CLEAR
OPEN/CLOSE
A-B RANDOM
ANGLE SURR.
MENU
RETURN
DISC SKIP
Off:
SKIP
PLAY
On:
SLOW
2 3
5 6
8
9
PROGRAM
0
Once the setting for progressive scan output is entered, an image will
only be visible on a progressive scan compatible video display. If you
change the setting to "On" in error, you must reset the unit by first
pressing the STOP to stop any disc that is playing. Next, press the
STOP again and hold it for five seconds before releasing it. The video
output will be restored to the standard setting, and a picture will once
again be visible on a conventional analog display.
INITIAL SETTINGS
1
At the SETUP screen, press
"Progressive Scan" and press
Disc Audio
Disc Subtitle
Disc Menu
Rating
Password
TV Aspect
Menu Language
Progressive Scan
Digital Audio Output
5.1 Speaker Setup
Others
D D E E
Press / to select the desired Progressive
2
mode (On or Off) and press SELECT/ENTER.
Disc Audio
Disc Subtitle
Disc Menu
Rating
Password
TV Aspect
Menu Language
Progressive Scan
Digital Audio Output
5.1 Speaker Setup
Others
If you are using the COMPONENT VIDEO OUT jacks,
but are connecting the DVD player to a standard
(analog) television, set the Progressive mode to "Off".
If you are using the COMPONENT VIDEO OUT jacks
for connection to a TV that is compatible with a pro-
gressive scan signal, set the Progressive mode to
"On".
Notes
The Progressive function only works when VIDEO OUTPUT
SELECT switch on the rear panel is set to COMPONENT/
PROGRESSIVE SCAN.
Warning
PAGE 41
D D E E
/ to select
G G
.
On
Off
On
Off
