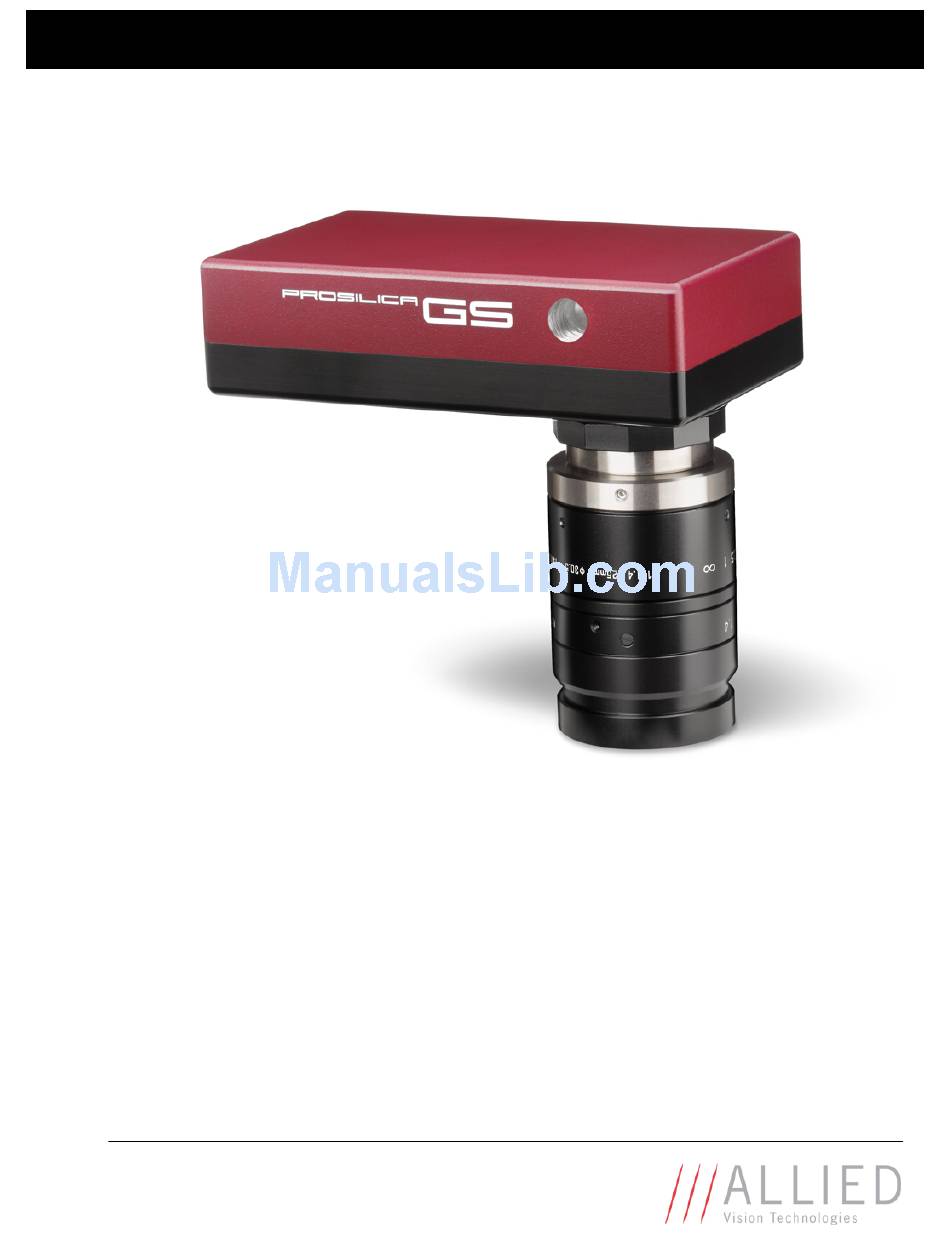

- Page 1 GS650 / GS650C / GS650-P / GS650C-P Technical Manual 700047A Updated September 17, 2010 Allied Vision Technologies Canada Inc. 101-3750 North Fraser Way Burnaby, BC V5J 5E9 / Canada...
-
Page 2: Table Of Contents
Trouble Shooting ..................... 23 Addendum ........................24 GS IO Schematic ....................... 25 Isolated Trigger Schematic ..................26 Non-isolated Trigger Schematic .................. 27 Video Iris Schematic ....................28 Trigger Timing Diagram ..................... 29 Notes on Triggering ....................30 GS650 Technical Manual Page 2... -
Page 3: Legal Notice
Allied Vision Technologies customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Allied Vision Technologies for any damages resulting from such improper use or sale. -
Page 4: Contacting Allied Vision Technologies
Contacting Allied Vision Technologies • Technical information: http://www.alliedvisiontec.com • Support: support@alliedvisiontec.com Allied Vision Technologies GmbH (Headquarters) Taschenweg 2a 07646 Stadtroda, Germany Tel.: +49.36428.677-0 Fax.: +49.36428.677-28 e-mail: info@alliedvisiontec.com Allied Vision Technologies Canada Inc. 101-3750 North Fraser Way Burnaby, BC, V5J 5E9, Canada... -
Page 5: Introduction

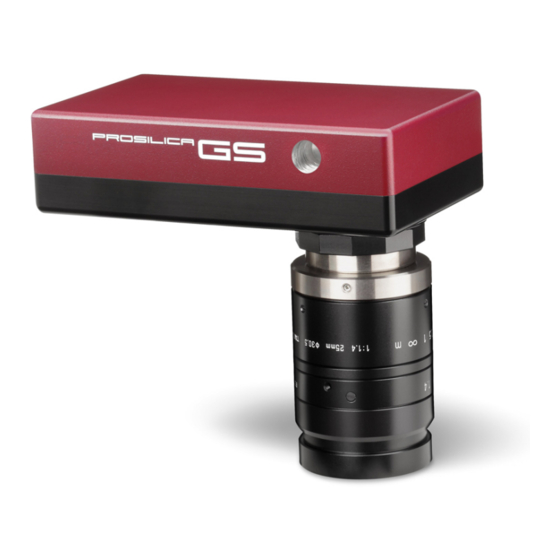

Introduction The GS650 series of cameras are 120 frames per second, VGA, Gigabit Ethernet cameras based on the Sony ICX424AL and ICX424AQ CCD sensors. Precautions READ INSTALLATION GUIDE CAREFULLY. This document contains specific information which is necessary for the correct operation and treatment of this product. -
Page 6: Specifications
MAINTAIN A REASONABLE OPERATING TEMPERATURE. IF THE CAMERA IS TO BE OPERATED IN A WARM ENVIRONMENT, IT IS SUGGESTED THAT THE CAMERA BE MOUNTED ON A HEAT SINK SUCH AS A METAL BRACKET AND THAT THERE IS SUFFICIENT AIR FLOW. GS650 Technical Manual Page 6... -
Page 7: Supported Features
Vertical Binning 1 to 8 rows Pixel Formats Mono8, Mono16*, Bayer8, Bayer 16, RGB24, YUV411, YUV422, YUV444, BGR24, RGBA24, BGRA24 Sync Out Modes trigger ready, trigger input, exposing, readout, imaging, strobe, GPO *On monochrome versions only. GS650 Technical Manual Page 7... -
Page 8: Mechanical
OPTIONS: LANDSCAPE/RIGHT ANGLE CONNECTORS ITEM 1: 3M 10214-55G3PC 1.00 25.4 ITEM 2: HALO HFJ11-1G16E-L12RL ITEM 3: SONY ICX424 1.50 38 INCHES[MILLIMETERS] *Nominal for C mount. Reduce by 5mm for CS mount. Add 0.3mm for color option. GS650 Technical Manual Page 8... - Page 9 OPTIONS: PORTRAIT/RIGHT ANGLE CONNECTORS ITEM 1: 3M 10214-55G3PC 1.00 25.4 ITEM 2: HALO HFJ11-1G16E-L12RL ITEM 3: SONY ICX424 1.50 INCHES[MILLIMETERS] *Nominal for C mount. Reduce by 5mm for CS mount. Add 0.3mm for color option. GS650 Technical Manual Page 9...
-
Page 10: Connections
Connections Figure 1. GS SERIES connection diagram. GS650 Technical Manual Page 10... - Page 11 DO NOT EXCEED 5.5V ON SIGNAL INPUTS UNLESS OTHERWISE INDICATED. SYNC INPUT 1 CAN BE DRIVEN FROM A HIGHER VOLTAGE IF A CURRENT LIMITING RESISTOR IS USED TO LIMIT THE CURRENT TO LESS THAN 10 MILLIAMPS. GS650 Technical Manual Page 11...
- Page 12 These signals are RS-232 compatible. These signals allow communication from the host system via the Ethernet port to a peripheral device connected to the camera. Note that these signals are not isolated and therefore careful attention should be used when designing cabling in noisy environments. GS650 Technical Manual Page 12...
- Page 13 Solid Orange Ethernet link established. Flashing Orange Ethernet activity. Item 4: Status LED 2 LED COLOR STATUS Solid Green Normal operation. Flashing once per second Boot up pending 3 quick flashes once per Camera fault. second. GS650 Technical Manual Page 13...
-
Page 14: Cleaning The Sensor
Repeat this process until the debris is gone. If this process fails to remove the debris, then contact AVT. GS650 Technical Manual Page 14... -
Page 15: Adjusting The C-Mount
The distance required will depend on the lens used but typically 30 to 50 feet should suffice. Make sure the lens is firmly threaded onto the c-mount ring. Rotate the lens and c- mount ring until the image is focused. Carefully tighten locking ring. Recheck focus. GS650 Technical Manual Page 15... -
Page 16: Camera Installation
Prosilica GS cameras: • Intel PRO/1000 • D-Link DGE-550T • SMC EZ Card 1000 Gigabit Ethernet cards supporting this feature can also be purchased with the camera (AVT P/N 02- 3002A). GS650 Technical Manual Page 16... - Page 17 Click OK to save changes. Note that if Windows reports a conflict with the above IP address, simply repeat the above steps and change the last digit of the IP address to a different value. GS650 Technical Manual Page 17...
- Page 18 Figure 6. Turn off Firewall. o Return to the Gige Local Properties window as in Figure 4. Select the Advanced tab as in Figure 6 and disable the Firewall for this device. Click OK to save changes. GS650 Technical Manual Page 18...
- Page 19 100 meters. Power Connection The camera requires a 12V DC power supply that can source a minimum of 500 mA of current. See the Connections section of this document for more information. GS650 Technical Manual Page 19...
- Page 20 PacketSize can be set to 8228 if the network card has been optimized to support jumbo frames. o See the System Optimization Section to maximize the performance of your system. Figure 7. GigE Viewer application window. GS650 Technical Manual Page 20...
-
Page 21: System Optimization
This will open the properties window for your network card. See Figure 8. Figure 8. Network card main properties window. o From the Properties window select Configure then select the Advanced tab. See Figure 9. GS650 Technical Manual Page 21... - Page 22 From the main properties dialog as in Figure 8, make sure that only the Internet Protocol (TCP/IP) check box is selected then click OK. The card is now optimized for use with the Prosilica GS camera. o Open the viewer and set the PacketSize to 8228. GS650 Technical Manual Page 22...
-
Page 23: Trouble Shooting
Driver Issues TBD. Camera will not trigger Check cabling and connections. Verify that external trigger circuit is providing a compatible trigger signal. Use the AVT Viewer program in trigger mode to eliminate possible software issues. GS650 Technical Manual Page 23... -
Page 24: Addendum
Addendum GS650 Technical Manual Page 24... -
Page 25: Gs Io Schematic
LOGIC TXD 12V POWER 0.1u INVALID GND POWER LOGIC RXD ROUT RS232-RXD RS232-TXD VDD-3.3 TEXAS INSTRUMENTS SN74LVC2G241DCU LOGIC SY NC OUTPUT 2 SY NC OUTPUT 2 SY NC INPUT 2 LOGIC SY NC INPUT 2 GS650 Technical Manual Page 25... -
Page 26: Isolated Trigger Schematic
) from User’s trigger circuit into camera through R1. R2 is connected to the open collector of Fairchild MOCD207. The corresponding transistor emitter is connected to isolated ground. See the Fairchild MOCD207 datasheet for more detailed information. GS650 Technical Manual Page 26... -
Page 27: Non-Isolated Trigger Schematic
The non-isolated trigger circuit is connected to a Texas Instruments SN74LVC2G241 buffer/driver inside the camera. The required sync input current is less than 10uA and the maximum sync output current is 24mA. See the Texas Instruments SN74LVC2G241 for more detailed information. GS650 Technical Manual Page 27... -
Page 28: Video Iris Schematic
Video Iris Schematic POWER GROUND POWER GROUND 12V POWER 12V_POWER 3M 10114-3000PE CABLE SIDE LENS POWER VIDEO SIGNAL LENS GROUND JEITA CONNECTOR GS650 Technical Manual Page 28... -
Page 29: Trigger Timing Diagram
Trigger Timing Diagram Readout Time Trigger Latency Expose Start Registered Delay Exposure Time User Trigger Logic Trigger Exposure Trigger Jitter Readout Interline Time Trigger Ready Imaging Idle GS650 Technical Manual Page 29... -
Page 30: Notes On Triggering
For applications requiring the shortest possible Trigger Latency and the smallest possible Trigger Jitter the User Trigger signal should be applied when Imaging is false and Idle is true. o In this case, Trigger Latency and Trigger Jitter are as indicated in the Specifications section. GS650 Technical Manual Page 30... - Page 31 User Trigger signal should be applied as soon as a valid Trigger Ready is detected. o In this case, Trigger Latency and Trigger Jitter can be up to 1 line time since Exposure must always begin on an Interline boundary. GS650 Technical Manual Page 31...
