Merlin G900 Installation Instructions

Installation Instructions

G900 Linear swing gate operator (discontinued)
The Merlin G900 linear actuators are a compact, streamlined
design that provides good performance and quiet operation on
small to medium sized gates. The anodised aluminium finish
protects the drive system from the weather, ensuring low
maintenance. Suitable for single or double swing gates and
provide years of reliable service.
Control box
230v ac or 12v dc
80
850
Specs
Power options
Current
Maximum duty cycle
Travel time
Maximum gate weight / length 180Kg / 3 meters
Maximum opening angle
Gate stops required
Gate lock required
Standard features
Auto close, adjustable 6-210 seconds
Adjustable force sensitivity
Leaf delay for electric locks or clash bars.
Multi-use function.

Optional Accessories

Battery back up
Solar power option
Safety beam sensors
Electric lock
Intercom
Keypad entry.
Rev 01, May 03
2 wire 12v dc
365
230v. ac, 12v. dc, solar
3 amp per motor
100%
18-20 seconds
110 deg
Yes
optional

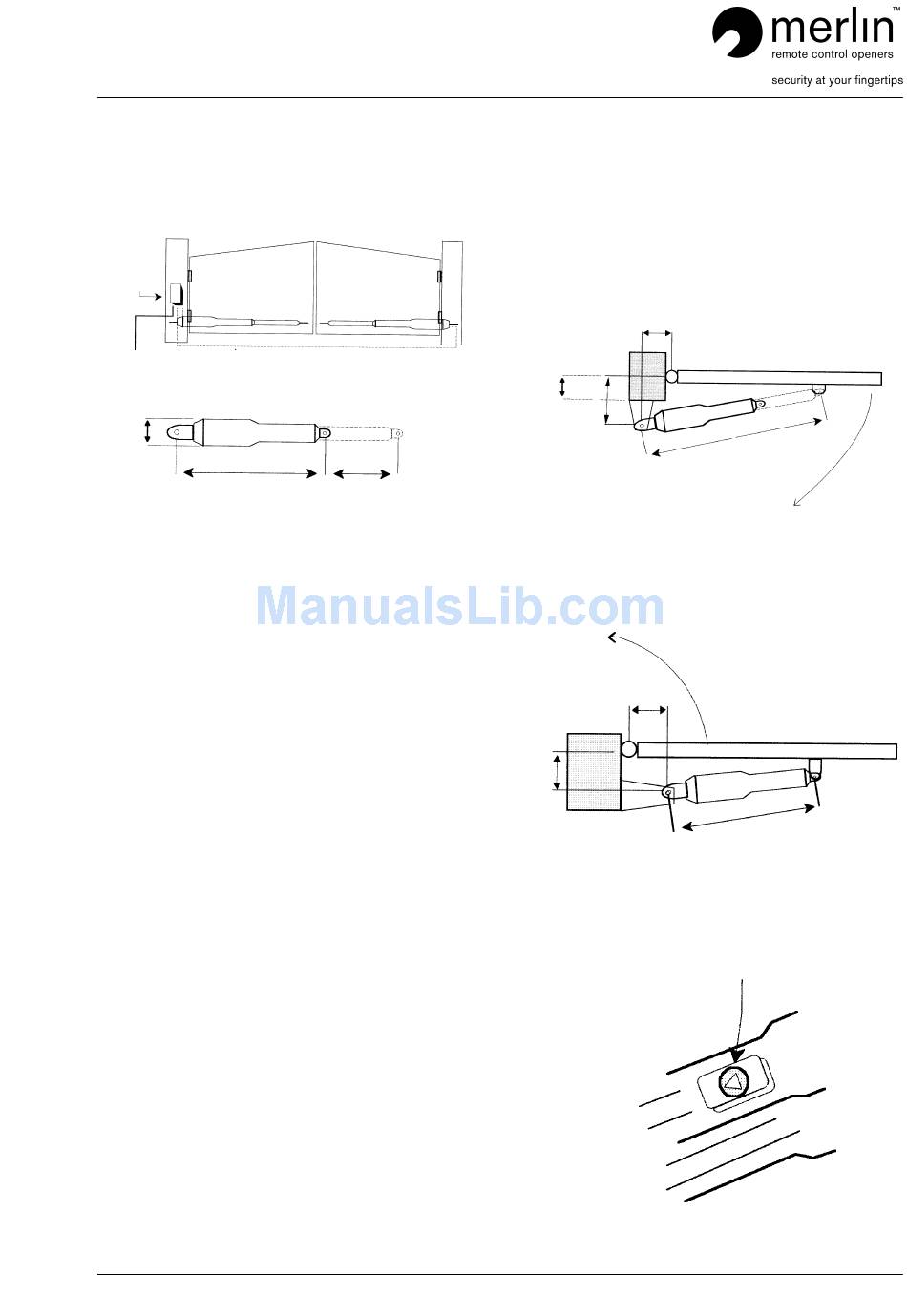

Step 1
Fasten the motor securely to the gatepost, and the gate
bracket to the gate as shown in fig A & B.
Correct geometry must be used.
Fig A
In swinging gates geometry
a
70mm max offset
b
Opening angles a
90 degrees 160mm
110 degrees 160mm
Fig B
Out swinging gates geometry
a
b
Opening angles a
90 degrees 160mm
110 degrees 160mm
To enable the opener to extend out to the gate bracket, turn
the manual release key.
© Merlin Garage Openers Limited
c
b c
130mm 1215mm
100mm 1215mm
c
b c
130mm 850mm
100mm 850mm
Page 1 of 2
