Merlin G940 Installation Instructions

Installation Instructions

G940 Harmonic swing gate operator (discontinued)
The Merlin G940 Harmonic swing gate operators are ruggedly
built and versatile units. The G940 is a compact unit suited for
small to medium sized gates. Suitable for single or double
swing gates and provide years of reliable service.
Specs
Power options
Current
Maximum duty cycle
Travel time
Maximum gate weight / length 150Kg / 3 meters
Maximum opening angle
Gate stops required
Gate lock required
Standard features
Independent limit controls
Auto close, adjustable 6-210 seconds
Adjustable force sensitivity
Two speed motor option
Leaf delay for electric locks or clash bars.
Multi-use function.

Optional Accessories

Battery back up
Solar power option
Safety beam sensors
Electric lock
Intercom
Keypad entry.
Rev 01, May 03
230v. ac, 12v. dc, solar
3 amp per motor
100%
10-14 seconds
110 deg
optional / recommended
optional

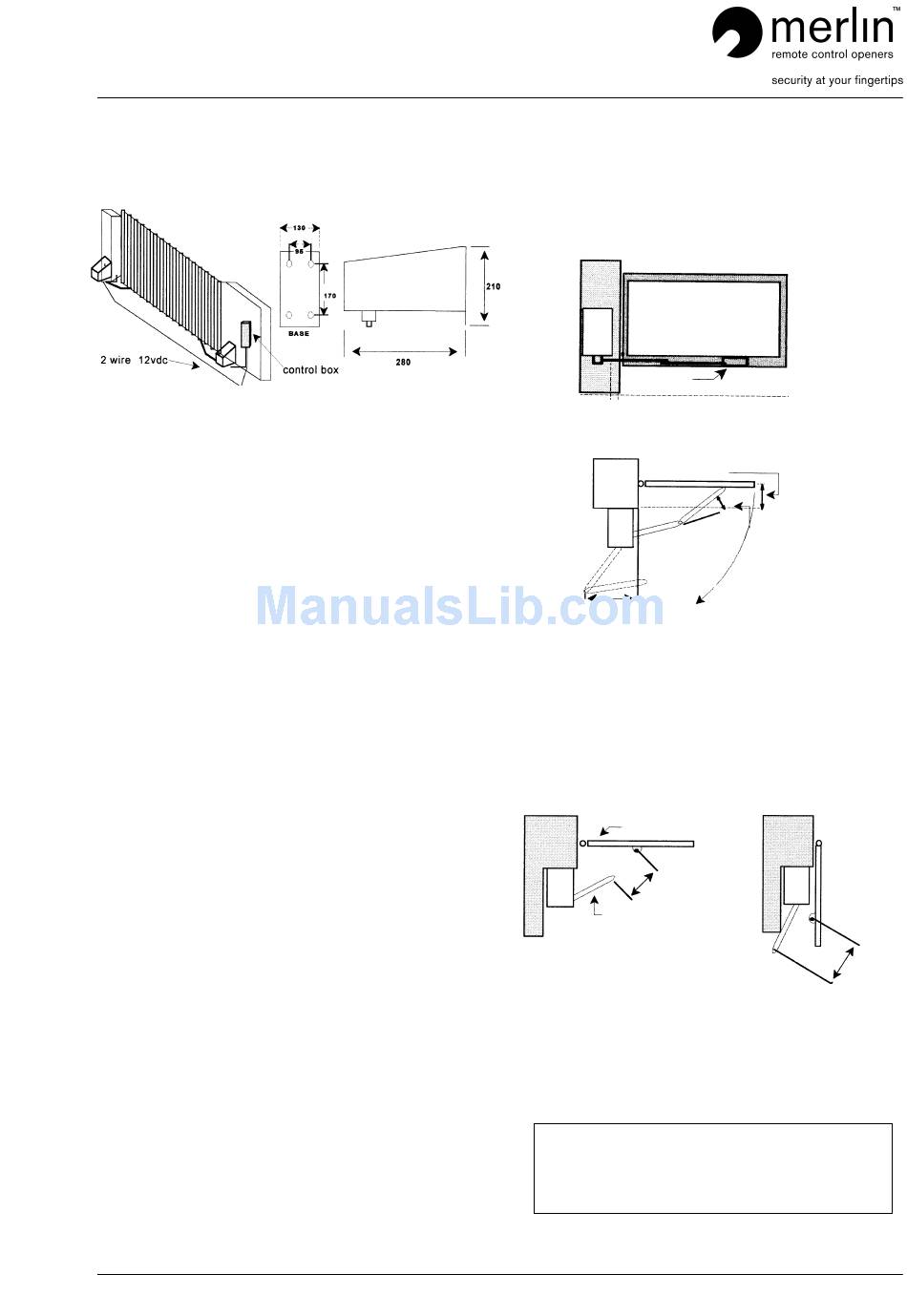

Step 1
Fasten the motor securely to the gatepost, and the gate
bracket to the gate as shown in fig A & B.
Fig A
Gate bracket
50mm
Fig B
Gate in closed position
200mm max
515mm std
350mm min.
Restricted side room installation
Where there is restricted side room (between 515mm &
350mm) the secondary arm must be cut to suit.
Move the primary arm into a position suitable for the gate in
the closed position. Measure as in Fig C while temporarily
clamping the bracket to the gate.
Fig C
Gate
Primary arm
Move the gate to the open position as in Fig D, and re-
measure. The correct bracket position and secondary arm
length will be when the distance is equal for the open and
closed.
Caution
Ensure that the secondary arm dose not interfere with
the primary arm.
Minimum angle between the primary & secondary arms,
in the open position should be no less than 40degrees.
© Merlin Garage Openers Limited
5 degrees min
Fig D
Page 1 of 3
