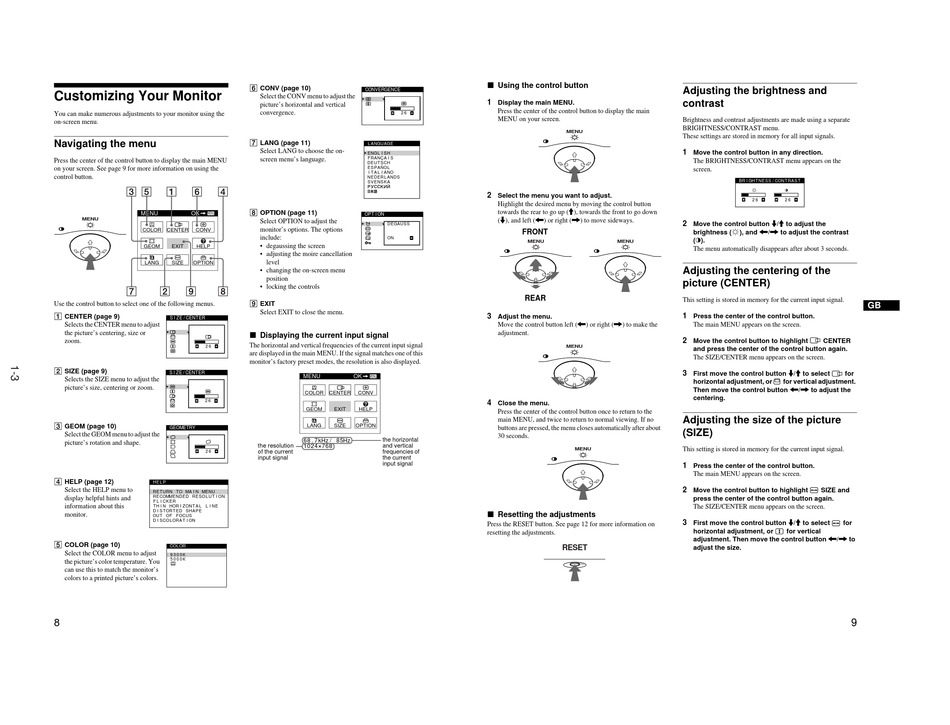

Customizing Your Monitor

You can make numerous adjustments to your monitor using the
on-screen menu.
Navigating the menu
Press the center of the control button to display the main MENU
on your screen. See page 9 for more information on using the
control button.
MENU
OK
MENU
MENU
COLOR
CENTER
CONV
GEOM
EXIT
HELP
LANG
SIZE
OPTION
Use the control button to select one of the following menus.
1 CENTER (page 9)
S I ZE / CENTER
Selects the CENTER menu to adjust
the picture's centering, size or
zoom.
2 6
2 SIZE (page 9)
S I ZE / CENTER
Selects the SIZE menu to adjust the
picture's size, centering or zoom.
2 6
3 GEOM (page 10)
GEOMETRY
Select the GEOM menu to adjust the
picture's rotation and shape.
2 6
4 HELP (page 12)
HE L P
Select the HELP menu to
RE TURN TO MA I N MENU
display helpful hints and
RECOMMENDED RESOL UT I ON
F L I CKER
information about this
TH I N HOR I ZONT A L L I NE
D I S TORT ED SHAPE
monitor.
OUT OF FOCUS
D I SCOLORA T I ON
5 COLOR (page 10)
COLOR
Select the COLOR menu to adjust
9 3 0 0 K
5 0 0 0 K
the picture's color temperature. You
can use this to match the monitor's
colors to a printed picture's colors.
8
6 CONV (page 10)
CONVERGENCE
Select the CONV menu to adjust the
picture's horizontal and vertical
convergence.
2 6
7 LANG (page 11)
L ANGUAGE
Select LANG to choose the on-
ENGL I SH
FRANÇA I S
screen menu's language.
DEUT SCH
ESPAÑOL
I T A L I ANO
NEDER L ANDS
SVENSKA
8 OPTION (page 11)
OPT I ON
Select OPTION to adjust the
DEGAUSS
monitor's options. The options
include:
ON
• degaussing the screen
• adjusting the moire cancellation
level
• changing the on-screen menu
position
• locking the controls
9 EXIT
Select EXIT to close the menu.
x Displaying the current input signal
The horizontal and vertical frequencies of the current input signal
are displayed in the main MENU. If the signal matches one of this
monitor's factory preset modes, the resolution is also displayed.
MENU
OK
MENU
COLOR
CENTER
CONV
GEOM
EXIT
HELP
LANG
SIZE
OPTION
the horizontal
68 . 7kHz / 85Hz
1024 768
and vertical
frequencies of
the current
input signal
x Using the control button
1
Display the main MENU.
Press the center of the control button to display the main
MENU on your screen.
MENU
2
Select the menu you want to adjust.
Highlight the desired menu by moving the control button
towards the rear to go up (M), towards the front to go down
(m), and left (<) or right (,) to move sideways.
FRONT
MENU
MENU
REAR
3
Adjust the menu.
Move the control button left (<) or right (,) to make the
adjustment.
MENU
4
Close the menu.
Press the center of the control button once to return to the
main MENU, and twice to return to normal viewing. If no
buttons are pressed, the menu closes automatically after about
30 seconds.
MENU
x Resetting the adjustments
Press the RESET button. See page 12 for more information on
resetting the adjustments.
RESET
Adjusting the brightness and
contrast
Brightness and contrast adjustments are made using a separate
BRIGHTNESS/CONTRAST menu.
These settings are stored in memory for all input signals.
1
Move the control button in any direction.
The BRIGHTNESS/CONTRAST menu appears on the
screen.
BR I GHTNESS / CONTRAS T
2 6
2 6
Move the control button m/M to adjust the
2
), and </, to adjust the contrast
brightness (
(6).
The menu automatically disappears after about 3 seconds.
Adjusting the centering of the
picture (CENTER)
This setting is stored in memory for the current input signal.
1
Press the center of the control button.
The main MENU appears on the screen.
2
Move the control button to highlight
CENTER
and press the center of the control button again.
The SIZE/CENTER menu appears on the screen.
First move the control button m/M to select
3
for
horizontal adjustment, or
for vertical adjustment.
Then move the control button </, to adjust the
centering.
Adjusting the size of the picture
(SIZE)
This setting is stored in memory for the current input signal.
1
Press the center of the control button.
The main MENU appears on the screen.
2
Move the control button to highlight
SIZE and
press the center of the control button again.
The SIZE/CENTER menu appears on the screen.
First move the control button m/M to select
3
for
horizontal adjustment, or
for vertical
adjustment. Then move the control button </, to
adjust the size.
9
