Sony TRINITRON CPD-G200 Service Manual Page 29

Color computer display.
Hide thumbs

Advertisement

Table of Contents
(a)
VIDEO
— A BOARD —
1
A
B
C

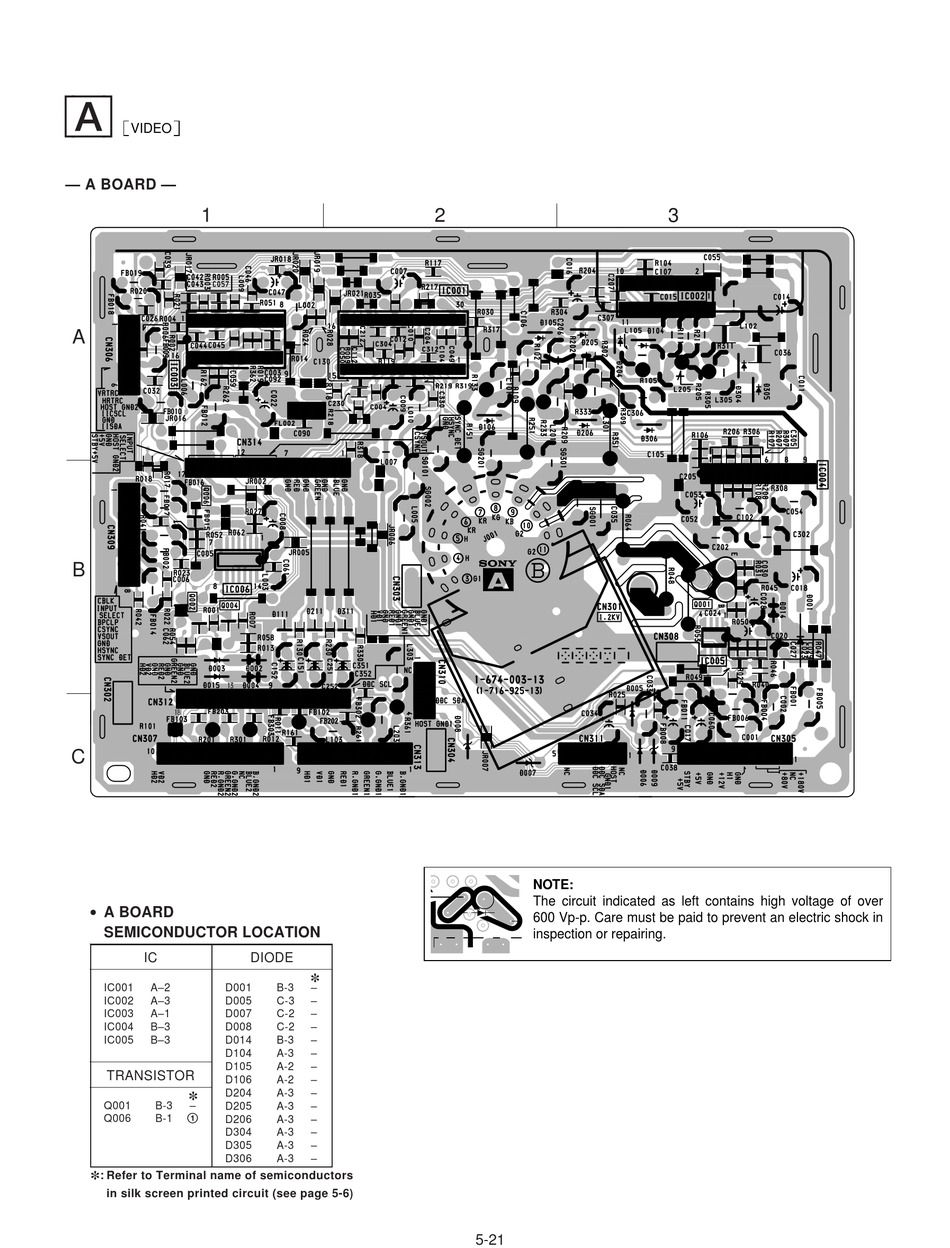

• A BOARD
SEMICONDUCTOR LOCATION
IC
IC001
A–2
D001
IC002
A–3
D005
IC003
A–1
D007
IC004
B–3
D008
IC005
B–3
D014
D104
D105
TRANSISTOR
D106
D204
*
Q001
B-3
D205
1
Q006
B-1
D206
D304
D305
D306
: Refer to Terminal name of semiconductors
*
in silk screen printed circuit (see page 5-6)
DIODE
*
B-3
C-3
C-2
C-2
B-3
A-3
A-2
A-2
A-3
A-3
A-3
A-3
A-3
A-3
2
NOTE:
The circuit indicated as left contains high voltage of over
600 Vp-p. Care must be paid to prevent an electric shock in
inspection or repairing.
