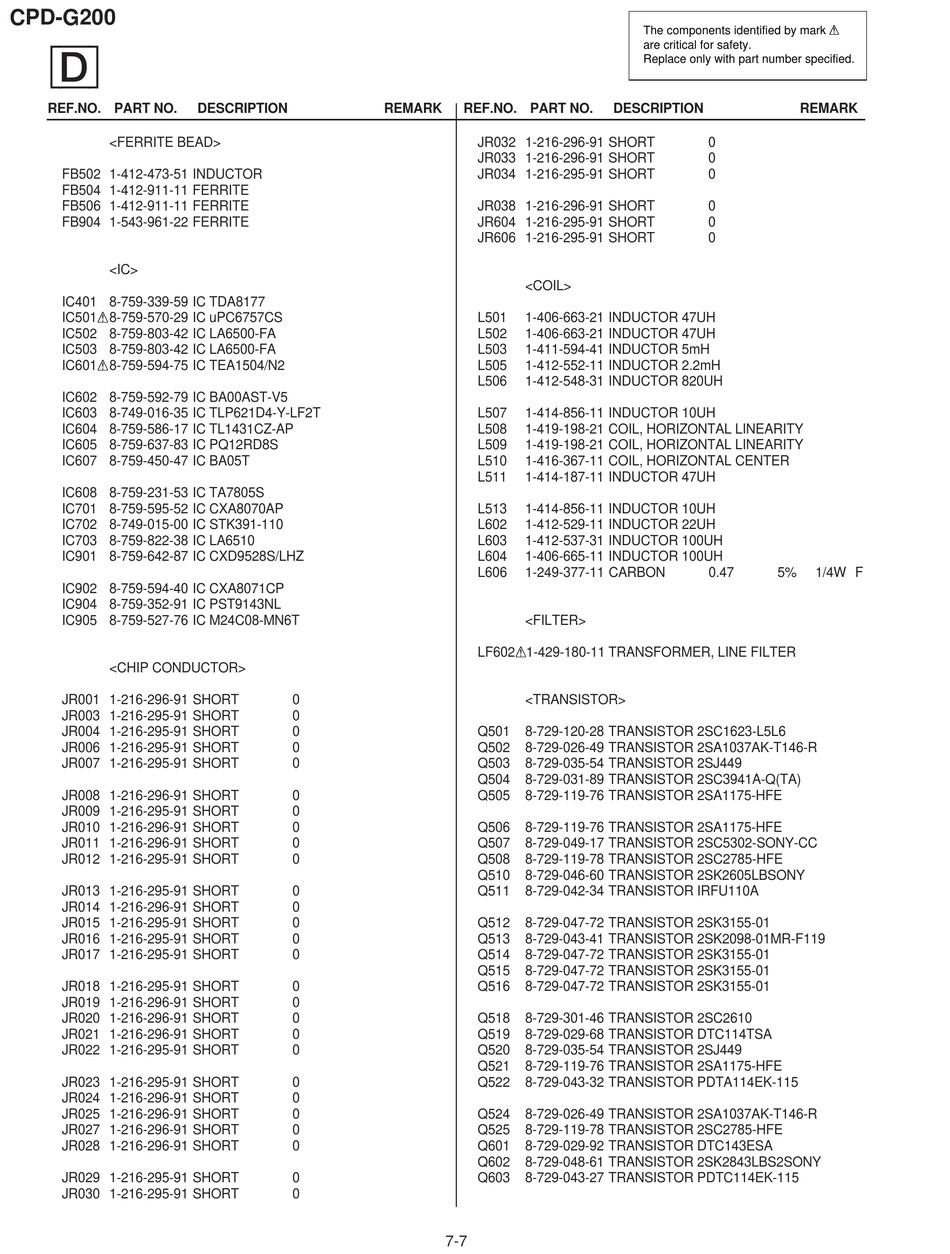

CPD-G200
(d)
REF.NO. PART NO.
<FERRITE BEAD>
FB502 1-412-473-51 INDUCTOR
FB504 1-412-911-11 FERRITE
FB506 1-412-911-11 FERRITE
FB904 1-543-961-22 FERRITE
<IC>
IC401 8-759-339-59 IC TDA8177
¡
IC501
8-759-570-29 IC uPC6757CS
IC502 8-759-803-42 IC LA6500-FA
IC503 8-759-803-42 IC LA6500-FA
¡
IC601
8-759-594-75 IC TEA1504/N2
IC602 8-759-592-79 IC BA00AST-V5
IC603 8-749-016-35 IC TLP621D4-Y-LF2T
IC604 8-759-586-17 IC TL1431CZ-AP
IC605 8-759-637-83 IC PQ12RD8S
IC607 8-759-450-47 IC BA05T
IC608 8-759-231-53 IC TA7805S
IC701 8-759-595-52 IC CXA8070AP
IC702 8-749-015-00 IC STK391-110
IC703 8-759-822-38 IC LA6510
IC901 8-759-642-87 IC CXD9528S/LHZ
IC902 8-759-594-40 IC CXA8071CP
IC904 8-759-352-91 IC PST9143NL
IC905 8-759-527-76 IC M24C08-MN6T
<CHIP CONDUCTOR>
JR001 1-216-296-91 SHORT
JR003 1-216-295-91 SHORT
JR004 1-216-295-91 SHORT
JR006 1-216-295-91 SHORT
JR007 1-216-295-91 SHORT
JR008 1-216-296-91 SHORT
JR009 1-216-295-91 SHORT
JR010 1-216-296-91 SHORT
JR011 1-216-296-91 SHORT
JR012 1-216-295-91 SHORT
JR013 1-216-295-91 SHORT
JR014 1-216-296-91 SHORT
JR015 1-216-295-91 SHORT
JR016 1-216-295-91 SHORT
JR017 1-216-295-91 SHORT
JR018 1-216-295-91 SHORT
JR019 1-216-296-91 SHORT
JR020 1-216-296-91 SHORT
JR021 1-216-296-91 SHORT
JR022 1-216-295-91 SHORT
JR023 1-216-295-91 SHORT
JR024 1-216-296-91 SHORT
JR025 1-216-296-91 SHORT
JR027 1-216-296-91 SHORT
JR028 1-216-296-91 SHORT
JR029 1-216-295-91 SHORT
JR030 1-216-295-91 SHORT
DESCRIPTION
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
REMARK
REF.NO. PART NO.
JR032 1-216-296-91 SHORT
JR033 1-216-296-91 SHORT
JR034 1-216-295-91 SHORT
JR038 1-216-296-91 SHORT
JR604 1-216-295-91 SHORT
JR606 1-216-295-91 SHORT
<COIL>
L501
1-406-663-21 INDUCTOR 47UH
L502
1-406-663-21 INDUCTOR 47UH
L503
1-411-594-41 INDUCTOR 5mH
L505
1-412-552-11 INDUCTOR 2.2mH
L506
1-412-548-31 INDUCTOR 820UH
L507
1-414-856-11 INDUCTOR 10UH
L508
1-419-198-21 COIL, HORIZONTAL LINEARITY
L509
1-419-198-21 COIL, HORIZONTAL LINEARITY
L510
1-416-367-11 COIL, HORIZONTAL CENTER
L511
1-414-187-11 INDUCTOR 47UH
L513
1-414-856-11 INDUCTOR 10UH
L602
1-412-529-11 INDUCTOR 22UH
L603
1-412-537-31 INDUCTOR 100UH
L604
1-406-665-11 INDUCTOR 100UH
L606
1-249-377-11 CARBON
<FILTER>
¡
LF602
1-429-180-11 TRANSFORMER, LINE FILTER
<TRANSISTOR>
Q501
8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q502
8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q503
8-729-035-54 TRANSISTOR 2SJ449
Q504
8-729-031-89 TRANSISTOR 2SC3941A-Q(TA)
Q505
8-729-119-76 TRANSISTOR 2SA1175-HFE
Q506
8-729-119-76 TRANSISTOR 2SA1175-HFE
Q507
8-729-049-17 TRANSISTOR 2SC5302-SONY-CC
Q508
8-729-119-78 TRANSISTOR 2SC2785-HFE
Q510
8-729-046-60 TRANSISTOR 2SK2605LBSONY
Q511
8-729-042-34 TRANSISTOR IRFU110A
Q512
8-729-047-72 TRANSISTOR 2SK3155-01
Q513
8-729-043-41 TRANSISTOR 2SK2098-01MR-F119
Q514
8-729-047-72 TRANSISTOR 2SK3155-01
Q515
8-729-047-72 TRANSISTOR 2SK3155-01
Q516
8-729-047-72 TRANSISTOR 2SK3155-01
Q518
8-729-301-46 TRANSISTOR 2SC2610
Q519
8-729-029-68 TRANSISTOR DTC114TSA
Q520
8-729-035-54 TRANSISTOR 2SJ449
Q521
8-729-119-76 TRANSISTOR 2SA1175-HFE
Q522
8-729-043-32 TRANSISTOR PDTA114EK-115
Q524
8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q525
8-729-119-78 TRANSISTOR 2SC2785-HFE
Q601
8-729-029-92 TRANSISTOR DTC143ESA
Q602
8-729-048-61 TRANSISTOR 2SK2843LBS2SONY
Q603
8-729-043-27 TRANSISTOR PDTC114EK-115
7-7
The components identified by mark
are critical for safety.
Replace only with part number specified.
DESCRIPTION
0
0
0
0
0
0
0.47
5%
¡
REMARK
1/4W F
