Manitowoc Q-0320 Installation Instructions

Material List Q-0320/Q-0420 Ice Machines

Quantity
1 Armaflex Insulation
1 Armaflex Insulation
(used on evaporator inlet/outlet and dump valve drain line)
1 Bulkhead Insulation Back
1 Bulkhead Insulation Back
2 Side Wall Insulation
1 Vacuum Formed Base with Insulation
1 Foam Gasket For Top Edge of Bin
1 Tube Silicone Sealant Black
1 Tube Silicone Sealant White
1 Mylar Strip
Additional materials required: Caulk gun, 2" x 4" wood blocks, and wire ties.

Preparation

1. Disconnect power from ice machine.
2. Remove front, top, and side panels.
3. Drain water from sump trough.
4. Ice machine must be thoroughly dried before the insulation can be installed. Use towels to dry bulkhead and base assembly.

Base Insulation Installation

1. Raise the ice machine above the bin. A high lift can be used, or (two people required) lift front edge of ice machine and place
wood blocks (2"x 4") between ice machine and bin. Lifting one side of ice machine at a time, move wood blocks to center
balance point of ice machine.
2. Slide vacuum-formed base insulation assembly between the ice machine and bin. Align the insulation with the back and sides
of the bin and ice machine.

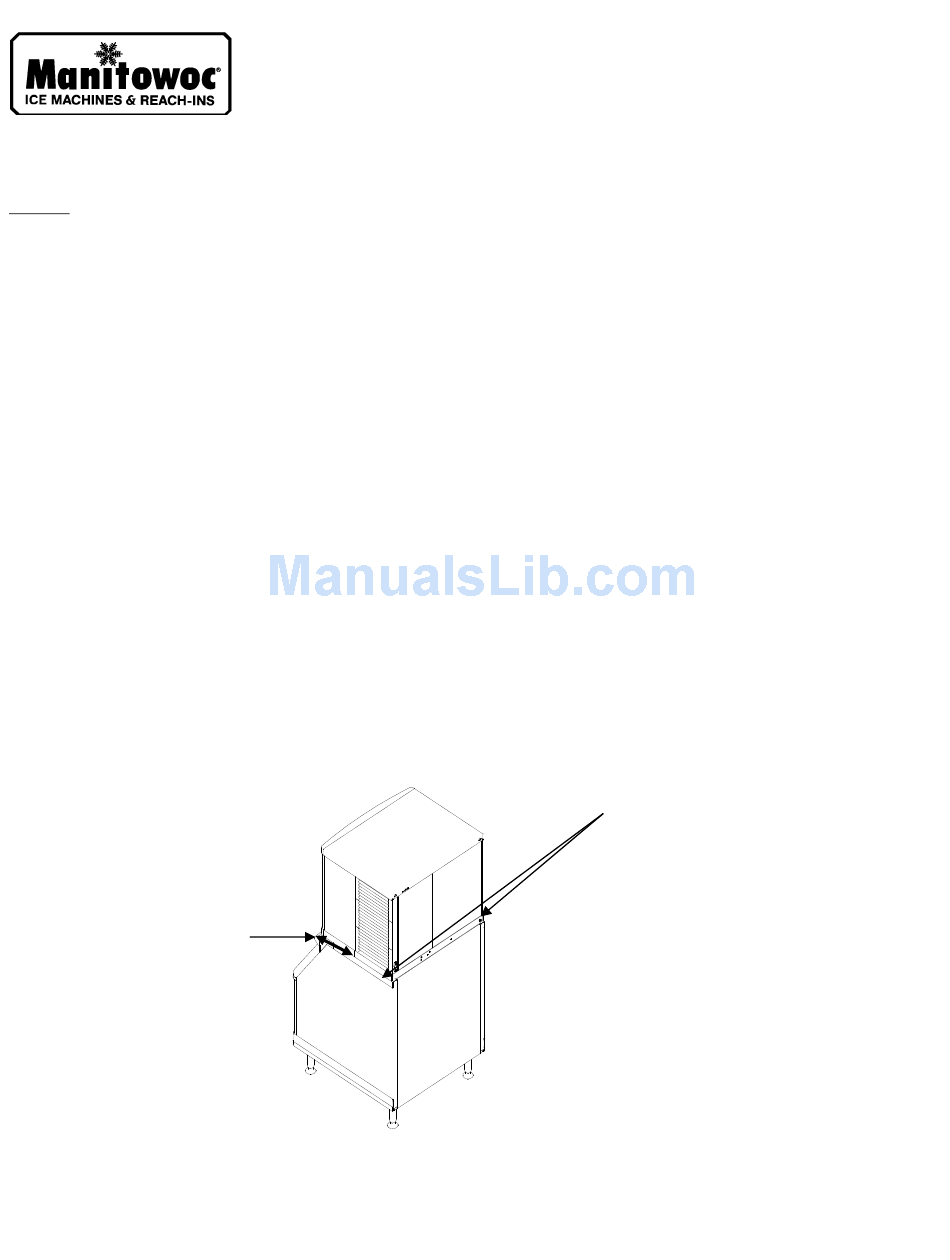

3. Add one layer of foam tape insulation from the front of the bin to the front of the base insulation on the left and right side.
4. Raise front of ice machine and position the wood blocks on edge (3 1/2" height). This will allow the top of the vacuum-
formed base to be accessed.
3. Add foam tape both sides.
Manitowoc Ice, Inc.
2110 South 26 Street, P.O. Box 1720, Manitowoc, WI 54221-1720 USA
Telephone 920-682-0161, Fax - Sales: 920-683-7589, Service/Parts: 920-683-7585, Other: 920-683-7879
Web Site - www.manitowocice.com
22" Q-Model Ice Machine Insulation
Installation Instructions
6' x 2" ID x 3/8" wall thickness
6' x 3/4" ID x 3/8" wall
9" x 21 1/2" x 3/4"
3" x 21 1/2" x 3/8"
9" x 10" x 3/8"
12 3/4" x 21 1/2" x 3/4"
2' x 3/4" x 1/4"
used to seal base/bulkhead insulation
used to seal front edge of vacuum-formed base
8" x 21 1/2"
2. Install vacuum-formed base insulation
and align back and sides.
8005503
Sheet 1 of 3
06/22/00
