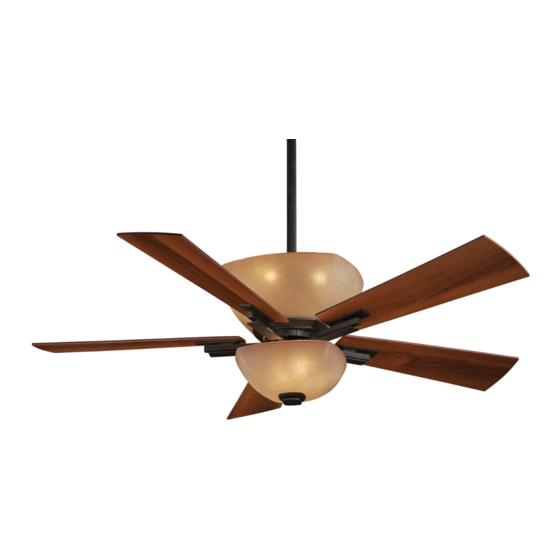

Summary of Contents for Minka-Aire LINEAGE
- Page 1 L L I I N N E E A A G G E E U.S. PATENTS D528,652; D531,298; D532,098; D533,292; D535,012; D563,540...
- Page 2 This product is protected by United States Federal and/or State Law, including Patent, Trademark and/or Copyright laws. Manual design is protected by United States Federal and/or State Law, including Patent, Trademark and/or Copyright laws.
- Page 3 You may also at your preference obtain warranty service by returning the fan directly to Minka-Aire along with proof of purchase, your name ® and return address, and a description of the claimed product defect. Pack carefully; damage sustained in return transit to Minka-Aire will be the ®...
- Page 4 The purchaser of the fan shall be responsible for any cost of removing the old fan, installing a new fan, or any other costs. This limited warranty is in lieu of all other express warranties. This limited warranty excludes all incidental and consequential damages, and Minka-Aire ®...
-
Page 5: Table Of Contents
SAFETY RULES ATTACHING THE BLADES CONTENTS PACKAGE CONTENTS INSTALLING THE LIGHT BULB & GLASS SHADE BEGIN INSTALLATION OPERATING THE REMOTE CONTROL / WALL CONTROL 10 HANGING THE FAN CARE OF YOUR FAN ELECTRICAL CONNECTIONS TROUBLESHOOTING INSTALLING THE WALL TRANSMITTER SPECIFICATIONS FINISHING THE INSTALLATION 1151W. -
Page 6: Safety Rules
SAFETY RULES 1. Before you begin installing the fan, shut power off at the circuit breaker of the fuse box. 2.Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams. 3. Make sure that all electrical connections comply with local codes, ordinances, or National Electrical Codes. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you are unfamiliar with installing electrical wiring. - Page 7 ATTENTION: The Energy Policy Act of 2005 requires this fan to be equipped with a 190 watt limiting device. If lamping exceeds 190 watts, the ceiling fan’s light kit will shut off automatically. NOTE:The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur.
-
Page 8: Package Contents
PACKAGE CONTENTS 1. Fan motor housing 13. Receiver with 6 wire (3 pcs) fl 2. Glass nuts 6.5x19mm Flat washers 3. Light kit 14a.Wall plate (includes 2- (3 pcs) 4. Canopy 6x8mm mounting screws) Star washers (3 pcs) Coupling cover 14b.Wall Transmitter Incl. -
Page 9: Begin Installation
® ANGLE To hang your fan where there is an existing fixture but no ceiling joist, you may need HANGER to install a hanger bar as shown in Fig. 4 (available at your Minka-Aire dealer.) ® OPENING MUST RECESSED... -
Page 10: Hanging The Fan
HANGING THE FAN WARNING: All of the parts, hardware and components such as the screws from motor. hanger bracket and hanger ball have been provided for your safety Step 6. Place the top plates over the motor and secure with the 6 and the proper installation of your new ceiling fan. - Page 11 SCREW SCREW 15W BULB OUTLET BOX FAN MOTOR HANGER KNOCK OUT BRACKET PLATE Fig.5 Fig.9 GLASS SHADE FLAT WASHER OUTLET BOX TOP PLATE SPRING WASHER HANGER BRACKET SCREW PLATE HEX NUT REGISTRATION FLAT WASHER SLOT HANGER BRACKET STAR WASHER Fig.7 Fig.8 Fig.6 WOOD SCREW...
- Page 12 CANOPY SET SCREW COUPLING DOWNROD COVER CROSS PIN HANGER BALL COUPLING SCREW COVER HANGER BRACKET HITCH PIN SET SCREW REGISTRATION SLOT LOCK PIN HITCH PIN LOCK PIN Fig.12 Fig.14 Fig.11 Fig.13...
-
Page 13: Electrical Connections
ELECTRICAL CONNECTIONS WARNING:To avoid possible electrical shock be sure electricity is N" from the Receiver. Connect the BLACK wire from the fan to the turned off at the main fuse or breaker box before wiring. BLACK wire marked "TO MOTOR L" from the Receiver. Connect the BLUE wire from the fan to the BLUE wire marked "For Light"... - Page 14 Step 4.If your outlet box has a GROUND wire (Green or Bare Copper) connect this wire to the Hanger Ball OUT LET OUTLET and Hanger Bracket Ground wires. If your outlet box WALL CONTROL does not have a Ground Wire, then connect the Hanger BLACK WHITE RECEIVER...
-
Page 15: Installing The Wall Transmitter
INSTALLING THE WALL TRANSMITTER WARNING! HOOK UP "IN SERIES" ONLY. DO NOT CONNECT NEUTRAL SUPPLY WIRE OF ELECTRIC CIRCUIT TO THE TRANSMITTER WALL SWITCH, DAMAGE TO THE TRANSMITTER WALL SWITCH AND POSSIBLE FIRE COULD OCCUR. Step 1. Remove the existing wall plate and switch from the wall outlet box. Step 2. -
Page 16: Finishing The Installation
FINISHING THE INSTALLATION Slide the Canopy up over the Hanger Bracket and place the keyholes from Canopy over the two screws from the Hanger Bracket. Rotate Canopy until it locks at the narrow section of the keyholes. While holding the Canopy in place with one hand, slide the Canopy Cover over the screw heads and rotate until snug. -
Page 17: Attaching The Blades
ATTACHING THE BLADES FOLLOWI NG OPERATION MUST 3/16"X1/2" SCREW ACCOMPLISHED BEFORE INSTALLING THE LIGHT KIT. Step 1. Attach the fan blades to the blade holders FIBER WASHER using the screws & fiber washers provided. (Fig 21). Step 2. Align holes from blade holder to motor and BLADE secure with 2 screws provided. - Page 18 INSTALLING THE LIGHT KIT & GLASS SHADE Attention: The Energy Policy Act of 2005 requires this fan to be equipped with a 190 watt limiting device. If lamping exceeds 190 LIGHT PLATE PLUG watts, the ceiling fan’s light kit will shut off automatically. Warning: Shut off the power supply before removing or replacing lamp.
-
Page 19: Operating The Remote Control/Wall Control
OPERATING THE REMOTE CONTROL/WALL CONTROL Remote Control fans only: Install the A23, 12v battery (included) . To prevent damage to transmitter remove the battery if not used for long periods of time. REPLACE THIS ENTIRE PAGE c o n t r o l t h e b r i g h t n e s s s e t t i n g s o f t h e feature that allows the light to remain at the same brightness as the last time it was turned off. -
Page 20: Care Of Your Fan
CARE OF YOUR FAN Here are some suggestions to help maintain your fan. blades. 1. Because of the fan's natural movement some connections may 5. There is no need to oil your fan. The motor has permanently become loose. Check the support connections, brackets and blade lubricated bearings. -
Page 21: Troubleshooting
TROUBLESHOOTING SYMPTOM SYMPTOM SYMPTOM SYMPTOM Fan Wobble Lights shut off and will not Fan will not start Fan will not start come back on. SOLUTION SOLUTION SOLUTION SOLUTION 1.NOTE: All blade sets are grouped by weight. 1.Allow a 24-hour "break in" 1. - Page 22 SYMPTOM SYMPTOM Frequency interference Lights shut off andwill not come back on. SOLUTION SOLUTION 1.Turn the power off to your ceiling fan. 2.lease use a small size tool to change the frequency setting on the control system. 1. This unit is equipped 3.Return power to the unit Note: After the AC power is on,do not press any other with a wattage limiting button on the transmitter before pressing the “Stop”...
- Page 23 MKA9013109...
- Page 24 English Verison...
