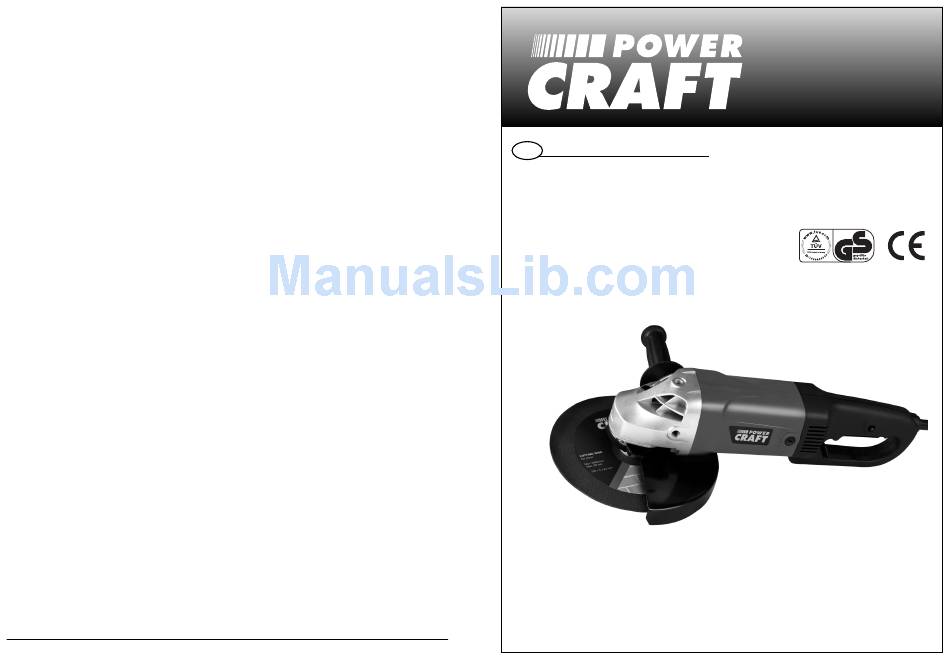

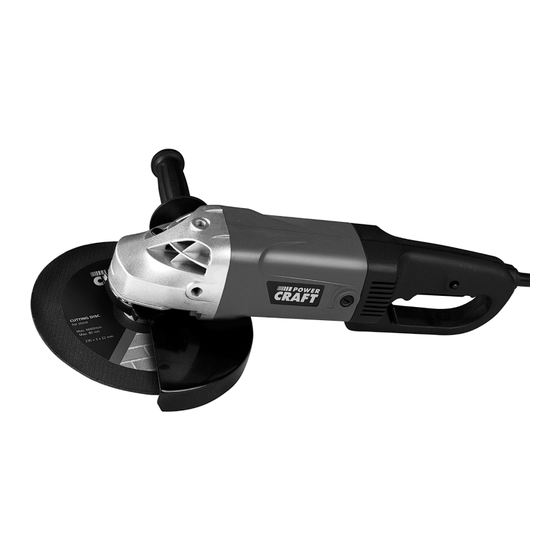

- Page 1 GB Subject to change USERS MANUAL Art.No. AGM6015 • 10/06 PAG-230/2100K Angle Grinder www.servotool.nl GB/IRE-0705-15...
- Page 2 Exploded view Fig.1 Fig.2 Fig.4 Fig.3 Fig.5 Powercraft Powercraft...
- Page 3 Spare parts list PAG-230/2100K Description Ref. No. 406941 Flange outside 406940 Flange inside 407015 Wheel cover 4 till 6 406943 Spindle gear 406944 Pinion gear 407016 Rotor 407017 Stator 406947 Brush holder Fig.6 406948 Carbon brush set (2 pcs) 406949...
- Page 4 ANGLE GRINDER The numbers in the following text correspond with the pictures at page 2+3 For your own safety and for the safety of others, please read these instructions carefully before using this appliance. It will help you understand your product more easily and avoid unnecessary risks.
- Page 5 Faulty and/or discarded electrical or electronic apparatus have to be collected at Screw-on lid carbon brush (both sides) the appropriate recycling locations. Spindle lock Grinding disc Side handle Warranty Lock-off button The warranty conditions can be found on the separately enclosed warranty card. Protective guard Knob DECLARATION OF CONFORMITY (GB)
- Page 6 Safety instructions 5. SERVICE & MAINTENANCE When using electric machines always observe the safety regulations applicable in your country to reduce the risk of fire, electric shock and personal injury. Read the following safety instructions and also the enclosed safety instructions. Keep these instructions in a safe place! Make sure that the plug is removed from the mains when carrying out maintenance work on the motor.
- Page 7 • When working with the machine, always hold it firmly with both hands and provide for a 16. Remove adjusting keys and wrenches. secure stance. Form the habit of checking to see that keys and adjusting wrenches are removed from tool •...
- Page 8 • Make sure that sparks do not put people into danger or that they contact highly flammable Mounting the tool-les protective guard substances. Fig. 2+3 • Make sure that the workpiece is sufficiently supported or clamped. Keep your hands away from the surface to be cut. Tool-les protective guard •...
