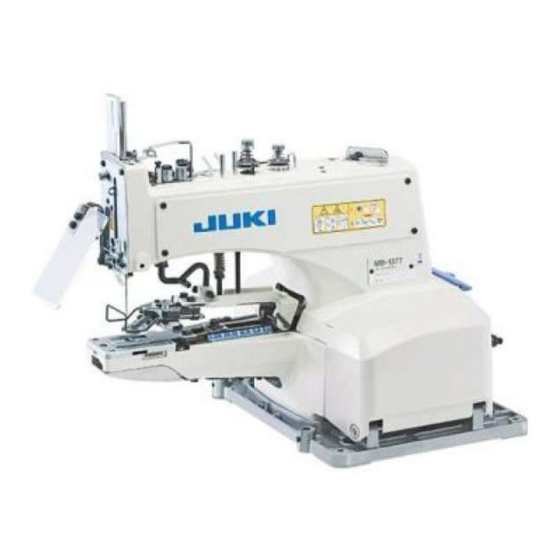

JUKI MB1373 Instruction Manual
Hide thumbs
Also See for MB1373:
- Instruction manual (18 pages) ,
- Specifications (4 pages) ,
- Engineer's manual (50 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
Engineer's Manual
Advertisement
Table of Contents
Related Manuals for JUKI MB1373
Summary of Contents for JUKI MB1373
- Page 1 ENGLISH InstructIon Manual...
-
Page 2: Table Of Contents
contEnts 1. sPEcIFIcatIons ......................1 2. PrEParatIon oF tHE sEWInG MacHInE ..............1 2-1. Installation ............................1 2-2. lubrication ............................2 2-3. attaching the needle .......................... 2 2-4. attaching the needle bar cover ......................3 2-5. attaching the button tray assembly ....................3 2-6. -
Page 3: Specifications
Needle used TQx1 #16 (#14 to #20) TQx7 #16 (#14 to #20) Lubrcatng ol JUKI New Defrx Ol No. 1 Nose Workplace-related nose at sewng speed n = 1,500 mn–1 : Lpa ≦ 84 dB(A) Nose measurement accordng to DIN 45635-48-B-1. -
Page 4: Lubrication
1) Open the sde cover, and apply JUKI New Defrx Ol No. 1 to the portons shown by the red marks 1 to !2 ( 7 : MB-1377 only). -
Page 5: Attaching The Needle Bar Cover
2-4. attaching the needle bar cover WarnInG : to protect against possible personal injury due to abrupt start of the machine, be sure to start the following work after turning the power off and ascertaining that the motor is at rest. 1) Loosen screw 2 and remove thread gude 3 . -
Page 6: Adjustment Of The Sawing Machine
3. aDJustMEnt oF tHE saWInG MacHInE 3-1. thread tension adjustment Tenson post No. 1 1 s used to adjust the thread tenson to sew on the button and a relatvely low tenson wll be enough. Tenson post No. 2 2 s used to adjust the thread tenson appled to the root of the button sewng sttches. -
Page 7: Adjusting The Nipper
3-4. adjusting the nipper WarnInG : to protect against possible personal injury due to abrupt start of the machine, be sure to start the following work after turning the power off and ascertaining that the motor is at rest. 1) Provde a 0.4 to 0.6 mm clearance between npper block 2 and npper 1 to prevent the npper 1 from hold- ng the thread whle the machne s n... -
Page 8: Position Of The Needle Guide
3-7. Position of the needle guide WARNING : To protect against possible personal injury due to abrupt start of the machine, be sure to start the following work after turning the power off and ascertaining that the motor is at rest. Loosen screw 2 and provide a 0.05 to 0. mm clear- ance between the needle guide 1 and the needle by moving the needle guide 1 to the left or the right... -
Page 9: Timing Of Thread Tension Release
3-11. Timing of thread tension release Turn the needle driving pulley as you draw the thread in the direc- tion of arrow mark A and you will find a point at which the tension discs on the tension post No. 2 release the thread. At this moment, the standard distance from the top end of the needle bar bushing (upper) to the top end of the needle bar is 44 to 47 mm (in case of the needle of TQ X 7, 54 to 57 mm). -
Page 10: Setting A Number Of Stitches
3-13. Setting a number of stitches WARNING : To protect against possible personal injury due to abrupt start of the machine, be sure to start the following work after turning the power off and ascertaining that the motor is at rest. To change the number of stitches, open the left-hand side cover and change the number of stitches using stitch number adjusting screw 1 and stitch number adjusting lever 4 (optional). -
Page 11: Automatic Thread Trimmer
3-15. automatic thread trimmer (1) adjusting the position of the moving knife WarnInG : to protect against possible personal injury due to abrupt start of the machine, be sure to start the following work after turning the power off and ascertaining that the motor is at rest. When the presser has completely lfted at the stop- moton poston (refer to "3-14. -
Page 12: Knot-Tying Mechanisms
3-18. Knot-tying mechanisms WarnInG : to protect against possible personal injury due to abrupt start of the machine, be sure to start the following work after turning the power off and ascertaining that the motor is at rest. (1) adjusting the knot-tying connecting plate Loosen screws 1 and adjust so that a clearance of 1 to 1.5 mm s provded between the needle 2 and the knot tyng plate 3 when the roller of the knot-... -
Page 13: Changeover Of WTh/WThout Knot-TyNg
(4) changeover of with/without knot-tying To make “wth knot-tyng”, pull knot-tyng changeover knob 1 toward the front and place t to the poston in the figure. To make “wthout knot-tyng”, pull knot-tyng change- over knob 1 toward the front and place t to the position in the figure. -
Page 14: Attachments
4-3. attachments WarnInG : to protect against possible personal injury due to abrupt start of the machine, be sure to start the following work after turning the power off and ascertaining that the motor is at rest. 1) In order to nstall the attachment on the machne, you may have to remove button clamp mecha- nsm 1 or feed plate 2 . -
Page 15: Attachments For Shank Buttons (Pearl Buttons) (Z033)
(1) attachments for shank buttons (Pearl buttons) (Z033) WarnInG : to protect against possible personal injury due to abrupt start of the machine, be sure to start the following work after turning the power off and ascertaining that the motor is at rest. (InstallatIon) Remove both the button clamp mechansm assem- bly and the feed plate from the machne and nstall... -
Page 16: Attachment For The Second Process Of Wrapped-Around Buttons (Z035)
(3) attachment for the second process of wrapped-around buttons (Z035) WarnInG : to protect against possible personal injury due to abrupt start of the machine, be sure to start the following work after turning the power off and ascertaining that the motor is at rest. (InstallatIon) (Z035) Remove the button clamp mechansm assembly, but-... -
Page 17: Attachment For Metal Buttons (Z038)
(5) Attachment for metal buttons (Z038) WARNING : To protect against possible personal injury due to abrupt start of the machine, be sure to start the following work after turning the power off and ascertaining that the motor is at rest. (INSTALLATION) Remove both the button clamp mechanism assem- bly and the feed plate from the machine and install attachment 1 in place. Loosen screws 3 and adjust button clamp bracket 4 to permit the needle to come down in the middle of the needle slot in metal button adaptor 2 . -
Page 18: Troubles And Corrective Measures
5. TROUBLES AND CORRECTIVE MEASURES TROUBLES CAUSES CORRECTIVE MEASURES 1. Thread breakage 1 The yoke slide does not move in the correct ™ Adjust the timing of forward, backward and way. sideways of the yoke slide. 2 The tension lever has been improperly adjusted. ™ Properly adjust the tension lever. 3 The thread tension post No.
