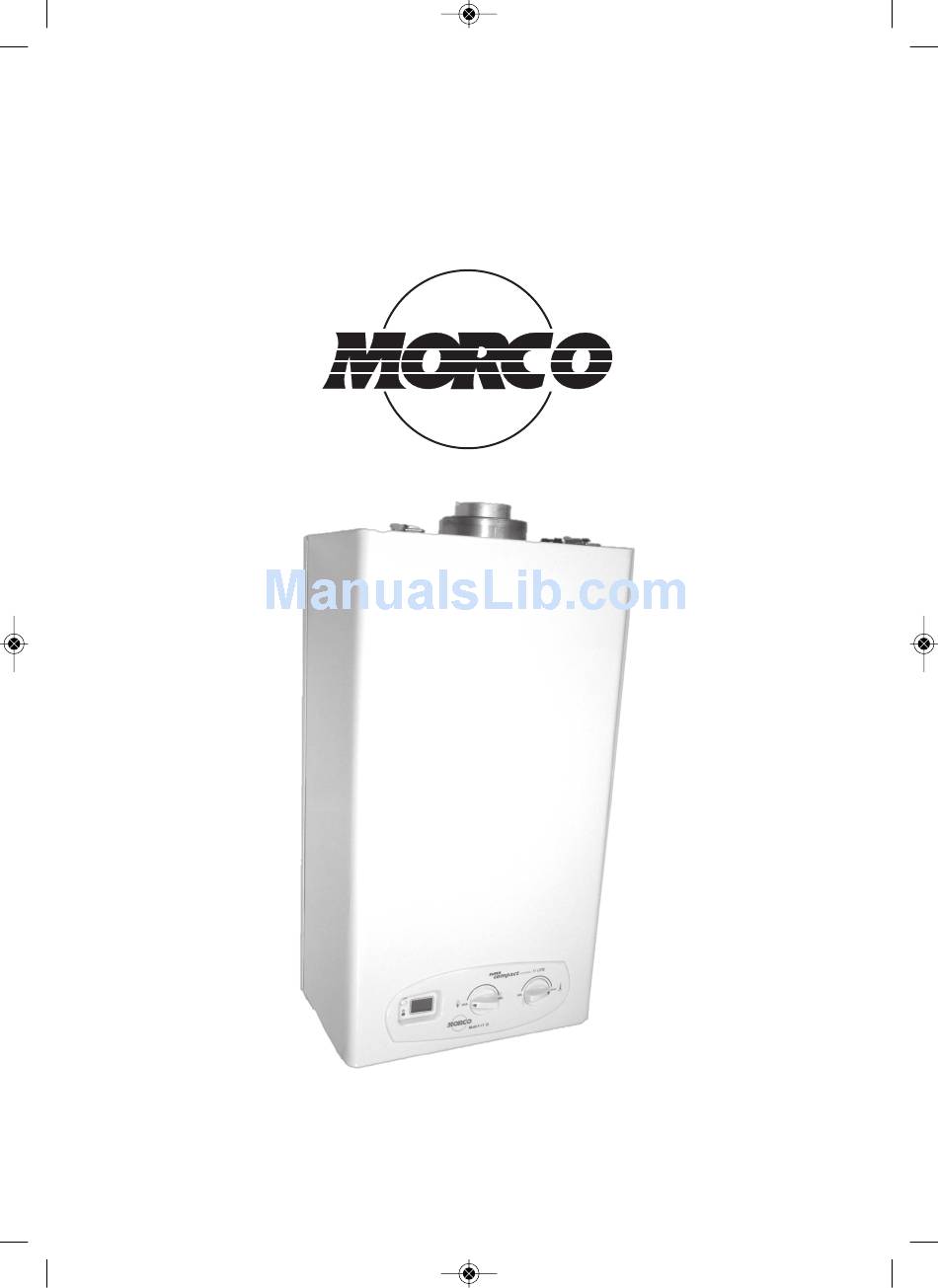

- Page 1 1-10.010.649-ingles:1-10.005.856-ingles 24/03/14 17:41 Página 1 INSTALLATION AND USERS’ MANUAL F-11 E L SUPER COMPACT ROOM SEALED WATER HEATER 10.010.649...
- Page 2 1-10.010.649-ingles:1-10.005.856-ingles 24/03/14 17:41 Página 2...
- Page 3 1-10.010.649-ingles:1-10.005.856-ingles 24/03/14 17:41 Página 3 CONTENTS/SOMMAIRE/INHOUDSOPGAVE ENGLISH: GENER L S FETY INSTRUCTION USERS INSTRUCTIONS 1.- CONTROL P NEL ..................6 2.- ST RTING UP THE PPLI NCE ..............6 3.- OPER TION .................... 6 4.- M INTEN NCE ..................8 5.- FROST PROTECTION ................
- Page 4 1-10.010.649-ingles:1-10.005.856-ingles 24/03/14 17:41 Página 4...
- Page 5 Keep this manual in a safe and easy to find place. The transformation, installation, adjustment , maintenance or repair the devi- ce must only be carried out by Morco Service or qualified professionals. It is prohibited to tamper with any sealed part of the heater.
-
Page 6: Control Panel
1-10.010.649-ingles:1-10.005.856-ingles 24/03/14 17:41 Página 6 USER 1.- CONTROL PANEL 1.- Variable power selector 2.- Water temperature selector 3.- ON-OFF button 4.- Display with the following: 4.1.- Indication of hot water temperature 4.2.- Burner ON (flashing) 4.3.- Fault codes (blinking) 5.- Power on Indication. Green LED is lit if power is supplied an button (3) is ON. 2.- STARTING UP THE APPLIANCE IMPORT NT: The installer must explain to the user how the water heater functions,... - Page 7 To RESET the heater press the ON-OFF button to switch off then depress the ON-OFF button to restart. The heater should ignite when the hot tap is opened. If the heater locks out persistently, call your installer or MORCO on 01482 325456 for details of your nearest service agent.
- Page 8 Note: before carrying out any maintenance or repair operations, the heater MUST be disconnected from the mains electric, and the gas and water supply. MORCO recommends yearly inspection of the heater by a qualified and competent service engineer. The following inspections should be carried out: •...
-
Page 9: Frost Protection
1-10.010.649-ingles:1-10.005.856-ingles 24/03/14 17:41 Página 9 USER 5.- FROST PROTECTION During freezing cold weather, the appliance must be drained down, leaving the appliance undrained during freezing conditions, will result in the appliance being frost damaged. It must be drained down in the following way: •... - Page 10 1-10.010.649-ingles:1-10.005.856-ingles 24/03/14 17:41 Página 10 USER 6.- TROUBLESHOOTING & FAULT CODES Code Description Cause Solution Failed to measure hot Fault in the NTC sensor or Call to technical service. water temperature. defect in wiring. Check the NTC and the wiring Not LO KED OUT Gas tap closed.
-
Page 11: Description Of The Appliance
1-10.010.649-ingles:1-10.005.856-ingles 24/03/14 17:42 Página 11 INST LLER 7.- DESCRIPTION OF THE APPLIANCE This is a room-sealed fan flued water heater with electronic direct ignition with ionisation safety. It is mains powered and has a mechanically modulating gas valve responding to water flow rate. Its room sealed combustion chamber, equip- ped with a fan for the intake of air from the outside and the removal of combus- tion products to the outside, enables it to function totally independently of the room in which it is installed. - Page 12 1-10.010.649-ingles:1-10.005.856-ingles 24/03/14 17:42 Página 12 INST LLER M IN COMPONENTS: 1. FR ME including water heater hanging bar. 2. SE LED CH MBER B SE, forming the combustion chamber together with the cover. 3. FLUE EXTR CTOR UNIT equipped with an extractor body, fan, air pressure switch and Ø...
-
Page 13: Technical Characteristics
1-10.010.649-ingles:1-10.005.856-ingles 24/03/14 17:42 Página 13 INST LLER 8.- TECHNICAL CHARACTERISTICS Certification, Category and Type: MODEL F-11 E L EC Type test certificate 99CN922 Category 38/P Country of destination BE, FR ES, GB, IE, IT, PT BE, ES, FR, GB, IE, IT, PT Type Degree of electrical protecction IP-44... - Page 14 1-10.010.649-ingles:1-10.005.856-ingles 24/03/14 17:42 Página 14 INST LLER 9.- FUNCTION DIAGRAM 1.- Gas inlet 2.- Water inlet 3.- Gas filter 4.- Lower body 5.- Upper body 6.- Water regulator 7.- Pressure test point 8.- Water filter 9.- Power selector 10.- Servovalve 11.- Injector 12.- Distributor 13.- Main body...
-
Page 15: Electrical Diagram
1-10.010.649-ingles:1-10.005.856-ingles 24/03/14 17:42 Página 15 INST LLER 10.- ELECTRICAL DIAGRAM 1.- ON/OFF button 8.- Ionisation electrode 2.- Power supply connector 9.- Confirmation electrode 3.- Servovalve 10.- Spark electrode 4.- Micro switch 11.- Power on LED (Green) 5.- Power supply and fanl control circuit 12.- Display 6.- Air pressure switch 13.- Water flow switch... -
Page 16: Appliance Dimensions
1-10.010.649-ingles:1-10.005.856-ingles 24/03/14 17:42 Página 16 INST LLER 11.- APPLIANCE DIMENSIONS Wei g ht Dimensions (mm) MODEL (kg) 11 Litre 15,5 330 595 230 247 60- 1 00 25 122 230 8 50 513 50 106 592 75 7 143 125 143... - Page 17 1-10.010.649-ingles:1-10.005.856-ingles 24/03/14 17:42 Página 17 INST LLER 12.- GENERAL INSTALLATION REQUIREMENTS 12.1- RECOMMEND TIONS For the user This appliance must be installed, adjusted or adapted for use with another type of gas only by a qualified and competent person. Its quality and a correct installation will ensure that your heater works properly. For the installation engineer Gas Safety Installation and Use Regulations It is the law that all gas appliances must be installed by a registered person in...
- Page 18 150mm is required below the heater to allow easy access to the gas isolation cock. 12.5- VENTIL TION REQUIREMENTS The Morco F-11E L is a room sealed appliance and needs no purpose provided combustion air ventilation. 12.6- ELECTRICITY SUPPLY 3 amp fused three pin plug and unswitched shuttered socket outlet (both complying with BS 1363) or a 3 amp fused double pole isolator with a contact separation of 3mm in all poles supplying only the heater should be used.
-
Page 19: Installation Instructions
1-10.010.649-ingles:1-10.005.856-ingles 24/03/14 17:42 Página 19 INST LLER Ensure that the pipe sizing and connections between the supply/bottle regulator and the caravan/vehicle is designed so that no more than a maximum pressure drop of 2.5mbar occurs. The complete installation must be tested for gas soundness. 12.8- W TER SUPPLY cold water supply with a working pressure of a minimum of 0.25 bar, measured at the cold water inlet to the heater is required. - Page 20 1-10.010.649-ingles:1-10.005.856-ingles 24/03/14 17:42 Página 20 INST LLER 13.6- W TER ND G S CONNECTIONS The water and gas pipes must be copper. Do not connect plastic pipes directly to the heater. It is recommended that the copper is extended to below the floor of the caravan/vehicle before connecting to plastic.
- Page 21 1-10.010.649-ingles:1-10.005.856-ingles 24/03/14 17:42 Página 21 INST LLER If the length of the pipe is 1 metre or less, the diaphragm (inner Ø 85 mm) sup- plied in the accessories bag should be fitted.
-
Page 22: Commissioning Instructions
1-10.010.649-ingles:1-10.005.856-ingles 24/03/14 17:42 Página 22 INST LLER 14.- COMMISSIONING INSTRUCTIONS Before commissioning, ensure that the whole gas installation is purged and tested for soundness. IMPORT NT: To prevent damage to the gas valve soundness testing of the system must only be done with the isolation cock on the heater in the closed position. ny over pressure such as is allowable to carry out a pipe soundness test could possibly damage the heater. - Page 23 3-10.010.649-holandes:3-10.005.856-holandes 24/03/14 17:46 Página 60 For more detailed servicing information, workshop manuals, technical advice, spare parts, product training, please ring MORCO on 00 44 1482 325456 or contact us at the address below. Our qualified registered advisors are ready to help you.
