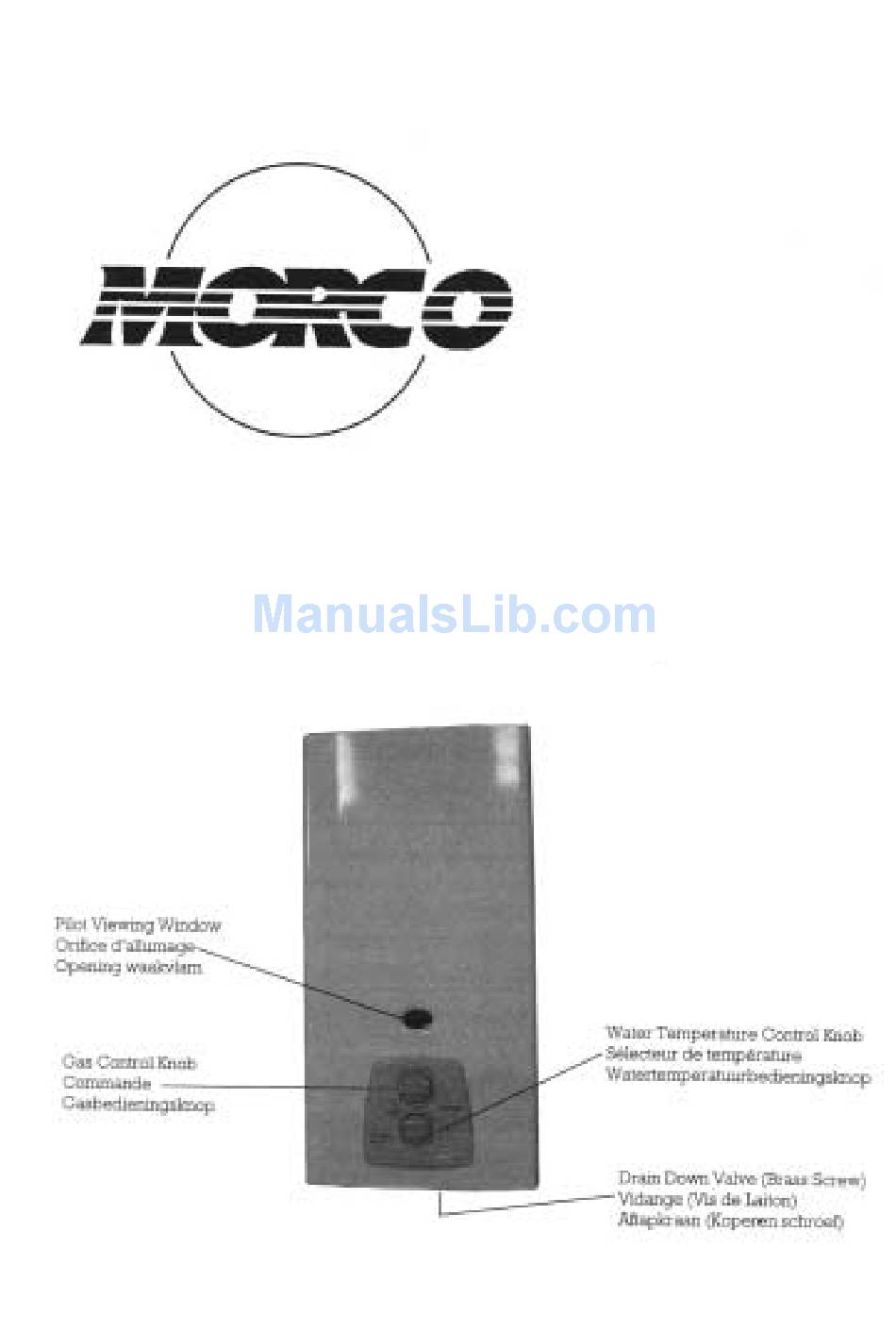

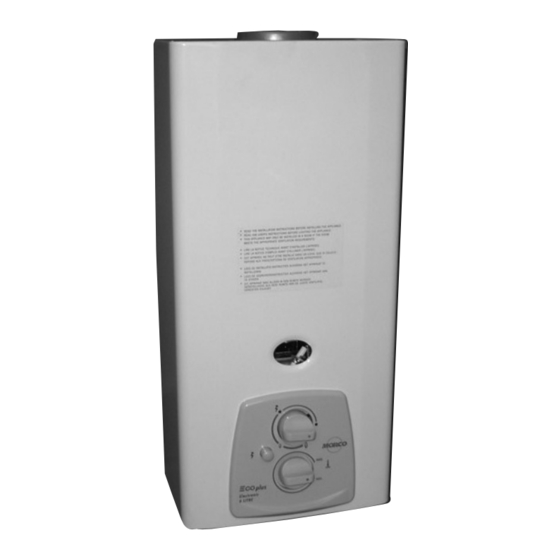

- Page 1 MORCO MODELS D-61B, D-61E G11E 10005246...
- Page 2 INDEX A.- ENGLISH A.1. INSTRUCTIONS FOR USERS ................4 A.2. TECHNICAL INSTRUCTIONS FOR INSTALLATION ENGINEERS ..... 7 A.2.1. TECHNICAL INFORMATION..............7 A.2.2. INSTALLATION INSTRUCTIONS............11 A.2.3. LOOKING AFTER THE APPLIANCE............15 A.2.4. SYMBOLS ....................16 A.2.5. WARRANTY....................16 B.- FRANÇAIS B.1.
- Page 3 MORCO MODELS D-61B, D-61E AND G11E...
- Page 7 A.2.- TECHNICAL INSTRUCTIONS FOR INSTALLATION ENGINEERS A.2.1. Technical information • Shape and outer dimensions Lower of base øE * WW, go connecting with one flexible pipe. G11E D61B/D61E • SPECIFICATIONS • Available calorific power MODELS D61B - D61E G11E Maximum 9,4 kW (135 kcal/min.) 19,2 kW (275 kcal/min.) Minimum...
-
Page 8: Gas Consumption
• GAS CONSUMPTION GAS PRESSURE AT TIPE OF GAS GAS FLOWAT 15ºC and 760 mm Hg APPLIANCE INLET (Standarised gases) (mbar) G11E D61B-D61E Butane 1,8 kg/h. 0,88 kg/h. 28-30 Propane 1,8 kg/h. 0,88 kg/h. Natural 2,3 m — 20-25 • BURNER PRESSURE Butane gas: 27,5 mbar Propane gas: 36,3 mbar Natural gas: 16,4 mbar... -
Page 9: Operation
NOT TO BE INSTALLED IN BATHROOMS Manufactured in Spain exclusively for: Manufactured in Spain exclusively for: MORCO PRODUCTS LIMITED 59 Beberley Road HULL ENGLAND MORCO PRODUCTS LIMITED 59 Beberley Road HULL ENGLAND DATA PLATE G11E BUTANE/PROPANE DATA PLATE G11E NATURAL... -
Page 12: Combustion Gas Removal
• COMBUSTION GAS REMOVAL Flue: A draught diverter is fitted to the top of the water heater. The nominal flue size is 90 mm. (D61B, D61E) and 110 mm. (G11E). In exposed situations, twin- walled flue pipe should be used. A minimum length of vertically rising flue of 600 mm. - Page 13 Fixed ventilation should be provided to avoid draughts as far as possible without impairing the free area of ventilation, even in adverse weather conditions. All permanent openings for ventilation should be designed to prevent the entry of vermin. Where screens are provided, they should not have apertures of less than 6 mm.
- Page 14 ø in mm. MODELS BURNER PILOT D61B-D61E G.L.P. 0,72 (6) 0,19 G11E G.L.P. 0,72 (12) 0,19 G11E Natural 1,18 (12) 0,32...
