Morco EUP11 User, Installation, And Maintenance Manual

Instantaneous gas water heater
Hide thumbs Also See for EUP11:
Table of Contents

Advertisement

Quick Links

EUP11
Instantaneous gas water heater
User, Installation and Maintenance Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EUP11 and is the answer not in the manual?

Questions and answers

Andrew Willis
March 7, 2025

is this an 6 litre or 11 litre please

0
1 comments:
Mr. Anderson
March 7, 2025

The Morco EUP11 is an 11-litre model.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for Morco EUP11

Summary of Contents for Morco EUP11

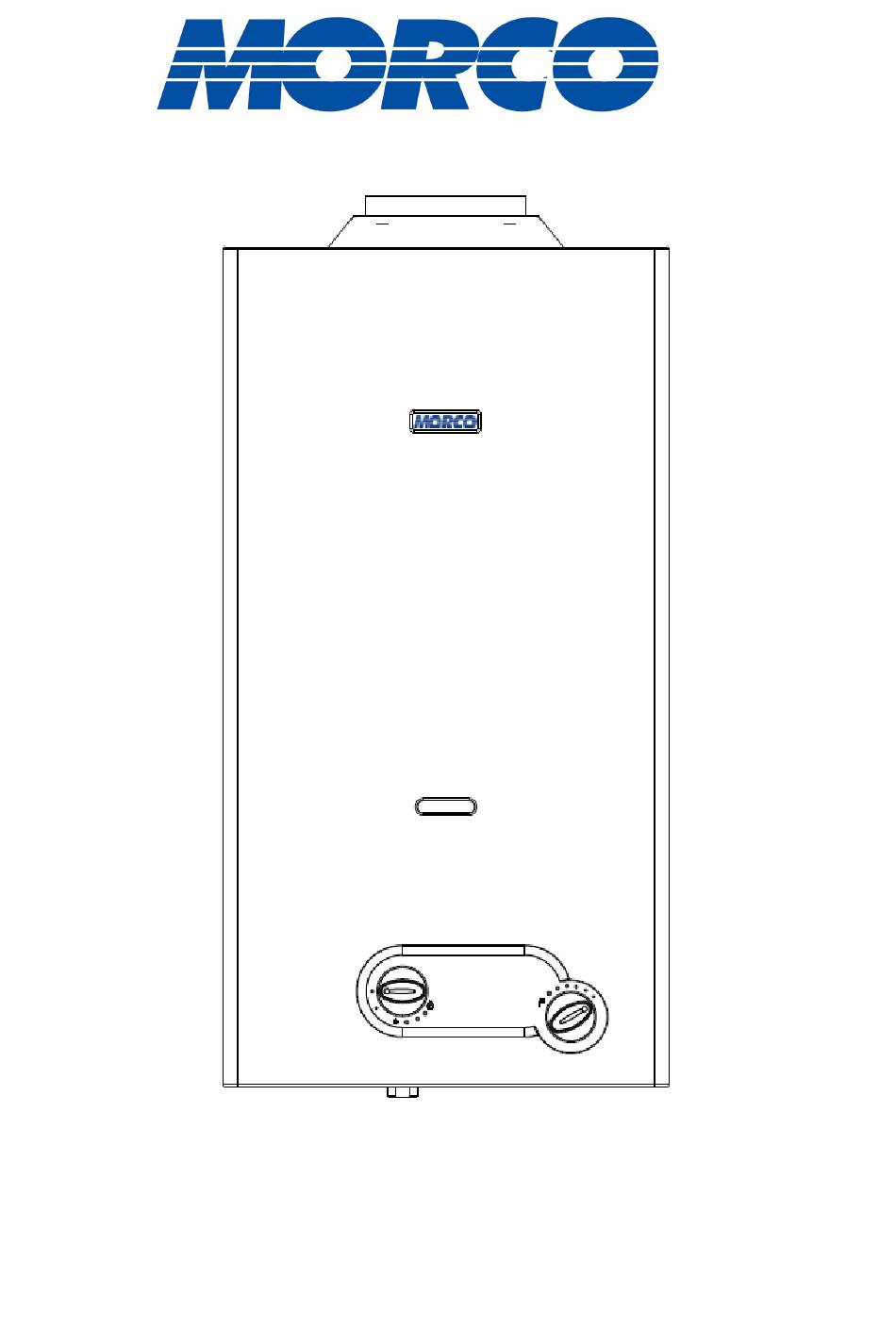

  • Page 1 EUP11 Instantaneous gas water heater User, Installation and Maintenance Manual...
  • Page 2 The energy label carries the information regarding the product’s energy efficiency characteristics. In this way the end consumer can identify and compare similar products and can make informed choices regarding high efficiency appliances. PRODUCT DATASHEET Morco EUP11 Declared load profile Indoor sound power level dB(A) Water heating energy efficiency class...

  • Page 3: Table Of Contents

    When the product has reached the end of its WARNING serviceable life, it shall be disposed of in an environmentally friendly way and disposed of This booklet contains information relevant to the user as according to the regulations in force. well as the installer.

  • Page 4: General Safety Warnings

    DESCRIPTION OF APPLIANCE The Morco EUP11 is an open flued 11 litre instantaneous gas water heater. The air for combustion comes from the external vents in the cupboard that the heater is placed in and hence very careful attention must be paid to providing sufficient ventilation.

  • Page 5: Operation

    1. OPERATION A = Gas control on/off ● off position  activation position minimum gas level maximum gas level B = Water temperature selector fig. 1 1.a. Function The water heater is designed to produce instantaneous hot water. The hot water is delivered to several outlets around the home. If more than one outlet is used at any one time the delivery of hot water will be reduced at each outlet.
  • Page 6 B (Ø) Fig. 2...
  • Page 7 fig. 3 Combustion products safety sensor Flue diverter hood Heat exchanger Burner Water control assembly Water temperature adjustment knob Gas valve Gas Inlet point Burner pressure test point Gas input Gas adjustment screw - should not be adjusted Piezoelectric pilot ignition button Gas adjustment knob Pilot burner Ignition electrode...

  • Page 8: Technical Characteristics

    2. TECHNICAL CHARACTERISTICS 2.a Technical Data kW - kcal/h Nominal power usage (Pn) 19,4 - 16.665 Nominal Thermal range (Qn) 21,7 - 18.662 Minimal power usage (Pm) 9,6 – 8.260 Minimal Thermal range (Qm) 10,8 – 9.288 PROPANE BUTANE GAS TYPE P.C.I.

  • Page 9: Installation

    3. INSTALLATION 3.c Room ventilation 3.a Regulations The installation of the water heater must comply with regulations in The use of gas devices is controlled by precise regulations. force including any updates. See page 3 Installation of liquified petroleum gas (L.P.G) must comply with all Warning: This device can only be installed in venues that are the manufacturer’s requirements and those of the regulations.

  • Page 10: Water Connection

    3.e Water connection Connect the water heater to the water supply. From the front, the cold water input is on the right and the hot water output is on the left. Insert the filter into the water valve input fitting. Remove the plastic cap from the water outputs fitting before connecting it to the water supply.

  • Page 11: Maintenance

    4. MAINTENANCE 4.a Removing the casing To remove the outer casing follow the steps below: To maintain the machine at maximum efficiency, have Gas Safe - Remove the selector knobs (A and B) Engineer or other qualified personnel perform a maintenance - Remove the screws (C) check at least once a year.

  • Page 12: For The Engineer

    FOR THE ENGINEER STARTING UP THE APPLIANCE AND FINAL CHECKS • CLEANING THE MAIN BURNER Start the appliance by following the directions given in section 1b, “Usage”, checking that the appliance is working correctly. Pay To carry out the annual cleaning of the burner, proceed as follows: special attention to the colour of the flames ensuring there is no yellow- ness which would indicate burner venturis blocked by insect –...

  • Page 13: Winterisation

    WINTERISATION Winterisation of Holiday Homes That Have a Water Heater Fresh water freezes at 0°C and expands by 9% with a significant force that will destroy: • Pipe work • Water heater components • Taps, and shower valves DRAIN DOWN If you leave fresh water in your caravan system over the winter you will run the risk of damage.

  • Page 14: Warranty

    (Installation and Use) act of 1998. The guarantee does not cover defects caused by lack of maintenance. Morco Products Ltd. warranty will cover parts and labour if the appliance has been fitted as part of the original equipment in a caravan holiday home or leisure accommodation vehicle.
  • Page 16 Supplied by Innovita Italy Distributed in U.K. by: MORCO PRODUCTS LTD Morco House Riverview Road Beverley East Yorkshire HU17 0LD ENGLAND Telephone Number: 01482 325456 Fax Number: 01482 212869 Web Address: www.morcoproducts.co.uk...
