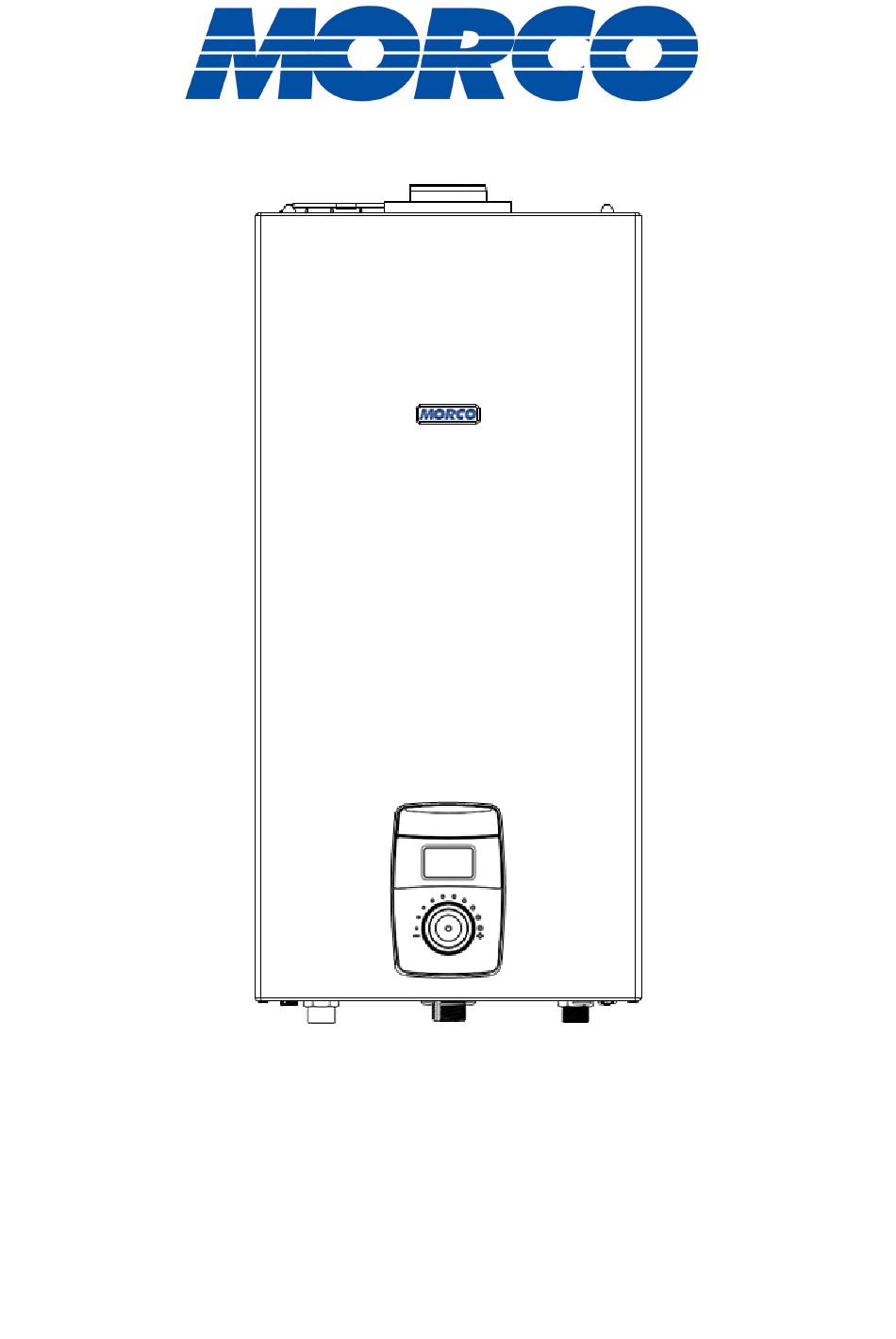

- Page 1 EUP11RS Instantaneous gas water heater User, Installation and Maintenance Manual...
-
Page 2: Table Of Contents
When the product has reached the end of its serviceable life, it shall be disposed of in an WARNING environmentally friendly way and disposed of This booklet contains information relevant to the user as according to the regulations in force. well as the installer. -
Page 3: Certification
The energy label carries the information regarding the product’s energy efficiency characteristics. In this way the end consumer can identify and compare similar products and can make informed choices regarding high efficiency appliances. PRODUCT DATASHEET Morco EUP11RS Declared load profile Indoor sound power level dB(A) Water heating energy efficiency class... -
Page 4: General Warning And Safety
In parts of the manual the following symbols are used: WARNING = for actions that require caution and adequate preparation PROHIBITED = for actions that MUST NOT be performed GENERAL WARNINGS AND SAFETY The User, Installation and Maintenance Manual is an integral part At the end of its life span the product must not be disposed of the product and must therefore be carefully stored and always of as solid urban waste but must be removed to a recycling... -
Page 5: Description Of The Appliance
DESCRIPTION OF THE APPLIANCE The Morco EUP11RS is a room sealed, fan flued instantaneous gas water heater. This means its operation is independent of the room it is installed in as the air for combustion is obtained from outside the home and the flue gases are expelled outside the home. It is therefore suitable for use in Leisure Accommodation Vehicles (LAVs) such as boats and caravan holiday homes. -
Page 6: Water Temperature Adjustment
Fig. 2 - Display appliance off (OFF) Fig 3 – Display of Appliance during operation Water temperature adjustment The target water temperature can be set between 37 and 60°C. Depending upon the incoming cold water temperature and flow restrictors fitted to hot water outlets, this temperature may not always be achieved. -
Page 7: Components And Diagrams
COMPONENTS AND DIAGRAMS Hydraulic circuit Water heater components Fig. 5 - Hydraulic circuit Fig. 4 - Water heater components Heat exchanger Burner Flow Regulator Thermistor Flow turbine Limit Stat Gas valve Hot Water Outlet Gas Inlet Cold Water Inlet Legend 1. - Page 8 External dimensions and distances between gas and water connections Fig. 6 - Installation sizes - Measurements in mm...
-
Page 9: Installation
Wiring diagram Fig. 7 - Wiring diagram Legend EL Ignition Electrode TR Spark Generator F Fan FX Flow Turbine LT Hi-Limit Stat SP Thermistor GV Gas valve BLUE BROWN BROWN BLUE BROWN BLUE Installation General Considerations For the installation engineer Gas Safety Installation and Use Regulations It is the law that all gas appliances must be installed by a registered person in accordance with the above regulations. -
Page 10: Wall Mounting
Wall mounting Connection of the water heater to the water, gas and flue gas exhaust systems and the room where the heater is to Precautions be installed must comply with the rules and regulations in The appliance must be installed on a suitable wall that allows for the force, see above. -
Page 11: Gas Connection
Gas connection Support bracket Having established the position of the appliance fix the wall The diameter of the gas pipes should be suitably sized to mounting bracket in the appropriate position. accommodate for all of the gas appliances in the home. The most common installation is shown below in Figure 9. - Page 12 60mm Ø tube is for the flue exhaust gas and the outer 100mm Ø tube is for the air inlet. Current flue standards should be adhered to and the flues fitted must be the above supplied by Morco Products as these are CE certified for use with the appliance.
- Page 13 Fig.11 - Top view with distances Fig. 12 - Maximum pipe length (see following table) 90° appliance Length The 90° appliance output pipes/metres curve load loss should NOT be calculated output curve load loss should NOT be Maximum considered length calculated Reference table for maximum workable length based on the selected exhaust type Flue Restrictor...
-
Page 14: Technical Data
TECHNICAL DATA EUP11RS kW - kcal/h Nominal heat input (Qn) 21,5 - 18.490 Nominal output power (Pn) 19,3 - 16.604 Minimum heat input (Qm) 9,5 - 8.170 Minimum output power (Pm) 8,6 - 7.353 PROPANE BUTANE GAS TYPE P.C.I. (15° C 1013 mbar) -
Page 15: Fault Codes
FAULT CODES Fig. 13 - Display appliance shutdown Should the appliance shut down the display shows the letters followed by a fault code which should be consulted in relation to the shutdown. Two types of shutdown are possible: Temporary shutdown (non-permanent). The fault code flashes, shutdown is automatically removed upon resolution of the problem that caused it. - Page 16 Parasitic flame alarm Request the assistance of a Gas Safe Engineer or other qualified personnel. Temporary shutdown Interrupted modulator cable alarm Press and hold the reset button . As soon as the letters appear on the display, release the button. The appliance automatically restarts.
-
Page 17: Winterisation
Alarm fan hall effect speed sensor Request the assistance of a Gas Safe Engineer or other qualified personnel. Permanent shutdown High temperatures Request the assistance of a Gas Safe Engineer or other qualified personnel. Display Software fault alarm, PCB start-up Request the assistance of a Gas Safe Engineer or other qualified personnel. - Page 18 (Installation and Use) act of 1998. The guarantee does not cover defects caused by lack of maintenance. Morco Products Ltd. warranty will cover parts and labour if the appliance has been fitted as part of the original equipment in a caravan holiday home or leisure accommodation vehicle.
- Page 20 Supplied by Innovita Italy Distributed in U.K. by: MORCO PRODUCTS LTD Morco House Riverview Road Beverley East Yorkshire HU17 0LD ENGLAND Telephone Number: 01482 325456 Fax Number: 01482 212869 Web Address: www.morcoproducts.co.uk...
