Summary of Contents for Morco F-11E

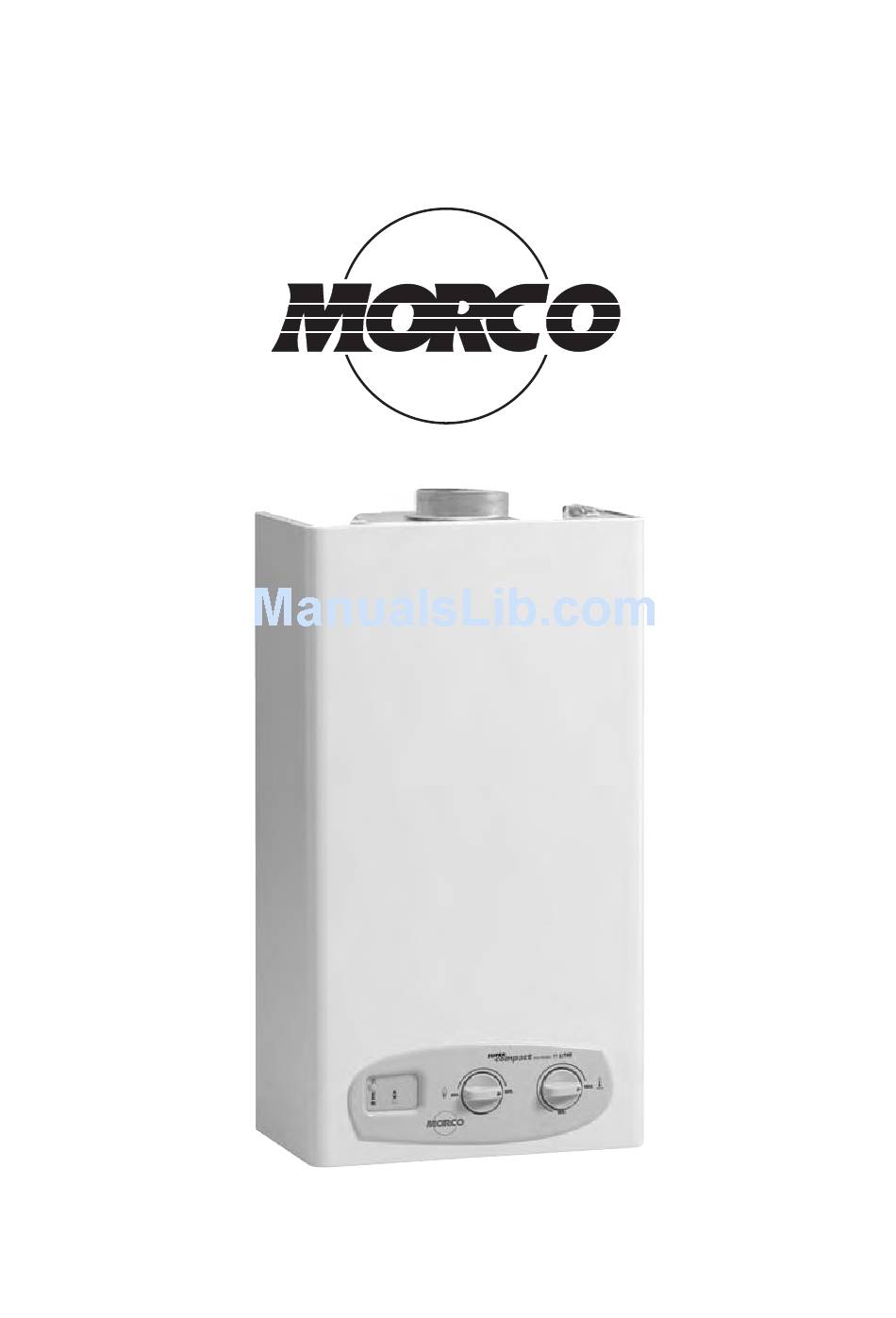

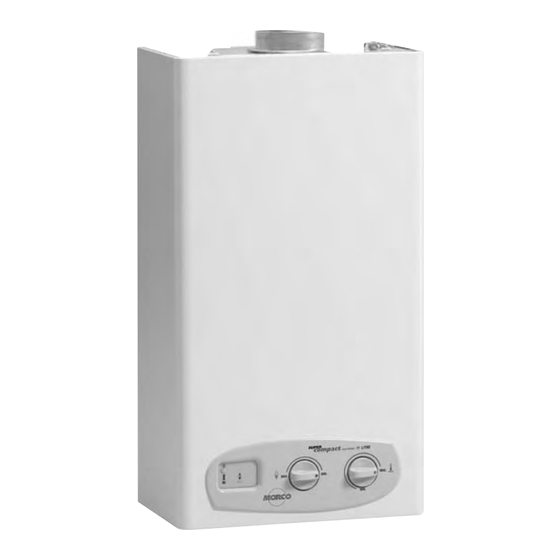

- Page 1 INSTALLATION AND USERS’ MANUAL F-11E SUPER COMPACT ROOM SEALED WATER HEATER 10.005.856...
-
Page 3: Table Of Contents
CONTENTS/SOMMAIRE/INHOUDSOPGAVE ENGLISH: USERS INSTRUCTIONS 1.- CONTROL PANEL ................... 4 2.- STARTING UP THE APPLIANCE ................. 4 3.- OPERATION ....................4 4.- MAINTENANCE ..................... 6 5.- FROST PROTECTION..................7 TECHNICAL INSTRUCTIONS 6.- DESCRIPTION OF THE APPLIANCE ..............8 7.- TECHNICAL CHARACTERISTICS ............... 10 8.- FUNCTIONAL DIAGRAM ................. -
Page 4: Control Panel
USER 1.- CONTROL PANEL 1.- Variable power selector 2.- Water temperature selector 3.- ON-OFF button 4.- Red ‘LOCKOUT’ indicator LED 5.- Orange burner ON indicator LED 2.- STARTING UP THE APPLIANCE IMPORTANT: The installer must explain to the user how the water heater functions, including its safety devices and the instructions for use. - Page 5 ON-OFF button to restart. The red LED should now be off and the heater should ignite when the hot tap is opened. If the heater locks out persistently, call your installer or MORCO on 01482 325456 for details of your nearest service agent.
-
Page 6: Maintenance
Note: before carrying out any maintenance or repair operations, the heater MUST be disconnected from the mains electric, and the gas and water supply. MORCO recommends yearly inspection of the heater by a qualified and competent service engineer. The following inspections should be carried out: •... -
Page 7: Frost Protection
USER 5.- FROST PROTECTION During freezing cold weather, the appliance must be drained down, leaving the appliance undrained during freezing conditions, will result in the appliance being frost damaged. It must be drained down in the following way: • Turn off the gas and electrical supply. •... -
Page 8: Description Of The Appliance
INSTALLER 6.- DESCRIPTION OF THE APPLIANCE This is a room-sealed fan flued water heater with electronic direct ignition with ionisation safety. It is mains powered and has a mechanically modulating gas valve responding to water flow rate. Its room sealed combustion chamber, equipped with a fan for the intake of air from the outside and the removal of combustion products to the outside, enables it to function totally independently of the room in which it is installed. - Page 9 INSTALLER MAIN COMPONENTS: 1. FRAME including water heater hanging bar. 2. SEALED CHAMBER BASE, forming the combustion chamber together with the cover. 3. FLUE EXTRACTOR UNIT equipped with an extractor body, fan, air pressure switch and Ø 60-100 coaxial output. 4.
-
Page 10: Technical Characteristics
INSTALLER 7.- TECHNICAL CHARACTERISTICS Certification, Category and Type Modelo F-11E EC type test certificate 99BO814 Category 3B/P Country of destination BE,FR ES,GB,IE,IT,PT BE,ES,FR,GB,IE,IT,PT Type Degree of electrical protection IP-44 Symbol Units Model F-11E Power and energy consumption Nominal output power 19,2 Mínimum output power... -
Page 11: Functional Diagram
INSTALLER 8 .- FUNCTION DIAGRAM 1.- Gas inlet 2.- Water inlet 3.- Gas filter 4.- Lower body 5.- Upper body 6.- Water regulator 7.- Pressure test point 8.- Water filter 9.- Power selector 10.- Servovalve 11.- Injector 12.- Distributor 13.- Main body 14.- Electrode unit 15.- Supply and fan control circuit 16.- Burner... -
Page 12: Electrical Diagram
INSTALLER 9 .- ELECTRICAL DIAGRAM 1.- ON/OFF button 8.- Ionisation electrode 2.- Power supply connector 9.- Confirmation electrode 3.- Servovalve 10.- Spark electrode 4.- Micro switch 11.- Red LOCKOUT indicator LED 5.- Power supply and fanl control circuit 12.- Orange burner ON indicator LED 6.- Air pressure switch 13.- Water flow switch 7.- Fan... -
Page 13: Appliance Dimensions
INSTALLER 10.- APPLIANCE DIMENSIONS Wei g ht Dimensions (mm) MODEL (kg) 11 Litre 15,5 330 595 230 247 60- 1 00 25 122 230 8 50 513 50 61,5 592 75 14,5 143 125 143... -
Page 14: General Installation Requirements
INSTALLER 11.- GENERAL INSTALLATION REQUIREMENTS 11.1- RECOMMENDATIONS For the user This appliance must be installed, adjusted or adapted for use with another type of gas only by a qualified and competent person. Its quality and a correct installation will ensure that your heater works properly. For the installation engineer Gas Safety Installation and Use Regulations It is the law that all gas appliances must be installed by a registered person in... - Page 15 150mm is required below the heater to allow easy access to the gas isolation cock. 11.5- VENTILATION REQUIREMENTS The Morco F-11E is a room sealed appliance and needs no purpose provided combustion air ventilation. 11.6- ELECTRICITY SUPPLY A 3 amp fused three pin plug and unswitched shuttered socket outlet (both complying with BS 1363) or a 3 amp fused double pole isolator with a contact separation of 3mm in all poles supplying only the heater should be used.
-
Page 16: Installation Instructions
INSTALLER Ensure that the pipe sizing and connections between the supply/bottle regulator and the caravan/vehicle is designed so that no more than a maximum pressure drop of 2.5mbar occurs. The complete installation must be tested for gas soundness. 11.8- WATER SUPPLY A cold water supply with a working pressure of a minimum of 0.18 bar, measured at the cold water inlet to the heater is required. - Page 17 Mount the gas and temperature dial knobs. 12.7- FLUE SYSTEM The standard horizontal flue kit for the F-11E is part number RSF003. There are various other options available, including a vertical flue kit and other variations on the horizontal kit. Please ask for details. Never use a flue kit not specifically approved for use with this appliance.
- Page 18 INSTALLER If the length of the pipe is 1 metre or less, the diaphragm (inner Ø 85 mm) sup- plied in the accessories bag should be fitted.
-
Page 19: Commissioning Instructions
INSTALLER 13.- COMMISSIONING INSTRUCTIONS Before commissioning, ensure that the whole gas installation is purged and tested for soundness. IMPORTANT: To prevent damage to the gas valve soundness testing of the system must only be done with the isolation cock on the heater in the closed position. Any over pressure such as is allowable to carry out a pipe soundness test could possibly damage the heater. -
Page 20: Instructions D'utilisation 1.- Panneau De Commande
For more detailed servicing information, workshop manuals, technical advice, spare parts, product training, please ring MORCO on 00 44 1482 325456 or contact us at the address below. Our qualified registered advisors are ready to help you. Pour plus d’informations sur les notices, les prescriptions techniques, les piè- ces détachées, la formation sur le produit, etc., veuillez appeler MORCO au...
