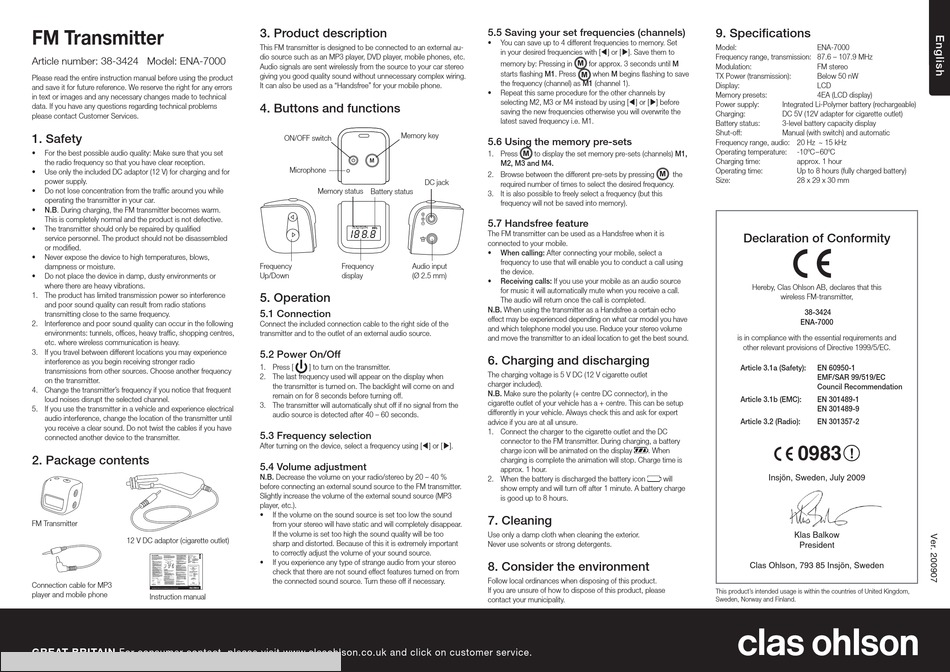

Clas Ohlson ENA-7000 User Manual

FM Transmitter
Article number: 38-3424 Model: ENA-7000
Please read the entire instruction manual before using the product
and save it for future reference. We reserve the right for any errors
in text or images and any necessary changes made to technical
data. If you have any questions regarding technical problems
please contact Customer Services.
1. Safety
• For the best possible audio quality: Make sure that you set
the radio frequency so that you have clear reception.
• Use only the included DC adaptor (12 V) for charging and for
power supply.
• Do not lose concentration from the traffic around you while
operating the transmitter in your car.
• N.B. During charging, the FM transmitter becomes warm.
This is completely normal and the product is not defective.
• The transmitter should only be repaired by qualified
service personnel. The product should not be disassembled
or modified.
• Never expose the device to high temperatures, blows,
dampness or moisture.
• Do not place the device in damp, dusty environments or
where there are heavy vibrations.
1. The product has limited transmission power so interference
and poor sound quality can result from radio stations
transmitting close to the same frequency.
2. Interference and poor sound quality can occur in the following
environments: tunnels, offices, heavy traffic, shopping centres,
etc. where wireless communication is heavy.
3. If you travel between different locations you may experience
interference as you begin receiving stronger radio
transmissions from other sources. Choose another frequency
on the transmitter.
4. Change the transmitter's frequency if you notice that frequent
loud noises disrupt the selected channel.
5. If you use the transmitter in a vehicle and experience electrical
audio interference, change the location of the transmitter until
you receive a clear sound. Do not twist the cables if you have
connected another device to the transmitter.

2. Package contents

FM Transmitter
12 V DC adaptor (cigarette outlet)
FM Transmitter

3. Product description

5.5 Saving your set frequencies (channels)

9. Specifications

This FM transmitter is designed to be connected to an external au- • You can save up to 4 different frequencies to memory. Set Model: ENA-7000
Article number: 38-3424 Model: ENA-7000 dio source such as an MP3 player, DVD player, mobile phones, etc. Audio signals are sent wirelessly from the source to your car stereo in your desired frequencies with [] or []. Save them to memory by: Pressing in M for approx. 3 seconds until M Frequency range, transmission: 87.6 – 107.9 MHz Modulation: FM stereo
and save it for future reference. We reserve the right for any errors Please read the entire instruction manual before using the product It can also be used as a "Handsfree" for your mobile phone. giving you good quality sound without unnecessary complex wiring. starts flashing M1. Press M when M begins flashing to save the frequency (channel) as M1 (channel 1). Display: TX Power (transmission): Below 50 nW LCD
data. If you have any questions regarding technical problems in text or images and any necessary changes made to technical 4. Buttons and functions • selecting M2, M3 or M4 instead by using [] or [] before Repeat this same procedure for the other channels by Memory presets: Power supply: Integrated Li-Polymer battery (rechargeable) 4EA (LCD display)
please contact Customer Services. saving the new frequencies otherwise you will overwrite the latest saved frequency i.e. M1. Battery status: Charging: 3-level battery capacity display DC 5V (12V adapter for cigarette outlet)
1. Safety ON/OFF switch Memory key 5.6 Using the memory pre-sets Frequency range, audio: 20 Hz -15 kHz Shut-off: Manual (with switch) and automatic
• For the best possible audio quality: Make sure that you set the radio frequency so that you have clear reception. M 1. Press M to display the set memory pre-sets (channels) M1, M2, M3 and M4. Charging time: Operating temperature: approx. 1 hour -10ºC - 60ºC
• Use only the included DC adaptor (12V) for charging and for power supply. Microphone DC jack 2. Browse between the different pre-sets by pressing M the Size: Operating time: Up to 8 hours (fully charged battery) 28 x 29 x 30 mm
• operating the transmitter in your car. Do not lose concentration from the traffic around you while Memory status Battery status 3. It is also possible to freely select a frequency (but this required number of times to select the desired frequency.
• N.B. During charging, the FM transmitter becomes warm. This is completely normal and the product is not defective. frequency will not be saved into memory).
• The transmitter should only be repaired by qualified service personnel. The product should not be disassembled I8 8.8 MI M2 M3 M4 The FM transmitter can be used as a Handsfree when it is 5.7 Handsfree feature

Declaration of Conformity

• or modified. Never expose the device to high temperatures, blows, When calling: After connecting your mobile, select a frequency connected to your mobile.
• dampness or moisture. Do not place the device in damp, dusty environments or Frequency Up/Down Frequency display (Ø 2.5 mm) Audio input to use that will enable you to conduct a call using the device. Receiving calls: If you use your mobile as an audio source for
1. The product has limited transmission power so interference where there are heavy vibrations. 5. Operation will return once the call is completed. music it will automatically mute when you receive a call. The audio Hereby, Clas Ohlson AB, declares that this
and poor sound quality can result from radio stations transmitting close to the same frequency. 5.1 Connection effect may be experienced depending on what car model you have N.B. When using the transmitter as a Handsfree a certain echo wireless FM-transmitter,
2. Interference and poor sound quality can occur in the following environments: tunnels, offices, heavy traffic, shopping centres, Connect the included connection cable to the right side of the transmitter and to the outlet of an external audio source. and move the transmitter to an ideal location to get the best sound. and which telephone model you use. Reduce your stereo volume ENA-7000 38-3424
3. If you travel between different locations you may experience etc. where wireless communication is heavy. 6. Charging and discharging is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
transmissions from other sources. Choose another frequency interference as you begin receiving stronger radio 1. Press [ 5.2 Power On/Off ] to turn on the transmitter. The charging voltage is 5 V DC (12 V cigarette outlet charger Article 3.1a (Safety): EN 60950-1
4. Change the transmitter's frequency if you notice that frequent on the transmitter. 2. The last frequency used will appear on the display when the transmitter is turned on. The backlight will come on and included). N.B. Make sure the polarity (+ centre DC connector), in the EMF/SAR 99/519/EC Council Recommendation
5. If you use the transmitter in a vehicle and experience electrical loud noises disrupt the selected channel. 3. The transmitter will automatically shut off if no signal from the remain on for 8 seconds before turning off. cigarette outlet of your vehicle has a + centre. This can be setup differently in your vehicle. Always check this and ask for expert Article 3.1b (EMC): EN 301489-1
you receive a clear sound. Do not twist the cables if you have audio interference, change the location of the transmitter until audio source is detected after 40 – 60 seconds. 1. Connect the charger to the cigarette outlet and the DC advice if you are at all unsure. Article 3.2 (Radio): EN 301357-1 EN 301489-9
connected another device to the transmitter. After turning on the device, select a frequency using [] or []. 5.3 Frequency selection connector to the FM transmitter. During charging, a battery charge icon will be animated on the display . When EN 301357-2
2. Package contents 5.4 Volume adjustment charging is complete the animation will stop. Charge time is approx. 1 hour.
N.B. Decrease the volume on your radio/stereo by 20 – 40 % 2. When the battery is discharged the battery icon show empty and will turn off after 1 minute. A battery charge will
Slightly increase the volume of the external sound source (MP3 before connecting an external sound source to the FM transmitter. is good up to 8 hours.
Connection cable for MP3 FM Transmitter • player, etc.). If the volume on the sound source is set too low the sound 7. Cleaning
12 V DC adaptor from your stereo will have static and will completely disappear. If the volume is set too high the sound quality will be too Use only a damp cloth when cleaning the exterior. Never use solvents or strong detergents.
(cigarette outlet) sharp and distorted. Because of this it is extremely important to correctly adjust the volume of your sound source. 8. Consider the environment
Connection cable for MP3 Instruction manual • check that there are not sound effect features turned on from If you experience any type of strange audio from your stereo Follow local ordinances when disposing of this product.
player and mobile phone the connected sound source. Turn these off if necessary. If you are unsure of how to dispose of this product, please contact your municipality.
GREAT BRITAIN For consumer contact, please visit www.clasohlson.co.uk and click on customer service.
player and mobile phone
Instruction manual
GREAT BRITAIN For consumer contact, please visit www.clasohlson.co.uk and click on customer service.
3. Product description
This FM transmitter is designed to be connected to an external au-
dio source such as an MP3 player, DVD player, mobile phones, etc.
Audio signals are sent wirelessly from the source to your car stereo
giving you good quality sound without unnecessary complex wiring.
It can also be used as a "Handsfree" for your mobile phone.
4. Buttons and functions
Memory key
ON/OFF switch
M
M
Microphone
DC jack
Memory status Battery status
MI M2 M3 M4
MI M2 M3 M4
I8 8.8
I8 8.8
Frequency Frequency Audio input
Up/Down display (Ø 2.5 mm)
5. Operation
5.1 Connection
Connect the included connection cable to the right side of the
transmitter and to the outlet of an external audio source.
5.2 Power On/Off
1. Press [ ] to turn on the transmitter.
2. The last frequency used will appear on the display when
the transmitter is turned on. The backlight will come on and
remain on for 8 seconds before turning off.
3. The transmitter will automatically shut off if no signal from the
audio source is detected after 40 – 60 seconds.
5.3 Frequency selection
After turning on the device, select a frequency using [] or [].
5.4 Volume adjustment
N.B. Decrease the volume on your radio/stereo by 20 – 40 %
before connecting an external sound source to the FM transmitter.
Slightly increase the volume of the external sound source (MP3
player, etc.).
• If the volume on the sound source is set too low the sound
from your stereo will have static and will completely disappear.
If the volume is set too high the sound quality will be too
sharp and distorted. Because of this it is extremely important
to correctly adjust the volume of your sound source.
• If you experience any type of strange audio from your stereo
check that there are not sound effect features turned on from
the connected sound source. Turn these off if necessary.
5.5 Saving your set frequencies (channels)
• You can save up to 4 different frequencies to memory. Set
in your desired frequencies with [] or []. Save them to
memory by: Pressing in M for approx. 3 seconds until M
starts flashing M1. Press M when M begins flashing to save
the frequency (channel) as M1 (channel 1).
• Repeat this same procedure for the other channels by
selecting M2, M3 or M4 instead by using [] or [] before
saving the new frequencies otherwise you will overwrite the
latest saved frequency i.e. M1.
5.6 Using the memory pre-sets
1. Press M to display the set memory pre-sets (channels) M1,
M2, M3 and M4.
2. Browse between the different pre-sets by pressing M the
required number of times to select the desired frequency.
3. It is also possible to freely select a frequency (but this
frequency will not be saved into memory).
5.7 Handsfree feature
The FM transmitter can be used as a Handsfree when it is
connected to your mobile.
• When calling: After connecting your mobile, select a
frequency to use that will enable you to conduct a call using
the device.
• Receiving calls: If you use your mobile as an audio source
for music it will automatically mute when you receive a call.
The audio will return once the call is completed.
N.B. When using the transmitter as a Handsfree a certain echo
effect may be experienced depending on what car model you have
and which telephone model you use. Reduce your stereo volume
and move the transmitter to an ideal location to get the best sound.
6. Charging and discharging
The charging voltage is 5 V DC (12 V cigarette outlet
charger included).
N.B. Make sure the polarity (+ centre DC connector), in the
cigarette outlet of your vehicle has a + centre. This can be setup
differently in your vehicle. Always check this and ask for expert
advice if you are at all unsure.
1. Connect the charger to the cigarette outlet and the DC
connector to the FM transmitter. During charging, a battery
charge icon will be animated on the display . When
charging is complete the animation will stop. Charge time is
approx. 1 hour.
2. When the battery is discharged the battery icon will
show empty and will turn off after 1 minute. A battery charge
is good up to 8 hours.
7. Cleaning
Use only a damp cloth when cleaning the exterior.
Never use solvents or strong detergents.
8. Consider the environment
Follow local ordinances when disposing of this product.
If you are unsure of how to dispose of this product, please
contact your municipality.
9. Specifications
Model: ENA-7000
Frequency range, transmission: 87.6 – 107.9 MHz
Modulation: FM stereo
TX Power (transmission): Below 50 nW
Display: LCD
Memory presets: 4EA (LCD display)
Power supply: Integrated Li-Polymer battery (rechargeable)
Charging: DC 5V (12V adapter for cigarette outlet)
Battery status: 3-level battery capacity display
Shut-off: Manual (with switch) and automatic
Frequency range, audio: 20 Hz ~ 15 kHz
Operating temperature: -10ºC–60ºC
Charging time: approx. 1 hour
Operating time: Up to 8 hours (fully charged battery)
Size: 28 x 29 x 30 mm
Declaration of Conformity
Hereby, Clas Ohlson AB, declares that this
wireless FM-transmitter,
38-3424
ENA-7000
is in compliance with the essential requirements and
other relevant provisions of Directive 1999/5/EC.
Article 3.1a (Safety): EN 60950-1
EMF/SAR 99/519/EC
Council Recommendation
Article 3.1b (EMC): EN 301489-1
EN 301489-9
Article 3.2 (Radio): EN 301357-2
0983
!
Insjön, Sweden, July 2009
Klas Balkow
President
Clas Ohlson, 793 85 Insjön, Sweden
This product's intended usage is within the countries of United Kingdom,
Sweden, Norway and Finland.
