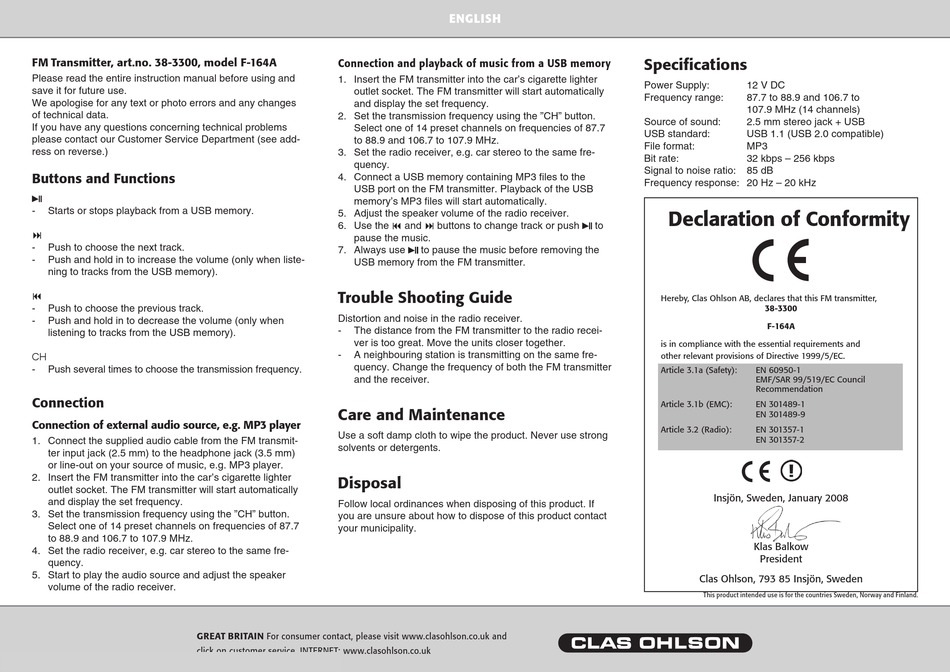

Clas Ohlson F-164A Instruction Manual

FM Transmitter, art.no. 38-3300, model F-164A
Please read the entire instruction manual before using and
save it for future use.
We apologise for any text or photo errors and any changes
of technical data.
If you have any questions concerning technical problems
please contact our Customer Service Department (see add-
ress on reverse.)
Buttons and Functions
- Starts or stops playback from a USB memory.

- Push to choose the next track.
- Push and hold in to increase the volume (only when liste-
ning to tracks from the USB memory).

- Push to choose the previous track.
- Push and hold in to decrease the volume (only when
listening to tracks from the USB memory).
CH
- Push several times to choose the transmission frequency.
Connection
Connection of external audio source, e.g. MP3 player
1. Connect the supplied audio cable from the FM transmit-
ter input jack (2.5 mm) to the headphone jack (3.5 mm)
or line-out on your source of music, e.g. MP3 player.
2. Insert the FM transmitter into the car's cigarette lighter
outlet socket. The FM transmitter will start automatically
and display the set frequency.
3. Set the transmission frequency using the "CH" button.
Select one of 14 preset channels on frequencies of 87.7
to 88.9 and 106.7 to 107.9 MHz.
4. Set the radio receiver, e.g. car stereo to the same fre-
quency.
5. Start to play the audio source and adjust the speaker
volume of the radio receiver.
GREAT BRITAIN For consumer contact, please visit www.clasohlson.co.uk and
click on customer service. INTERNET: www.clasohlson.co.uk
ENGLISH
Connection and playback of music from a USB memory
1. Insert the FM transmitter into the car's cigarette lighter
outlet socket. The FM transmitter will start automatically
and display the set frequency.
2. Set the transmission frequency using the "CH" button.
Select one of 14 preset channels on frequencies of 87.7
to 88.9 and 106.7 to 107.9 MHz.
3. Set the radio receiver, e.g. car stereo to the same fre-
quency.
4. Connect a USB memory containing MP3 fi les to the
USB port on the FM transmitter. Playback of the USB
memory's MP3 fi les will start automatically.
5. Adjust the speaker volume of the radio receiver.
6. Use the  and  buttons to change track or push
pause the music.
7. Always use to pause the music before removing the
USB memory from the FM transmitter.

Trouble Shooting Guide

Distortion and noise in the radio receiver.
- The distance from the FM transmitter to the radio recei-
ver is too great. Move the units closer together.
- A neighbouring station is transmitting on the same fre-
quency. Change the frequency of both the FM transmitter
and the receiver.

Care and Maintenance

Use a soft damp cloth to wipe the product. Never use strong
solvents or detergents.
Disposal
Follow local ordinances when disposing of this product. If
you are unsure about how to dispose of this product contact
your municipality.

Specifications

Power Supply: 12 V DC
Frequency range: 87.7 to 88.9 and 106.7 to
107.9 MHz (14 channels)
Source of sound: 2.5 mm stereo jack + USB
USB standard: USB 1.1 (USB 2.0 compatible)
File format: MP3
Bit rate: 32 kbps – 256 kbps
Signal to noise ratio: 85 dB
Frequency response: 20 Hz – 20 kHz

Declaration of Conformity

to
Hereby, Clas Ohlson AB, declares that this FM transmitter,
38-3300
F-164A
is in compliance with the essential requirements and
other relevant provisions of Directive 1999/5/EC.
Article 3.1a (Safety): EN 60950-1
EMF/SAR 99/519/EC Council
Recommendation
Article 3.1b (EMC): EN 301489-1
EN 301489-9
Article 3.2 (Radio): EN 301357-1
EN 301357-2
Insjön, Sweden, January 2008
Klas Balkow
President
Clas Ohlson, 793 85 Insjön, Sweden
This product intended use is for the countries Sweden, Norway and Finland.
