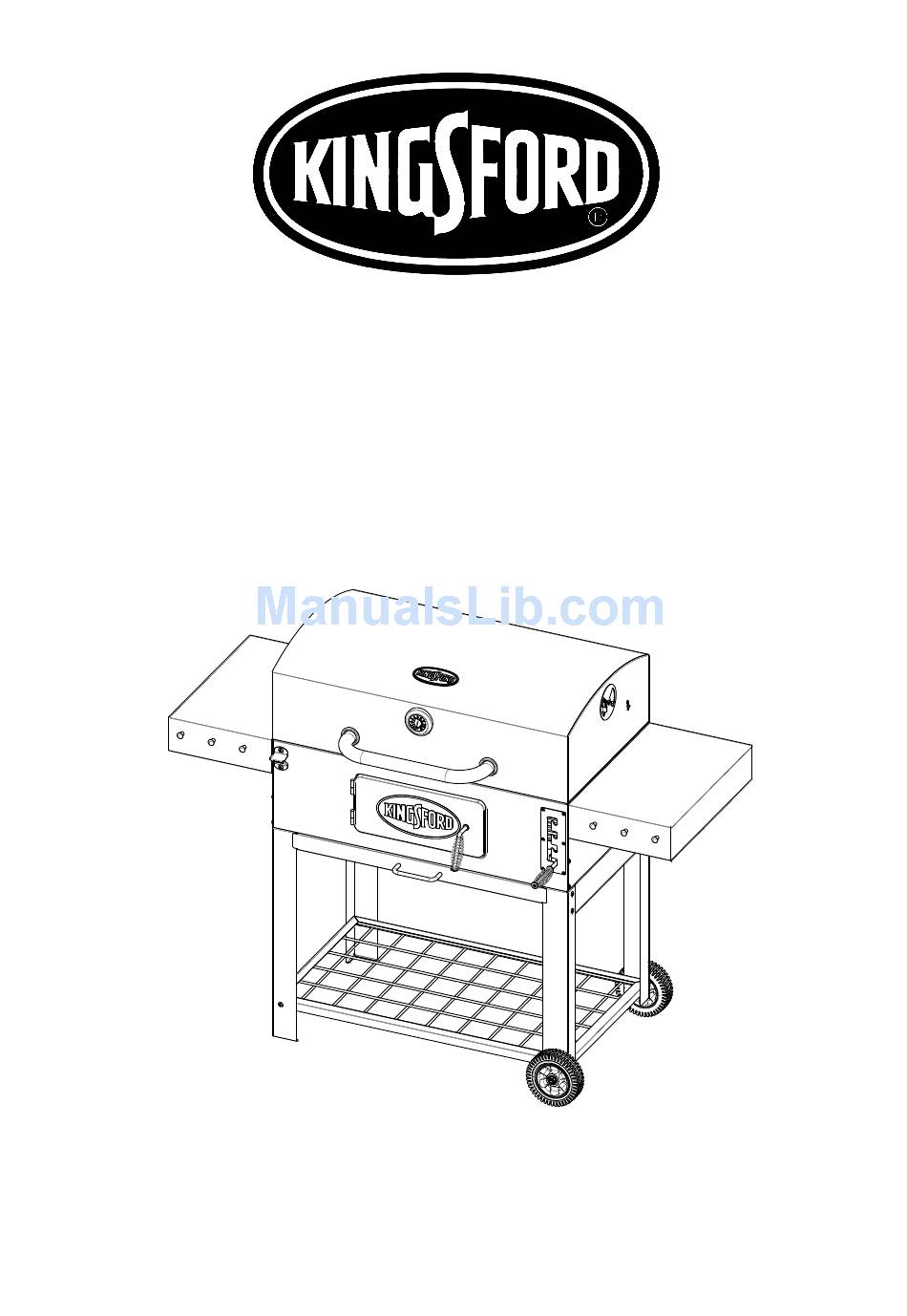

- Page 1 KF LARIAT CHARCOAL GRILL BLACK Owner’s Manual Assembly and Operating Instructions Model Number # CG2203801-KF Tools required for assembly: (Not Included) Pliers, Philips & Flathead Screwdrivers, Adjustable Wrench. Keep this manual for future reference. 1 of 27 20151102-V0...
- Page 2 WARNING Only use this grill on a hard, level, non-combustible, stable surface (concrete, ground, etc.) capable of supporting the weight of the grill. Never use on wooden or other surfaces that could burn. When grill is in use, keep clearance of 36” between the hot grill and any combustible materials, such as bushes, trees, wooden decks, wooden fences, buildings, etc.
-
Page 3: California Proposition 65 Warning
WARNING When grilling, grease from meat may drip into the charcoal and cause a grease fire. If this should happen close lid to suffocate the flame. Do not use water to extinguish grease fires. Use caution when opening the lid, keep hands, face and body a safe distance away. Flash flare ups may occur when air comes into contact with fire or hot coals. -
Page 4: Assembly Instructions
ASSEMBLY INSTRUCTIONS THANK YOU FOR PURCHASING THIS KF LARIAT CHARCOAL GRILL BLACK Read all safety warnings & assembly instructions carefully before assembling or operating your grill. customerservice@rankam.com For missing parts, please call customer service at at 888-837-1380 (U.S. only) Mon to Fri, 8:00 a.m. – 5:00 p.m. Pacific Standard Time. (Proof of purchase will be required.) Inspect contents of the box to ensure all parts are included and undamaged. -
Page 5: Product Diagram
Product Diagram 5 of 27 20151102-V0... -
Page 6: Component List
Component List 1. Front Panel 2. Back Panel 3. Left Panel 4. Right Panel 1 pc 1 pc 1 pc 1 pc 5. Left Front Leg 6. Left Rear Leg 7. Right Front Leg 8. Right Rear Leg 1 pc 1 pc 1 pc 1 pc... - Page 7 25. Left Holder 26. Right Holder 27. Air Vent 28. Wheel 1 pc 1 pc 4 pcs 2 pcs 29. Lid Handle 30. Bezel 31. Upper Hinge 32. Lower Hinge 1 pc 2 pcs 2 pcs 2 pcs 33. Door Latch 34.
- Page 8 Hardware List Item No. Item name Diagram BOLT M6x35 BOLT M6x15 BOLT M6x12 BOLT M5x12 LOCK NUT M10 LOCK NUT M8 FLANGE NUT M6 LOCK NUT M6 FLANGE NUT M4 WASHER ID10 8 of 27 20151102-V0...
- Page 9 WASHER ID8 WASHER ID6 HINGE PIN HINGE PIN COTTON PIN Assembly Procedures Symbol: The following symbols will be shown in each procedure for indication of tightening the bolt and nut if necessary. Hand Tighten only at this time Tighten with tools at this time Some steps may require the assistance of a friend.
- Page 10 Assembly Procedures Step 1. Assembly Left Panel (3) and Right Panel (4) to Front Panel (1) and Back Panel (2) with Bolt B Step 2. Assembly Left Front Leg (5) , Left Rear Leg (6) , Right Front Leg (7) and Right Rear Leg (8) to Grill Body with Bolt B 10 of 27 20151102-V0...
- Page 11 Step 3. Assembly Reinforcement (20) to Left Front & Rear Leg and Right Front & Rear Leg with Bolt B and Nut G. Step 4. Assembly Bottom Rack (9) to the Legs with Bolts B 11 of 27 20151102-V0...
- Page 12 Step 5. Tighten the bolts and nuts in steps 1, 2, 3 and 4 Step 6. Assembly Wheel (28) with Axle (17) , Nut E and Washer K Step 7. Assembly Air Vent (27) to Grill Body with Bolt B and Nut H 12 of 27 20151102-V0...
- Page 13 Step 8. Assembly Charcoal Tray Arm (22) to Left Holder (25) and Right Holder (26) respectively with Hinge Pin P , Cotton Pin Q and Washer M Step 9. Assembly the Left Holder (25) and Right Holder (26) to Grill Body with Bolt B and Nut G 13 of 27 20151102-V0...
- Page 14 Step 10. Assembly the Charcoal Tray Bar (18) to Connector (23) and Lifting Arm (21) with Washer M , Hinge Pin P and Cotton Pin Q Step 11. Assembly the Charcoal Tray Bar (18) and Lifting Arm (21) to Grill Body with Washer M and Cotton Pin Q 14 of 27 20151102-V0...
- Page 15 Step 12. Assembly the Charcoal Tray (10) to the Grill Body with Washer M , Hinge Pin P and Cotton Pin Q Step 13. Assembly Cool Touch Handle (24) to Lifting Arm (21) with Cotton Pin Q 15 of 27 20151102-V0...
- Page 16 Step 14. Assembly Door Latch (33) and Lock Plate (34) to Front Door (19) with Washer L and Lock Nut F Assembly Front Door (19) to the Grill Body Step 15. Assembly Lower Hinge (32) to Grill Body with Bolt A and Nut G Assembly Bottle Opener (36) to Grill Body with Bolt C and Nut G 16 of 27 20151102-V0...
- Page 17 Step 16. Assembly the Hanger (37) to the Left Side Shelf (11) and Right Side Shelf (12) with Nut J Step 17. Assembly the Left Side Shelf (11) and Right Side Shelf (12) to the Grill Body with Bolt B 17 of 27 20151102-V0...
- Page 18 Step 18. Assembly Lid Handle (29) to Lid (13) with Bezel (30) and Bolt B. Assembly Air Vent (27) to Lid (13) with Bolt B and Nut H. Assembly Upper Hinge (31) to the Lid (13) with Bolt A and Nut G Assembly Temperature Gauge (38) to the Lid (13) Step 19.
- Page 19 Step 20. Assembly warming rack (14) to the grill with Cotton Pin Q Step 21. Assembly Handle (35) to Ash Pan (15) with Bolt D 19 of 27 20151102-V0...
- Page 20 Step 22. Assembly cooking grid (16) and Ash Pan (15) Final assembly 20 of 27 20151102-V0...
-
Page 21: Preparation For Use & Lighting Instructions
WARNING Place the grill outdoors on a hard, level, non-combustible surface away from roof overhang or any combustible material. Never use on wooden or other surfaces that could burn. Place the grill away from open windows or doors to prevent smoke from entering your house. In windy weather, place the grill in an outdoor area that is protected from the wind. -
Page 22: Operating Instructions
IF USING CHARCOAL CHIMNEY STARTER, PROCEED TO STEP 5. If you choose to use charcoal lighting fluid, ONLY use charcoal lighting fluid approved for lighting charcoal. Do not use gasoline, kerosene, alcohol or other flammable material for lighting charcoal. Follow all manufacturer’s warnings and instructions regarding the use of their product. - Page 23 Flip the chimney over and add charcoal. Take care so that the newspaper does not fall out. Use a match or long lighter to light the paper. Stand back and watch the charcoal chimney starter do its stuff. After charcoal has turned an ash gray color, carefully pour the charcoal onto your grill’s fire grate. NOTE: to extend the life of your grill, make sure that hot coals and wood do not touch the walls of grill.
-
Page 24: Flavoring Wood
Flavoring Wood To obtain your favorite smoke flavor, experiment by using chunks, sticks or chips of flavor producing wood such as hickory, pecan, apple, cherry, or mesquite. Most fruit or nut tree wood may be used for smoke flavoring. Do not use resinous wood such as pine as it will produce an unpleasant taste. -
Page 25: After-Use Safety
WARNING Never add charcoal lighting fluid to hot or even warm coals as flashback may occur causing severe burns. Step 4 When charcoal is burning strong again, wear oven mitts/gloves and carefully return the charcoal grates to grill body. Extinguish any hot ashes, coals or embers which may have fallen from the grill or beneath and around grill using water hose. -
Page 26: Limited Warranty
LIMITED WARRANTY Manufacturer warrants this Product to be free from defects in workmanship and materials for a period of Ninety (90) days from the date of purchase, PROVIDED claims are submitted, in writing, with proof of purchase. If any part of this item fails because of a manufacturing defect within the Limited Warranty Period, Manufacturer offers to replace such part(s) provide that such parts have not been improperly repaired, altered, or tampered with or subject to misuse, abuse or exposed to corrosive conditions. - Page 27 Should you encounter any problem, Obtain replacement parts CALL US FIRST. Do not return product to the store. WE CAN HELP. Rankam Metal Products Manufactory Ltd 1618 W. Rosecrans Ave., Gardena, CA90249, Please contact Customer Service at: customerservice@rankam.com or at 1-888-837-1380 Hours of Operation: Mon to Fri, 8:00 a.m.
