1.2.2 Interfaces and Buttons

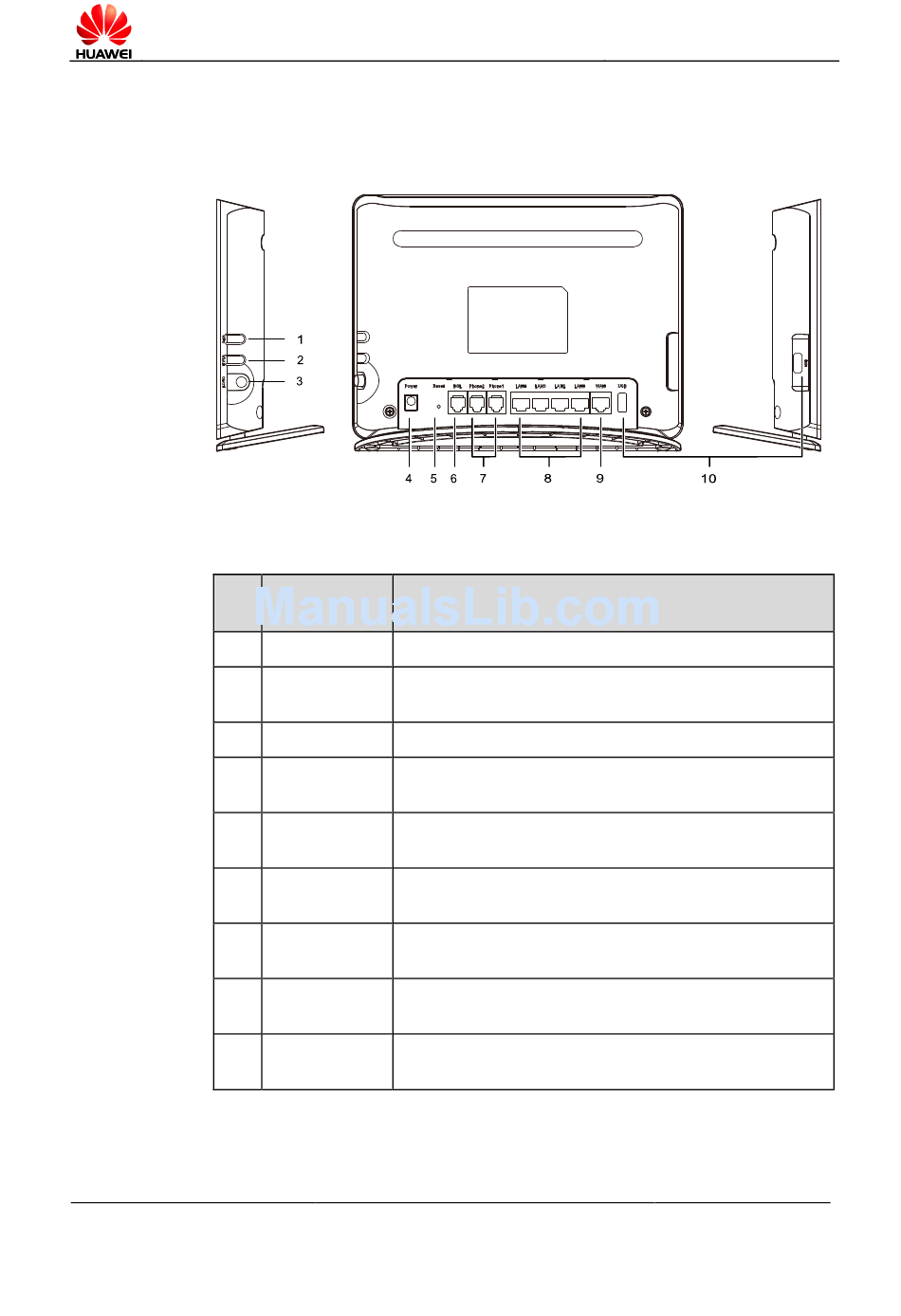

Figure 1-3 Interfaces and buttons on the eircom F2000 eFibre Modem
Table 1-2 Interfaces and buttons on the eircom F2000 eFibre Modem
No.
1
2
3
4
5
6
7
8
9
Issue: 01 (2014-09-30)
Interfaces Description
and buttons
WPS button Which is used to enable the WPS negotiation function.
WLAN button Which is used to enable or disable wireless network
function quickly.
On/Off button Which is used to power on or off the eircom F2000.
Power interface Which is used to connect the eircom F2000 to the power
adapter.
Reset button Which is used to restore the factory settings of the eircom
F2000.
DSL interface Which is used to connect the eircom F2000 to the MODEM
interface on the splitter or to the telephone jack on the wall.
Phone Which are used to connect the eircom F2000 to the
interfaces telephone.
LAN interfaces Which are used to connect the eircom F2000 to the
Ethernet interface on the computer.
WAN Which is used to connect the eircom F2000 to the network.
interfaces
