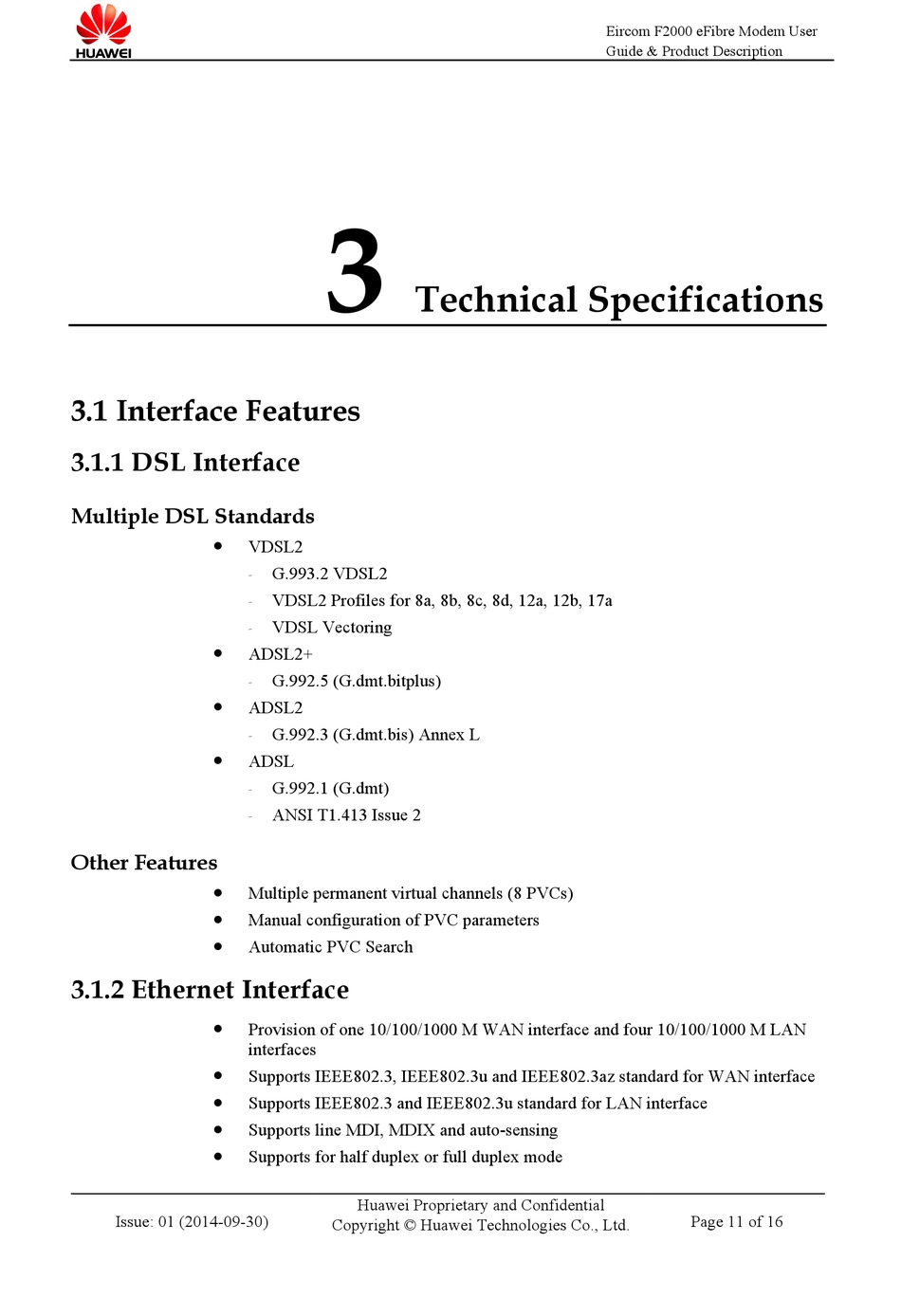

3.1 Interface Features

3.1.1 DSL Interface
Multiple DSL Standards
l
l
l
l
Other Features
l
l
l
3.1.2 Ethernet Interface
l
l
l
l
l
Issue: 01 (2014-09-30)
3

Technical Specifications

VDSL2
G.993.2 VDSL2
−
VDSL2 Profiles for 8a, 8b, 8c, 8d, 12a, 12b, 17a
−
VDSL Vectoring
−
ADSL2+
G.992.5 (G.dmt.bitplus)
−
ADSL2
G.992.3 (G.dmt.bis) Annex L
−
ADSL
G.992.1 (G.dmt)
−
ANSI T1.413 Issue 2
−
Multiple permanent virtual channels (8 PVCs)
Manual configuration of PVC parameters
Automatic PVC Search
Provision of one 10/100/1000 M WAN interface and four 10/100/1000 M LAN
interfaces
Supports IEEE802.3, IEEE802.3u and IEEE802.3az standard for WAN interface
Supports IEEE802.3 and IEEE802.3u standard for LAN interface
Supports line MDI, MDIX and auto-sensing
Supports for half duplex or full duplex mode
