Aztech DSL5028EN Easy Start Manual

This Easy Start Guide will help you set up your DSL5028EN(1T1R) modem router and connect it to the Internet. Before proceeding with the
installation, please prepare your internet account settings given by your Internet Service Provider (ISP). This device's User Manual, which
provides a more advanced guide to this product, can be downloaded from this link : www.aztech.com/support/bayan5028/um
STEP 1 STEP 2

Package Contents

Setting Up Your
Hardware
Step 1 : Package Contents
The following items are included in your DSL5028EN(1T1R)
package.

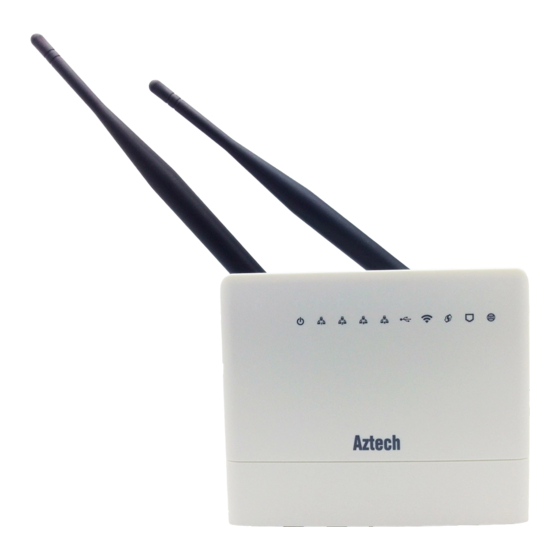

DSL5028EN(1T1R) DSL Microfilter
Power Adapter Easy Start Guide
Step 2 : Setting Up Your Hardware
A. Connect the microfilter to the telephone outlet.
Using a telephone cable, connect your modem router to the
B.
microfilter.
C. Using an Ethernet cable, connect your modem router to the
desktop using each devices' Ethernet port.
D.
Connect the power adapter to your modem router.
E. Switch ON your modem router.
STEP 3
Setting Up Your
Internet Connection
Ethernet Cable Telephone Cable
Leave Behind Card
MODEL
DSL5028EN(1T1R)

Hardware Setup

Diagram
Power Adapter
Step 3:

Setting Up Your Internet Connection

Once you complete the hardware setup, proceed to the steps below in
establishing a connection with your Internet Service Provider.
A Launch any web browser and input http://192.168.1.1 on the
address bar then press Enter. You will be redirected to the
login page of your DSL5028EN(1T1R). Simply enter guest as its
username and bayanDSLWIFI as its password then click Login.
Desktop / PC
A
E
C
D
B
DSL Microfilter
DSL5028EN(1T1R)
