Aztech DSL5018EN(1T1R) Easy Start Manual

This Easy Start Guide will help you setup your DSL5018EN(1T1R) modem router and connect to the Internet . Before proceeding
with the installation, please prepare your internet account settings given by your Internet Service Provider. You may also download
this Easy Start Guide and the User Manual of this product on our Aztech Support Website (www.aztech.com/support)
Step 1: Step 2:
Check Package Setting Up Your
Contents Hardware
Step 1 : Check Package Contents
The following items are included in your DSL5018EN(1T1R)
package.

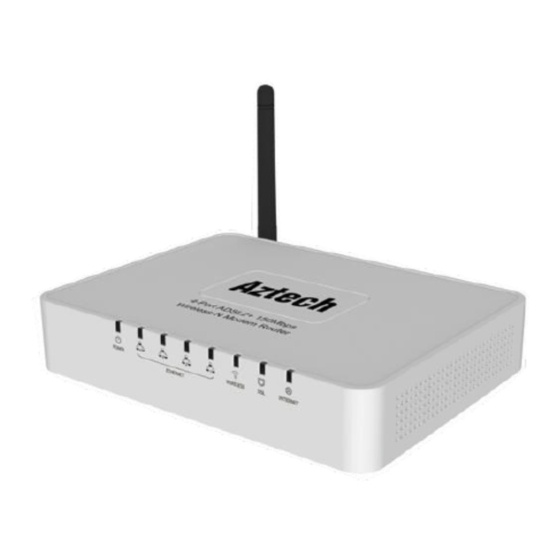

DSL5018EN(1T1R)
DSL5018EN(1T1R) Ethernet Cable
Resource CD
Telephone Cable
Step 2 : Setting Up Your Hardware
Kindly follow the steps provided below in setting up your hardware. A
setup diagram has also been provided for reference.
A.
Connect the power adapter to your modem router then plug it to
a power outlet.
B. Switch ON your modem router.
Step 3:
Setting Up Your
Internet Connection
Power Adapter
DSL Microfilter
Easy Start Guide
Warranty Card
MODEL
DSL5018EN(1T1R)
C.
Using an Ethernet cable, connect your modem router to the
desktop through both of the devices' Ethernet ports.
D.
Using a telephone cable, connect your modem router to the DSL
microfilter.
E.
Connect the DSL microfilter to the telephone outlet.
F.
Hardware Setup Diagram
G.
DSL5018EN(1T1R)
B
Power
A
Adapter
E
DSL
Microfilter
B
D
Ethernet
Telephone Cable
Cable
C
Desktop/PC
Telephone
Outlet
NOTE:
Please check
both wire ends
for each step.
