Summary of Contents for Kramer VP-438
-
Page 1: User Manual
Kramer Electronics, Ltd. USER MANUAL Model: VP-438 Presentation Switcher / Scaler... -
Page 2: Table Of Contents
Figure 2: Connecting the VP-438 Presentation Switcher / Scaler Figure 3: Infrared Remote Control Transmitter Tables Table 1: VP-438 Presentation Switcher / Scaler Front Panel Features Table 2: VP-438 Presentation Switcher / Scaler Rear Panel Features Table 3: The MAIN MENU Features... -
Page 3: Introduction
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11: Sierra Video Products 2 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com 3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com... - Page 4 Getting Started KRAMER: SIMPLE CREATIVE TECHNOLOGY...
-
Page 5: Overview
• Remotely, from the infrared remote control transmitter The VP-438 is housed in a 19” 1U rack mountable enclosure, with rack “ears” included, and is fed from a 100-240V AC universal switching power supply. 1 Also known as Y, Pb, Pr, Y, Cb, Cr and YUV; compatible with both SD and HD component... -
Page 6: Recommendations For Best Performance
European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -

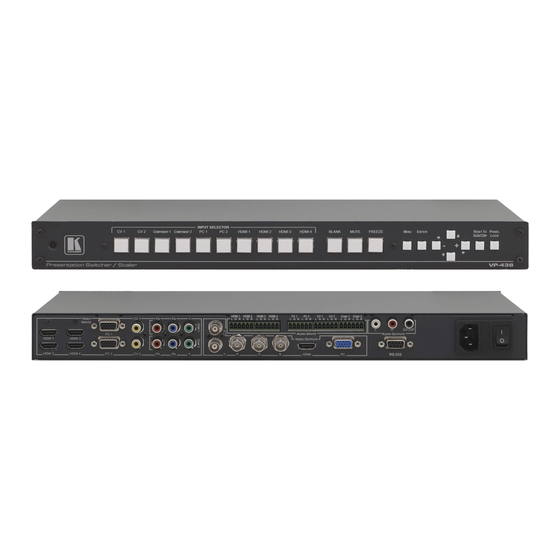

Page 7: Figure 1: Vp-438 Presentation Switcher / Scaler
Your VP-438 Presentation Switcher / Scaler Figure 1: VP-438 Presentation Switcher / Scaler... -
Page 8: Table 1: Vp-438 Presentation Switcher / Scaler Front Panel Features
Your VP-438 Presentation Switcher / Scaler Table 1: VP-438 Presentation Switcher / Scaler Front Panel Features Feature Function IR Receiver Receives signals from the remote control transmitter INPUT Press to select the composite video input (from 1 to 2) SELECTOR... -
Page 9: Table 2: Vp-438 Presentation Switcher / Scaler Rear Panel Features
Your VP-438 Presentation Switcher / Scaler Table 2: VP-438 Presentation Switcher / Scaler Rear Panel Features Feature Function HDMI Connector Connect to the HDMI source (from 1 to 4) PC 15-pin HD Connector Connect to the computer graphics source (from 1 to 2) -
Page 10: Installing The Vp-438 In A Rack
Installing the VP-438 in a Rack Installing the VP-438 in a Rack This section provides instructions for rack mounting the unit. KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 11: Connecting The Vp-438 Presentation Switcher / Scaler
1 You do not have to connect all the inputs and outputs, connect only those that are required 2 Switch OFF the power on each device before connecting it to your VP-438. After connecting your VP-438, switch on its power and then switch on the power on each device 3 Alternatively, you can connect the DVI connector on the DVD player to the HDMI connector on the VP-438 via a DVI-HDMI adapter. -
Page 12: Figure 2: Connecting The Vp-438 Presentation Switcher / Scaler
Connecting the VP-438 Presentation Switcher / Scaler Figure 2: Connecting the VP-438 Presentation Switcher / Scaler KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 13: Controlling The Vp-438
MENU, ENTER, and arrow buttons • RESET TO XGA/720p and PANEL LOCK buttons 7.2 Using the OSD Menu The control buttons let you control the VP-438 via the OSD menu. Press the: • MENU button to enter the menu •... -
Page 14: The Main Menu
Controlling the VP-438 7.2.1 The MAIN MENU Table 3 defines the MAIN MENU features and functions. Table 3: The MAIN MENU Features Mode Function CONTRAST Set the contrast BRIGHTNESS Set the brightness FINETUNE (see Section 7.2.2 COLOR Set the red, green and blue shades... -
Page 15: The Finetune Menu
Controlling the VP-438 Mode Function HDCP ON OUTPUT Select FOLLOW INPUT or FOLLOW OUTPUT to define whether the HDCP will follow the input or the output When FOLLOW INPUT is selected, it changes its HDCP output setting (for the HDMI output) according to the HDCP of the input. This option is recommended... -
Page 16: The Audio Menu
To connect to the VP-438 via RS-232, connect the RS-232 9-pin D-sub rear panel port on the VP-438 unit via a 9-wire straight cable (only pin 2 to pin 2, pin 3 to pin 3, and pin 5 to pin 5 need to be connected) to the RS-232 9-pin D-sub port on your PC. -
Page 17: Controlling Via The Infrared Remote Control Transmitter
Controlling the VP-438 7.4 Controlling via the Infrared Remote Control Transmitter You can control the VP-438 from the infrared remote control transmitter, as Figure Table define: Table 7: Infrared Remote Control Transmitter Functions SIZE POWER Keys Function SIZE Set the size of the image displayed... -
Page 18: Technical Specifications
Technical Specifications Technical Specifications Table 8: Technical Specifications of the VP-438 Presentation Switcher /Scaler INPUTS: 4 HDMI connectors (HDMI, HDCP version 1.1) 2 VGA on a 15-pin HD connector 2 composite video on an RCA connector 2 component video each on 3 RCA connectors... -
Page 19: Table 9: Input Resolutions
Technical Specifications Table 9: Input Resolutions Resolution/Refresh Rate Y, Pb, Pr (Component) HDMI 480I/576I(NTSC/PAL) 480P/576P 720P@(60/50) 1080I@(60/50) 1080P@(60/50) 1080P@(24/25/30) 480P/576P-RGB 720P@(60/50)-RGB 1080I@(60/50)-RGB 1080P@(60/50)-RGB 1080P@(24/25/30)-RGB VGA@(60/67/72/75/85) SVGA@(56/60/72/75) XGA@(60/70/75) SXGA@(60/75) 1280X960 1600X900@60 UXGA@60 ( 1600X1200 ) WXGA@60(1280x800) WXGA+@60(1440x900) WXGA@60(1366x768) SXGA+@60(1400x1050) WSXGA@60(1680x1050) WUXGA@60(1920x1200) 2K@50 ( 2048X1080) 2K@60 ( 2048X1080) 1 Go to our Web site at... -
Page 20: Rs-232 Communication Protocol
Example 1: set Brightness value to 32 Send: Y11632[CR] Reply: Z11632[CR][LF] Example 2: get current output resolution (2 = SVGA) Send: Y421[CR] Reply: Z4212[CR][LF] 1 When sending a command, a blank character may precede [CR] if desired KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 21: Table 11: Rs-232 Protocol
RS-232 Communication Protocol Table 11: RS-232 Protocol Control Param Function Function Description Comment Type (for Set) SIZE button on remote control POWER button on remote control FREEZE button on remote control 480p button on remote control 576p button on remote control 720p button on remote control 1080i button on remote control 1080p button on remote control... - Page 22 1: CV1 2: CV2 3: COMP1 4: COMP2 3: Set 5: PC1 1~10 Select Input Source 4: Get 6:PC2 7: HDMI1 8: HDMI2 9: HDMI3 10: HDMI4 3: Set 0: Full Size 4: Get 1: Panscan KRAMER: SIMPLE CREATIVE TECHNOLOGY...
- Page 23 RS-232 Communication Protocol Control Param Function Function Description Comment Type (for Set) 2: Overscan 3: Underscan1 4: Letterbox 5: Underscan2 6. BEST FIT 0: Native 1: VGA 2: SVGA 3: XGA 4: SXGA 5: UXGA 6: 480i 7: 480p 8: 720p60 9: 1080i60 10: 1080p60 11: 576i...
- Page 24 6: Set Mute 7: Get 1: On 0: Off 6: Set Key lock 7: Get 1: On 6 : Set 0: Clear Auto Tune Auto Tune (under fine tune) 7 : Get 1: Set Auto Tune KRAMER: SIMPLE CREATIVE TECHNOLOGY...
-
Page 26: Safety Warning
For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
