3 System Assembly

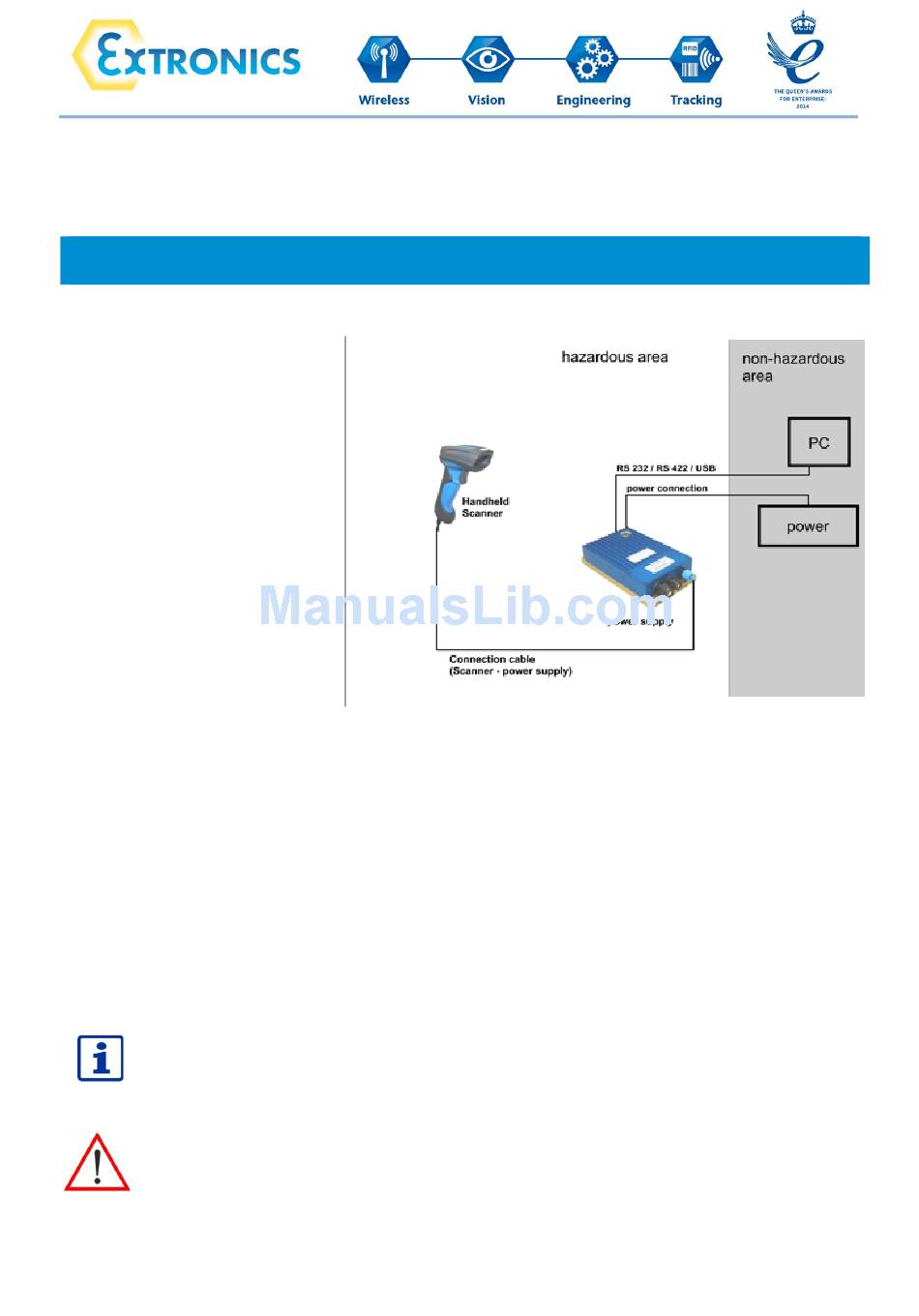

Overview of the complete
system assembly,
wire handheld scanner
iSCAN101

3.1 Description

The wired handheld iSCAN101 scanner was designed for use in hazardous areas. Normal operation requires a
power supply, a connection cable between power supply and scanner, and a connection cable between power
supply and a PC.
Required connection cable to a PC:
The handheld scanner and the power supply can be connected and operated in the hazardous area. For safe
installation please refer to the manual issued by SICK AG (www.SICK.com)
For the professional use of the power supply ISCANPS the operating instructions of the
manual of the power supply are necessary.
The warnings and notes of caution contained in these operating instructions and in the
manual issued by SICK AG (www.SICK.com) must be adhered to.
Operating Instructions_iSCAN101_001
USB: 0.2 - 2.5 mm², 4-wire
or RS232: 0.2 - 2.5 mm², 3-wire
