4. System assembly Hazardous Area

4.1 USB

4.1 Assembly description

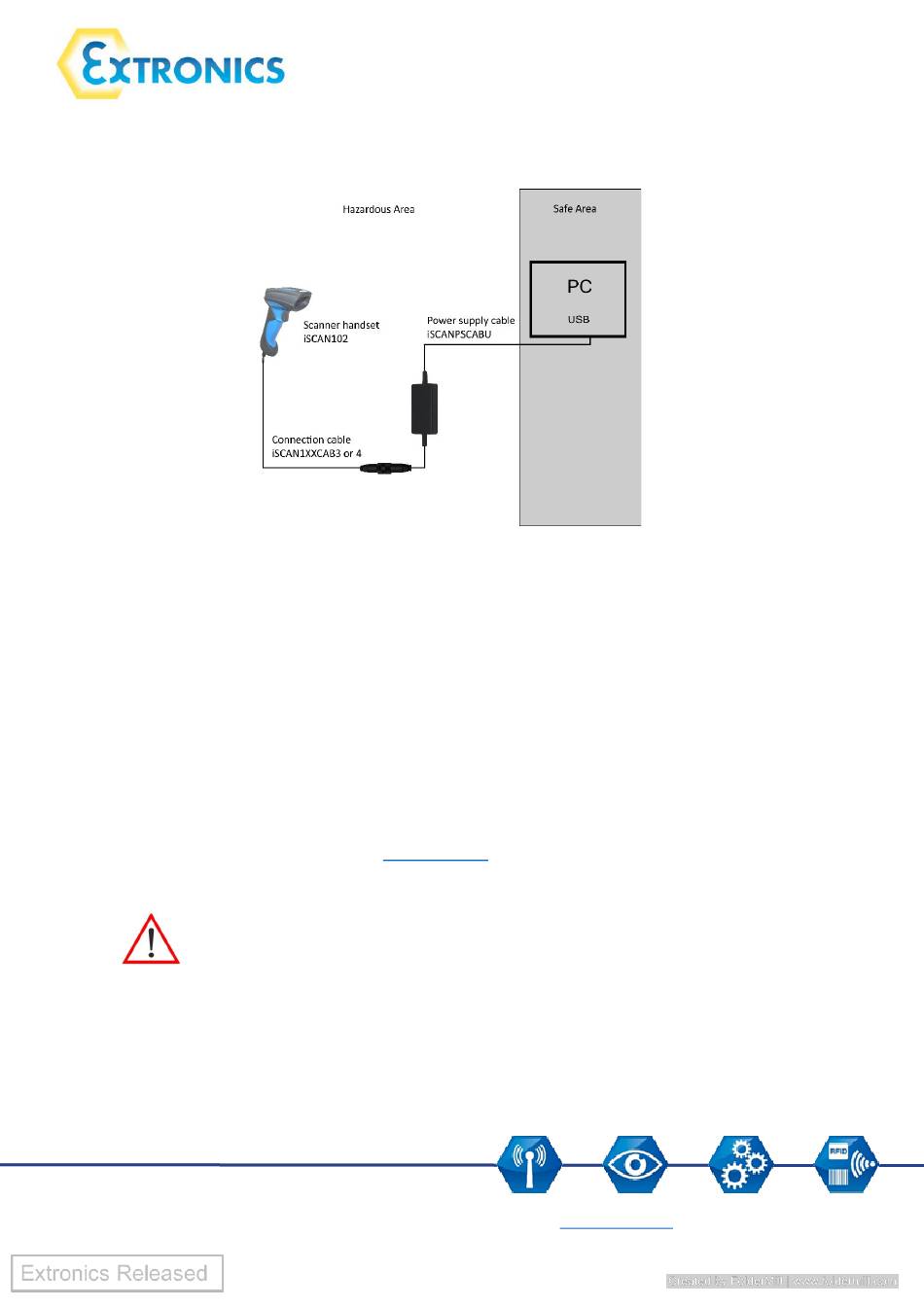

The wired handheld scanner was designed for use in Zone 2/22 hazardous areas. Normal operation
requires a power supply, a connection cable between power supply and scanner, and connection
cable(s) between power supply. For a connection to the PC in the non-hazardous area, a mini USB plug
is attached to the USB supply line so that the cable can be routed through a cable gland.
External connection cables:
Data cable:
Power cable:
The handheld scanner and the power supply can be connected and operated in the hazardous area.
The current rating of the connection cables must be checked before use. For safe installation please
refer to the manual issued by SICK AG (www.SICK.com)
The warnings and notes of caution contained in these operating instructions and in the
manual issued by SICK AG (www.SICK.com) must be adhered to.
