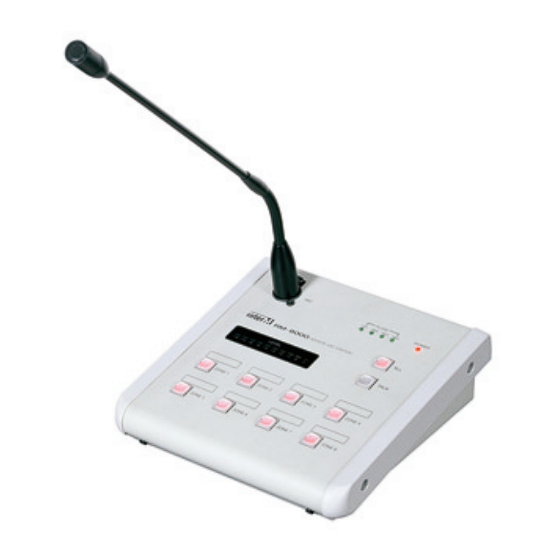

  • Page 1 Operation Manual RM-8000 Remote MIC Station...
  • Page 2 W a r n i n g CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING To prevent fire or shock hazard, do not expose the unit to rain or moisture.

  • Page 3: Table Of Contents

    Short Form Instructions ..........2 Installation Environment............4 Important Safety Instructions .......4 Features ..............6 Front Panel.............7 Rear Panel .............9 Priority of Broadcasting ........11 Operation..............11 Connection ............14 Block Diagram ............15 Specifications ............16 Service Procedures............17 Schematic ............17 Parts List ............17 Warranty...............17 RM-8000(REMOTE MIC STATION)

  • Page 4: Welcome

    W e l c o m e A personal welcome to you from the management and employees of Inter-M All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value, and we are delighted you have purchased one of our products.
  • Page 5 PX-8000 and will override the gain and BGM Selection of the PX-8000. 9. Connect one or more (maximum 4) RM-8000 units to the remote mic input connector on the back of the PX-8000. Connect a microphone to each RM- 8000.

  • Page 6: Installation

    11. Only use attachments/accessories specified by the manufacturer. 12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving S3125A RM-8000(REMOTE MIC STATION)
  • Page 7 - DO NOT OPEN THE CASE OR ATTEMPT REPAIRS OR MODIFICATIONS YOURSELF This product contains no user-serviceable parts. Refer all maintenance to qualified Inter-M service personnel. Opening the case and/or tampering with internal circuitry voids the warranty. - ALWAYS POWER OFF BEFORE MAKING CONNECTIONS Always turn the AC mains OFF before connecting or disconnecting cables.

  • Page 8: Features

    ■ ■ Selection of various Chime broadcastings for MIC broadcasting (PRE/POST). ■ ■ Convenient priority broadcasting. ■ ■ ■ Adoption of output signal level display. ■ ■ Adoption of RS-422 communication method to support a long distance. RM-8000(REMOTE MIC STATION)

  • Page 9: Front Panel

    Dynamic MIC can be used. IN-USE LED Displays the using status of 4 Remote MIC Stations. POWER LED If power supply is applied, the Power LED turns on. Has toggle function as a switch to select all broadcasting areas. RM-8000(REMOTE MIC STATION)
  • Page 10 Release the button to end broadcasting. During broadcast, "R" is displayed on the relevant display of both PX-8000 and LM-8000. AREA SELECTION BUTTON Turns on if pressing the switch to select the area to broadcast and turns off if pressing it again. RM-8000(REMOTE MIC STATION)

  • Page 11: Rear Panel

    Functions Color BLU/WHT GRN/WHT ORG/WHT Audio+ Audio- BRN/WHT OUTPUT VOLUME Volume to adjust sound volume of MIC and chime broadcasting. MONITOR SPEAKER VOLUME MON SPK (Monitor Speaker): Volume to adjust sound volume of the built-in Monitor Speaker. RM-8000(REMOTE MIC STATION)
  • Page 12 B. SWITCH2 ON : Chime increased by 4 tones for starting is broadcast when pressing the TALK button. C. SWITCH3 ON : Chime decreased by 4 tones for ending is broadcast when releasing the TALK button. D. SWITCH1, 2 ON : Same as for SWITCH1 ON. RM-8000(REMOTE MIC STATION)

  • Page 13: Priority Of Broadcasting

    O p e r a t i o n ■ ■ RM-8000 CONNECTION - Connect to the RM-8000 connection hole on the rear side of PX-8000 using a CAT5 (UTP) wiring material. PX-8000 RM-8000 - Immediate broadcasting is allowed without separate ID setting.
  • Page 14 ■ ■ ■ RM-8000 PRIORITY BROADCASTING - Broadcasting of any RM-8000 is allowed in the non- broadcasting area. - Zone being broadcasting has priority with the order of RM1 > RM2 > RM3 > RM4. - If the relevant area button turns off when pressing...
  • Page 15 RM-8000 BROADCASTING IN LINKED SYSTEM If using the PX-8000 together, MIC broadcasting of the RM-8000 is not allowed to the output area of the other PX-8000. Broadcasting is allowed to only the output area of PX-8000 where the RM-8000 is connected.

  • Page 16: Connection

    C o n n e c t i o n s LM-8000 LM-8000 LM-8000 LM-8000 LM-8000 PX-8000 Local BGM RM-8000(REMOTE MIC STATION)

  • Page 17: Block Diagram

    B l o c k D i a g r a m RM-8000(REMOTE MIC STATION)

  • Page 18: Specifications

    9600 bps Interface Maximum 300m (RS-422 ) Communication Distance (using UTP Cat5) Operation Temperature 10℃ ~ +40℃ Power Source DC 24V, 300mA Weight (SET) 1.5kg/3.2lb 200(W)x70(H)x206(D)mm Dimensions (SET) 7.9(W)x2.8(H)x8.1(D)in * Specifications and design subject to change without notice. RM-8000(REMOTE MIC STATION)

  • Page 19: Service

    To obtain specific warranty information and available service locations contact Inter-M directly or the authorized Inter-M Distributor for your specific country or region. RM-8000(REMOTE MIC STATION)
  • Page 20 Inter-M, Ltd. (Korea) began operations in 1983. Since then, Inter-M has grown to become one of the largest manufacturers of professional audio and commercial sound electronics equipment in the world. Inter-M has gained worldwide recognition for its own branded products, as well as private label manufacturing of electronics sold under other names (OEM).
