  • Page 1 Operation Manual System Remote Mic Station NRM 8000A...
  • Page 2 A personal welcome to you from the management and employees of Inter-M All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value, and we are delighted you have purchased one of our products.

  • Page 3: Table Of Contents

    Front Panel ............................4 Rear Panel ............................6 How to Set the Device and Cautions ...................8 Application ............................ 13 Block Diagram ..........................14 Specifications ..........................15 Service Procedures............................17 Schematic.............................17 Parts List............................17 Variations and Options .......................17 Warranty ............................17 nRM-8000A...

  • Page 4: Unpacking

    SySteM ReMote MIc StAtIon Unpacking Unpacking Although your nRM-8000A is neither complicated nor difficult to operate, we recommend you take a few minutes to read this brief manual and familiarize yourself with the important information regarding product features, setup and operation.

  • Page 5: Features

    - INPUT/ OUTPUT CONTROL VOLUME you can control MIc Input GAIn, monitor speaker output and chime volume. - DC 24V AUXILIARY POWER INPUT there is Dc 24V auxiliary power input terminal to input auxiliary power using the adapter. nRM-8000A...

  • Page 6: Front Panel

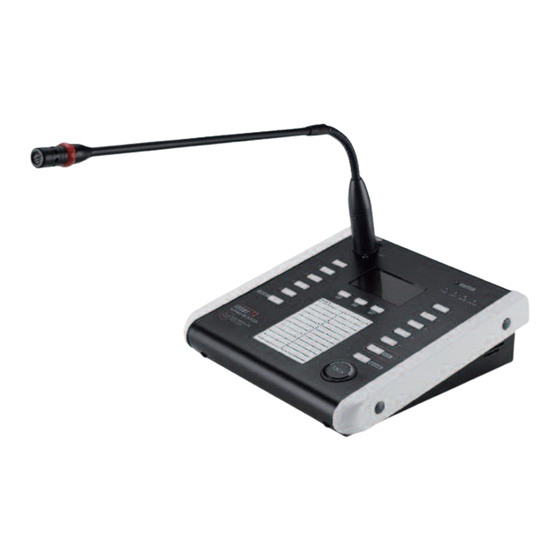

    Front Panel Front Panel PUSH POWER INDEX PRESET CHIME NRM-8000A SYSTEM REMOTE MIC STATION 1. MIC INPUT TERMINAL It is the terminal that connects gooseneck microphone. 2. STATUS DISPLAY Status quo and set of the device, etc. are displayed. 3. FUNCTION BUTTON (F1, F2, F3) It is a button to check the status of the device and change the set.
  • Page 7 It is a button used in case of manipulating chime manually. Please refer how to set below for the set of chime. 11. TALK BUTTON It is a button pressed when you want to start the broadcasting after selecting the broadcasting area. Please refer to how to set for the set of talk button. nRM-8000A...

  • Page 8: Rear Panel

    ※ When LInKInG, be sure to use direct cable for the cable you use. ※ For cables, it is recommend to use those below DcR 100m/9.8Ω. [ TOP VIEW ] [ FRONT VIEW ] 8.Brown 7.W/Brown 6.Green 5.W/Blue 4.Blue 3.W/Green 3.W/Green 2.Orange 1.W/Orange DIRECT [ CABLE COLOR ORDER ] nRM-8000A...
  • Page 9 - Monitor Level: It is a volume that controls the output level of the monitor speaker. - MIc GAIn: It is a volume that controls input GAIn of the microphone. - chime Volume: It is a volume that controls chime output level. (It is located on the bottom of the device.) nRM-8000A...

  • Page 10: How To Set The Device And Cautions

    How to Set the Device and Cautions 1. DEVICE BASIC OPERATION - Waiting Screen 1) In case nRM-8000A is connected normally with nPX-8000, “LInK” message is displayed at the left upper side. 2) Broadcasting Zone on/off screen is displayed. 3) When there is no input for 30 seconds on the waiting screen, it is converted into Sleep mode.
  • Page 11 3) ID can be changed on Device ID Set screen. If you press F1 button, the number increases (Max 4) and F2 button is oK button. 5. FIRMWARE VERSION CHECK-UP AND FACTORY RESET Factory reset is the function all setups of nRM-8000A are initialized. 1) If F1 button is pressed on ID Setup screen, you can check the Firmware version. nRM-8000A...
  • Page 12 4) If the pertinent Zone is being operated by priority, the pertinent and a message on air are displayed. 5) this operation ends when the replay of sound source ends, or the broadcasting of high priority is outputted. * the priority can be set and checked at Windows program (MP-8000). nRM-8000A...
  • Page 13 3) Firmware Upgrade menu is selected at Windows program (MP-8000). 4) Select Device RM at the pertinent menu. 5) Select Binary File of the version to Upgrade. 6) Select Start button after selecting ID of RM device to Upgrade. nRM-8000A...
  • Page 14 SySteM ReMote MIc StAtIon 7) Display the state of progress of RM of the pertinent ID. RM of another ID displays LInK eRRoR. 8) After Firmware Upgrade progress is completed, it is rebooted. nRM-8000A...

  • Page 15: Application

    SySteM ReMote MIc StAtIon Application Application nRM-8000A...

  • Page 16: Block Diagram

    SySteM ReMote MIc StAtIon Block Diagram Block Diagram RJ-45 nRM-8000A...

  • Page 17: Specifications

    SySteM ReMote MIc StAtIon Specifications Specifications NRM-8000A Audio characteristics Input sensitivity -50dBu output level 0dBu Signal vs. noise ratio(20kHz LPF) 60dB or more tHD(20kHz LPF) 0.5% or less Frequency response 100Hz ~ 18kHz 0dBu ± 3dBu Data communication communication mode...
  • Page 18 SySteM ReMote MIc StAtIon ※ DIMENSIONS nRM-8000A...

  • Page 19: Service

    Inter-M directly or the authorized Inter-M Distributor for your specific country or region.
  • Page 20 Inter-M, Ltd. (Korea) began operations in 1983. Since then, Inter-M has grown to become one of the largest manufacturers of professional audio and commercial sound electronics equipment in the world. Inter-M has gained worldwide recognition for its own branded products, as well as private label manufacturing of electronics sold under other names (oeM).
