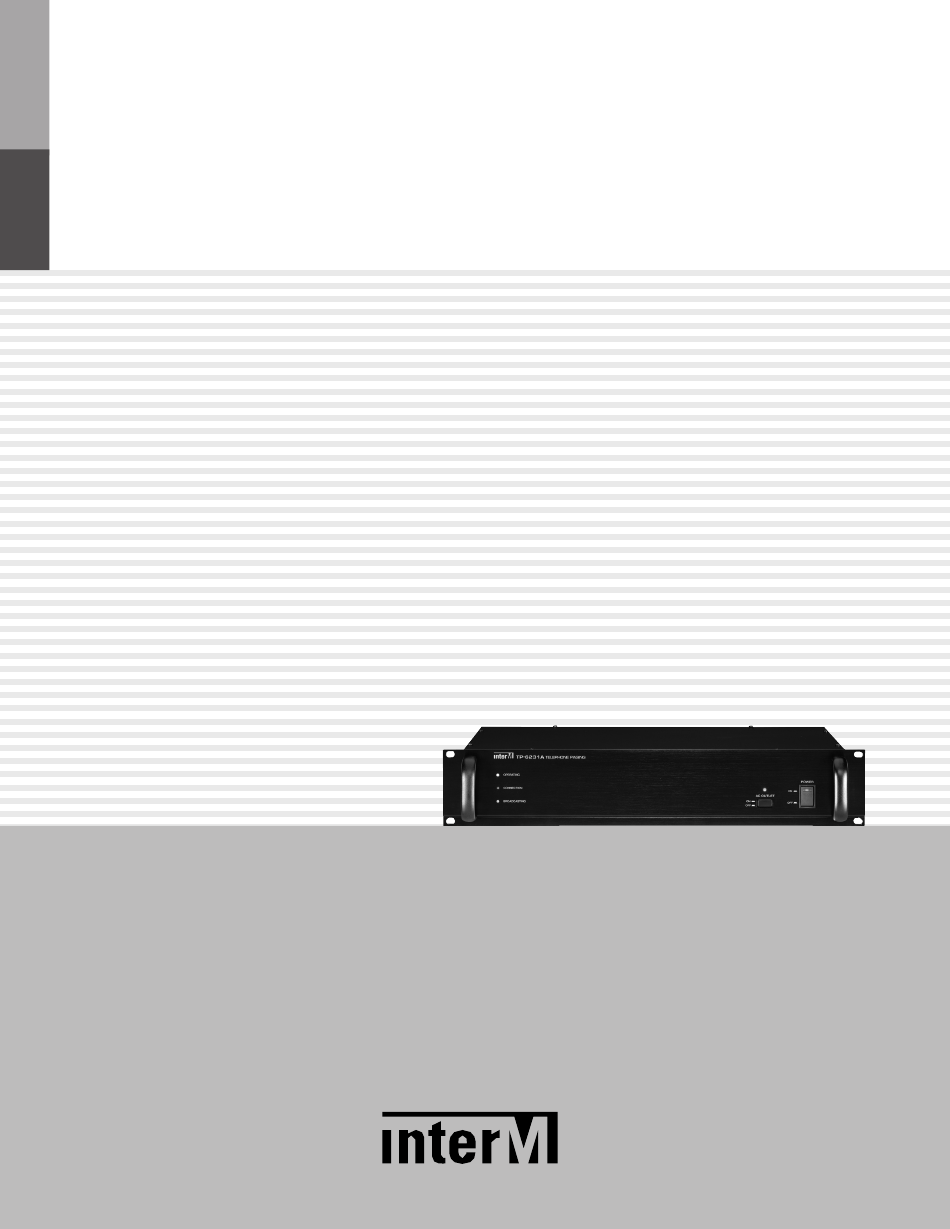

- Page 1 Operation Manual Telephone Paging TP-6231A * Rack mount products in the Western Hemisphere(North America, South America, and the Caribbean) do not have handles installed due to customer preference.
- Page 2 A personal welcome to you from the management and employees of Inter-M All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value, and we are delighted you have purchased one of our products.
-
Page 3: Table Of Contents
Important Safety Instructions......................2 Features ............................3 Equipment Set-up and Check List ....................4 Front Panel ............................7 Rear Panel ............................8 Operation Flow Chart ........................12 Applications ..........................14 Block Diagram ..........................15 Specifications ..........................16 Service Procedures............................17 Schematic.............................17 Parts List ............................17 Variations and Options .......................17 Warranty ............................17 TP-6231A... -
Page 4: Unpacking
TELEPHONE PAGING Unpacking Unpacking Although your TP-6231A is neither complicated nor difficult to operate, we recommend you take a few minutes to read this brief manual and familiarize yourself with the important information regarding product features, setup and operation. As with most electronic devices, we strongly recommend you retain the original packaging. In the unlikely event the product must be returned for servicing, the original packaging (or reasonable equivalent) is required. -
Page 5: Features
Broadcasting messages can be recorded by the user. Up to 20 seconds can be recorded. Contents and Accessories Contents and Accessories 1. Power Cord x 1 2. Lan Cable x 1 3. Telephone Cable x 1 4. 24p Cable x 1 5. Operation Manual x 1 TP-6231A... -
Page 6: Equipment Set-Up And Check List
1. Make sure system is turned off before configuring the set-up. 2. PD-6359 REMOTE CONTROL If remote control of PD-6359 is required, connect the power remote terminal of the TP-6231A (Terminal 5 on rear diagram of TP-6231A) to the remote terminal of PD-6359. - Page 7 Select CHANNEL 1-16 6. SPACE FFHex END CODE TP-6231A enables each commends. 6. Address Setting 1) ECS-6216P / RME-6108 If connected with ECS-6216P or RME-6108, set address number for proper connection conditions. 2) When connecting to ECS-6216P directly (Can also be used with RM-6024) - If Connected to RM1 terminal of ECS-6216P set address number of TP- 6231 to 1.
- Page 8 TELEPHONE PAGING 3) When connecting to ECS-6216P through RME-6108 (Can also be used with RM-6024) - If TP-6231A is connected to RME-6108 connected with RM1 terminal, address number should be selected among 1~8. - If TP-6231A is connected to RME-6108 connected with RM2 terminal, address number should be selected among 9~16.
-
Page 9: Front Panel
4. AC OUTLET SWITCH Turns rear AC OUTLET on or off manually. 5. AC OUTLET LED It will be on when AC OUTLET switch is pushed ON. 6. POWER LED Indicated power on/off status. 7. POWER SWITCH Turns TP-6231A ON/OFF. TP-6231A... -
Page 10: Rear Panel
Connects to ECS-6216P or RME-6108 and supplies data and audio signal. PIN NO. Functions RS-422 Data - TX+ RS-422 Data - TX- RS-422 Data - RX- Live Data RS-422 Data - RX+ Balanced Audio Output - HOT Balanced Audio Output - COLD TP-6231A... - Page 11 500 ms ± 50 ms 1000 ms ± 100 ms The table on the above shows call End Signal the device can detect as the switch is set. Once the signal is detected, the call is rightly ended. ON TIME OFF TIME TP-6231A...
- Page 12 TELEPHONE PAGING - RING COUNT. Determines the number of RINGs before the TP-6231A will answer when receiving a call. RING COUNT - Operational Method Setup Select from 2 possible operation modes as per table below: Operational Method Normal mode SECURITY No. Skip mode...
- Page 13 TELEPHONE PAGING 15. SERIAL COMMUNICATION TERMINAL RS-232C SERIAL communication terminal (RX/TX). Figure below shows pin configuration and proper wiring. Pin No. Definition TP-6231 Controller D-SUB 9Cable(Twisted RS-232C Cable) TP-6231A...
-
Page 14: Operation Flow Chart
PLAY ANNOUNCEMENT 11 PLAY ANNOUNCEMENT 5 PLAY ANNOUNCEMENT 13 HANG UP HANG UP PLAY ANNOUNCEMENT 7 PLAY ANNOUNCEMENT 6 SPEAK Enter Number Enter '* ' Number HANG UP REC ANNOUNCEMENT 16 PLAY ANNOUNCEMENT 16 Enter '2' HANG UP PLAY ANNOUNCEMENT 8 TP-6231A... - Page 15 User mode has been cancelled. You exceeded limit of trying password, Please use it next time. Other device is in use . Please use it next time. Limited time is exceeded. Please use it next time. (BEEP) (Recorded sound by the user) TP-6231A...
-
Page 16: Applications
TELEPHONE PAGING Applications Applications SOURCE TP-6231A... -
Page 17: Block Diagram
TELEPHONE PAGING Block Diagram Block Diagram TP-6231A... -
Page 18: Specifications
TELEPHONE PAGING Specifications Specifications TP-6231A Frequency Response (0dB , +1/-3dB Decrease) 80Hz - 8kHz THD (0dB, 1kHz) Less than 1% Signal to Noise ratio (S/N) Better than 65dB AC OUTLET Switched : AC 230V/50Hz, 3A Remote Power control Circuit number... -
Page 19: Service
To obtain specific warranty information and available service locations contact Inter-M directly or the authorized Inter-M Distributor for your specific country or region. - Page 20 Inter-M, Ltd. (Korea) began operations in 1983. Since then, Inter-M has grown to become one of the largest manufacturers of professional audio and commercial sound electronics equipment in the world. Inter-M has gained worldwide recognition for its own branded products, as well as private label manufacturing of electronics sold under other names (OEM).
