Summary of Contents for Inter-m RM-01
- Page 1 Remote Microphone RM-01...
-
Page 2: Specifications

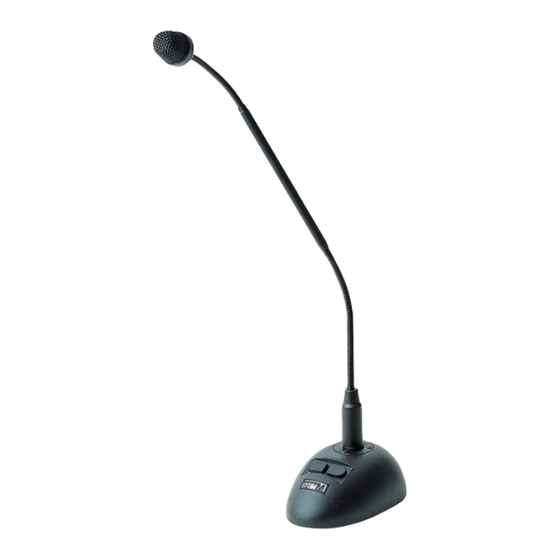

Remote Microphone RM-01 VERVIEW The RM-01 is an ideal remote paging microphone with push-to-talk and push- to-chime control. It features a unidirectional dynamic microphone with a 14” gooseneck. The microphone has a frequency range of 60Hz to 18kHz with an impedance of 400ohms and a sensitivity of -47db. The stand is of heavy diecast-zinc construction to provide stability and minimize noise caused by the operator touching the stand. - Page 3 ⊖ dri v er. RECEPTACLE CHIME SWITCH Input signal through 3p connector of goose neck becomes If the chime appliance is connected with the terminal sound at this part of stand ass’y block, can produce sound. RM-01...
- Page 4 After opening the cover of the stand bottom, connect the Receiver or the Remote Chime for the system to the 2P terminal block. Chime Talk 접점출력 PPLICATION 1 CHIME RM-01 PAM Series (Gooseneck Mic) (Portable Amplifier) PPLICATION 2 RM-01 PAC-5600...
-
Page 5: Block Diagram
Remote Microphone LOCKDIAGRAM OMPARATIVE TABLE RM-01 RMC-01 RM-01 • RM-01 RMC-01 Moving Coil Dynamic Microphone • TYPE Dynamic Mic Condenser Mic Remote Chime Switch • MIC On/Off Switch POLAR PATTERN UNIDIRECTIONAL • Sold separately SENSITIVITY -47dB±3dB -47dB±3dB (MIC : MC-01 / BASE : RM-01BS) - Page 6 Memo...
- Page 7 Memo...
- Page 8 Inter-M Corp. (IMK) 719, Dobong-ro, Dobong-gu, Seoul, Korea Overseas Sales Team Tel_ +82-2-2289-8141~7 Fax_ +82-2-2289-8149 E-mail_ overseas@inter-m.com www.inter-m.com ※ Design and specification are subject to be changed for the improvement of product quality without pre notice. 2015. 6. V2...
