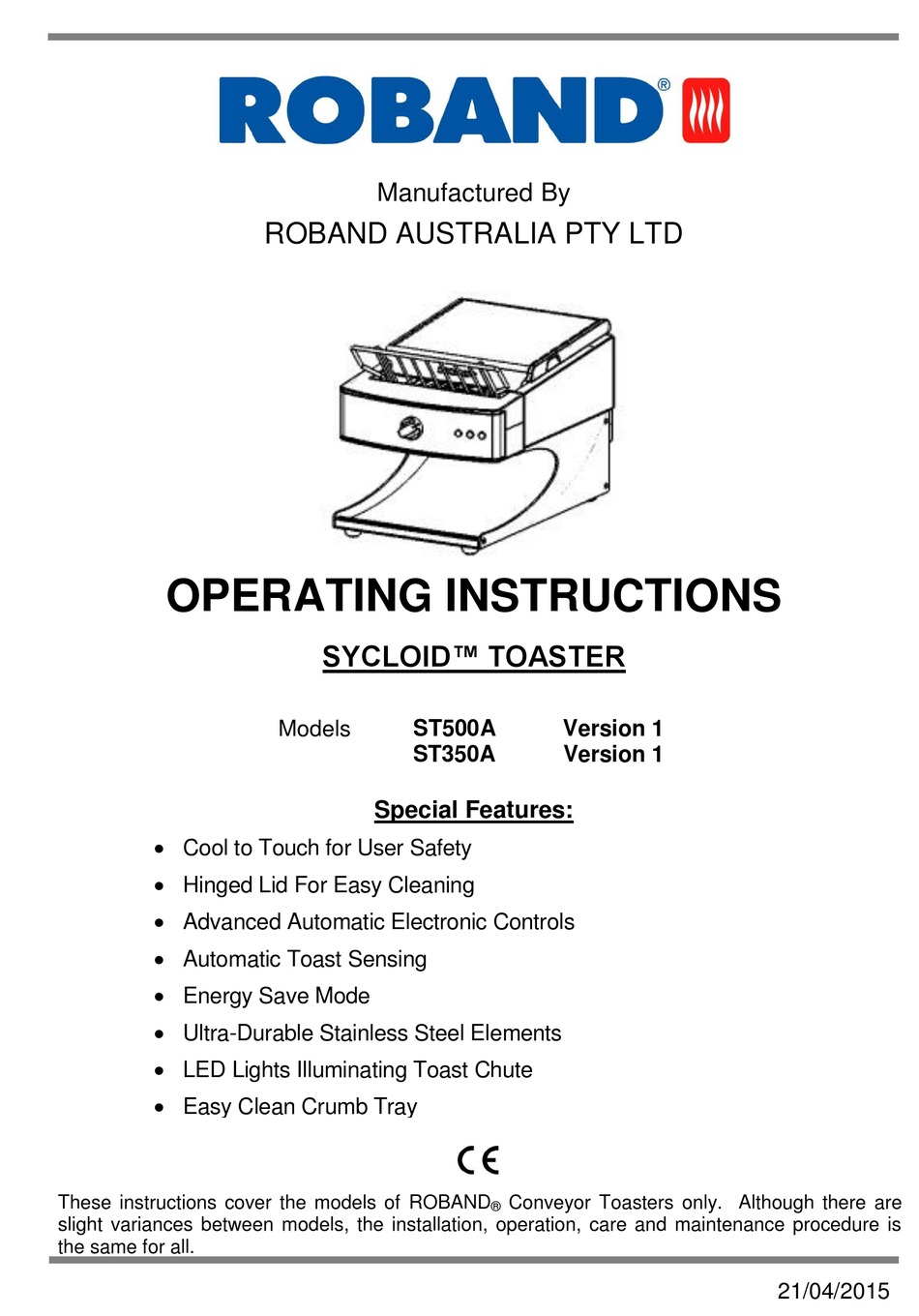

OPERATING INSTRUCTIONS
Cool to Touch for User Safety
Hinged Lid For Easy Cleaning
Advanced Automatic Electronic Controls
Automatic Toast Sensing
Energy Save Mode
Ultra-Durable Stainless Steel Elements
LED Lights Illuminating Toast Chute
Easy Clean Crumb Tray
These instructions cover the models of ROBAND
slight variances between models, the installation, operation, care and maintenance procedure is
the same for all.
Manufactured By
ROBAND AUSTRALIA PTY LTD
SYCLOID™ TOASTER
Models
ST500A
ST350A
Special Features:
Version 1
Version 1
Conveyor Toasters only. Although there are
®
21/04/2015
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ROBAND ST500A
Summary of Contents for ROBAND ST500A
-
Page 1: Operating Instructions
Ultra-Durable Stainless Steel Elements LED Lights Illuminating Toast Chute Easy Clean Crumb Tray These instructions cover the models of ROBAND Conveyor Toasters only. Although there are ® slight variances between models, the installation, operation, care and maintenance procedure is the same for all. - Page 2 Soup/Rice Warmers, Robatherm Urns, ö ® Austheat Fryers, Dipo Induction & Autofry Machines. Roband also has its own line of ® commercial cookware and cutlery under the Robinox brand name. For a complete set of brochures please contact your nearest authorised dealer or contact Roband directly at our head office.
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION ..................... 1 GENERAL PRECAUTIONS ..................1 PACKAGING ......................2 COMPLIANCE ......................2 INSTALLATION ....................... 3 OPERATION......................4 GENERAL SAFETY ....................6 CLEANING, CARE & MAINTENANCE ..............7 TROUBLESHOOTING ..................... 8 TOAST SENSOR TEST MODE ................9 SPECIFICATIONS ....................9 APPENDIX A ...................... -
Page 4: Introduction
Toaster, and ensure that any risk to unwary customers or staff is minimised with additional signage if necessary. Due to the obvious heat hazard Roband recommends that these units be kept out of reach of children. Do not allow children to play with these units. -
Page 5: Packaging
PACKAGING All care is taken when packing and Roband ensures that every unit is functional and undamaged at the time of packaging. The Package of this Conveyor Toaster should include: One Sycloid Conveyor Toaster (appropriate model) One Crumb Tray This Manual... -
Page 6: Installation
For the ST350A models plug the machine into a single phase, 10 amp power point. For the ST500A models, plug the machine into a single phase 15 amp power point. The ST500A models will not plug into a 10 amp power point. -
Page 7: Operation
OPERATION SWITCHING YOUR TOASTER ON: The on/off switch is located at the front left hand side of the machine on the underside of the front housing. The green LED will indicate the machine is on. WARM UP CYCLE After switching ON, The machine will begin its “Warm-Up” Cycle. During Warm up, the machine’s elements will be powered at 100% and the amber pilot light will fast flash. - Page 8 SLEEP MODE If the toaster has not been used for a period of 40 minutes it will enter “Sleep Mode” where it will shut down power to the elements completely and the conveyor will remain off. To wake up from “Sleep Mode” simply put bread into the entry chute. The warm up is the same as if the machine was turned ON at start of operation.
-
Page 9: General Safety
SAFETY GENERAL SAFETY This machine contains no user-serviceable parts. Roband Australia, one of our agents, or a similarly qualified person(s) should carry out any and all repairs. Any repair person(s) should be instructed to read the Safety warnings within this manual before commencing work on these units. -
Page 10: Cleaning, Care & Maintenance
For this reason we recommend cleaning with soapy water. Any damage to the unit through the use of harsh or improper cleaning agents is not the responsibility of Roband. OPENING THE COVER Pull the cover release lever on the Leftt hand side of the machine. With the other hand swing the Top Cover fully open. -
Page 11: Troubleshooting
TROUBLESHOOTING Check all the following points before contacting for a technician. If the Toaster does not start The ON – OFF switch is switched on. The green pilot light should be on. The machine is plugged in correctly and the power switched on. ... -
Page 12: Toast Sensor Test Mode
Depth Up to ST350A 230VAC 2300W 420mm 600mm slices per hour (closed) (closed) 410mm Up to 680mm 640mm (open) (open) ST500A 230VAC 2990W slices per hour NOTE: Constant Research and Development may necessitate machine changes at any time. Page: 9... -
Page 13: Appendix A
If you are unable to locate a circuit without an RCD please contact your supplier, or if you prefer you can contact Roband and send the unit to one of our offices where we can run the machine on a suitable circuit free of charge (a return freight charge may apply). - Page 14 NOTES Page: 11...
- Page 15 Any repairs or replacement of defective goods or materials pursuant to this warranty, must be authorized by Roband Australia prior to any action being taken. The company reserves the right to reject a claim for warranty if it is not completely satisfied with the circumstances under which it occurred and any other costs incurred for false claims or faults due to incorrect usage etc.
- Page 16 OTHER LEADING PRODUCTS AVAILABLE: -PLUS DRINK MIXERS PIE & FOOD WARMERS HIGH PERFORMANCE DEEP FRYERS VITAMIX BLENDERS GRILLMAX TOASTERS NOAW Slicers Manufactured/Imported in Australia by: Authorised Distributor/Agent...
