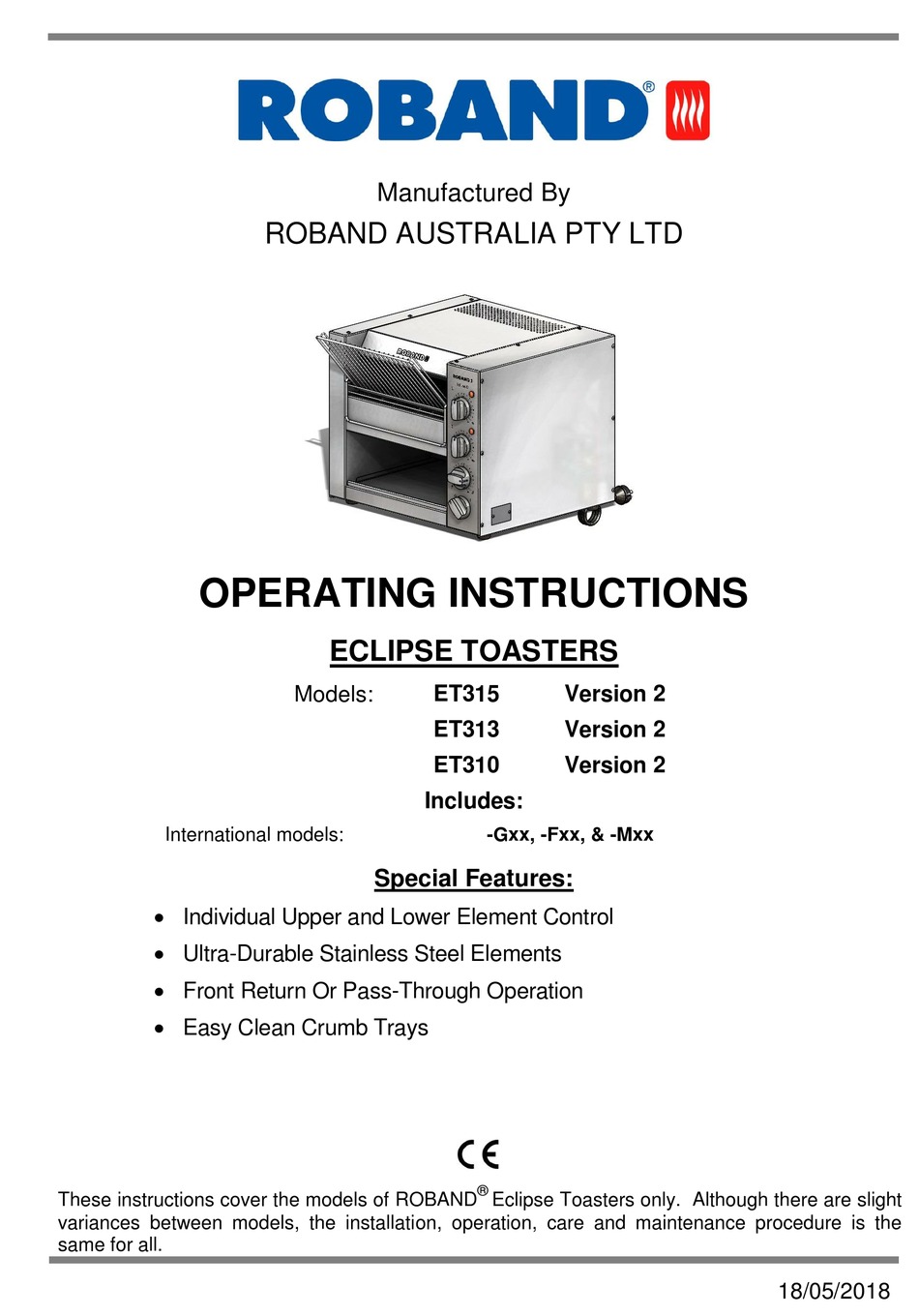

OPERATING INSTRUCTIONS
International models:
Individual Upper and Lower Element Control
Ultra-Durable Stainless Steel Elements
Front Return Or Pass-Through Operation
Easy Clean Crumb Trays
These instructions cover the models of ROBAND
variances between models, the installation, operation, care and maintenance procedure is the
same for all.
Manufactured By
ROBAND AUSTRALIA PTY LTD
ECLIPSE TOASTERS
Models:
ET315
ET313
ET310
Includes:
Special Features:
Version 2
Version 2
Version 2
-Gxx, -Fxx, & -Mxx
®
Eclipse Toasters only. Although there are slight
18/05/2018
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ROBAND ET315
Summary of Contents for ROBAND ET315
- Page 1 Front Return Or Pass-Through Operation Easy Clean Crumb Trays ® These instructions cover the models of ROBAND Eclipse Toasters only. Although there are slight variances between models, the installation, operation, care and maintenance procedure is the same for all.
- Page 2 Soup/Rice Warmers, Robatherm Urns, ö ® Austheat Fryers, Dipo Induction & Autofry Machines. Roband also has its own line of ® commercial cookware and cutlery under the Robinox brand name. For a complete set of brochures please contact your nearest authorised dealer or contact Roband directly at our head office.
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION ..................... 1 GENERAL PRECAUTIONS ..................1 PACKAGING ......................2 COMPLIANCE ......................2 INSTALLATION ....................... 3 OPERATION......................4 GENERAL SAFETY ....................6 CLEANING, CARE & MAINTENANCE ..............7 TROUBLESHOOTING ..................... 7 SPECIFICATIONS ....................8 WIRING SCHEMATIC ..................... 9 SPARE PARTS LIST ..................... 10 APPENDIX A ...................... -
Page 4: Introduction
Toaster, and ensure that any risk to unwary customers or staff is minimised with additional signage if necessary. Due to the obvious heat hazard Roband recommends that these units be kept out of reach of children. Do not allow children to play with these units. -
Page 5: Packaging
PACKAGING All care is taken when packing and Roband ensures that every unit is functional and undamaged at the time of packaging. The Package of this Toaster should include: One Eclipse Toaster (appropriate model) One Wire Rack Inlet Chute One Solid Inlet Chute... -
Page 6: Installation
Before connecting the toaster to the mains power supply, ensure that the controls are in the OFF (0) position. AUSTRALIAN MODELS ET315: Plug the toaster into a standard single phase 15 amp power point. ET310: Plug the toaster into a standard single phase 10 amp power point. INTERNATIONAL MODELS ET313-GXX: Plug the toaster into a standard 13 amp UK power point, Type G. -
Page 7: Operation
OPERATION Figure 1 – Control Panel Front Panel Controls Item Description Function Switches toaster on and Main On/Off Switch Changes speed of Speed Control Knob conveyor Lower Elements Changes the element Power power Lower Elements Pilot Indicates the elements are Light Upper Elements Changes the element... - Page 8 Set the conveyor speed control initially to maximum, position 20. Also set both the element controls to maximum output, position 20. Allow a warm up time of 10 to 15 minutes. The toasting temperature will continue to rise for around an hour as the machine warms.
-
Page 9: General Safety
SAFETY GENERAL SAFETY This machine contains no user-serviceable parts. Roband Australia, one of our agents, or a similarly qualified person(s) should carry out any and all repairs. Any repair person(s) should be instructed to read the Safety warnings within this manual before commencing work on these units. -
Page 10: Cleaning, Care & Maintenance
CLEANING, CARE & MAINTENANCE Attention to regular care and maintenance will ensure long and trouble free operation of your toaster. Although scheduled servicing is not required we do recommend you adopt a program of regular maintenance to ensure that the Toaster is clean and functional and to avoid inadvertently damaging the unit. -
Page 11: Specifications
SPECIFICATIONS Nominal Dimensions Power Power Model Source Consumption Width Height Depth 485mm 400mm not 230 Volts including ET315 3220 Watts 475mm including chutes chutes 230 Volts “ “ “ ET313 2990 Watts 230 Volts “ “ “ ET310 2300 Watts NOTE: Constant Research and Development may necessitate machine changes at any time. -
Page 12: Wiring Schematic
WIRING SCHEMATIC Note: This circuit diagram has been provided for reference and to assist qualified service and repair agents only. Under no circumstances should a person not suitably qualified attempt repairs to any electrical equipment. Page: 9... -
Page 13: Spare Parts List
Return Chute Heat Guard ES0380 Speed Controller & Knob & 300° Rotation Insert SS3001 Solid Inlet Chute MS0565 Knob with 300° Rotation Insert SS3002 Step Adjustable Outlet Chute ET315 PARTS Part Part Description: Description: Number Number HC0104 Element - 320W 46V EC0306 Plug &... - Page 14 ET310 PARTS Part Part Description: Description: Number Number EC0239 Plug & Cord - 10 Amp Black HC0021 Element - 357W 75V Thermoset Elastomer - 2BL 1E -FXX, -GXX AND -MXX MODELS POWER CORD Type Part Number Description Plug & Cord - 1.5mm2 UK 13A 3 pin plug with 13A fuse EC0281 Rubber (2 Bootlace, 1 Eye) EC0137...
- Page 15 NOTES Page: 12...
- Page 16 NOTES Page: 13...
- Page 17 NOTES Page: 14...
-
Page 18: Appendix A
If you are unable to locate a circuit without an RCD please contact your supplier, or if you prefer you can contact Roband and send the unit to one of our offices where we can run the machine on a suitable circuit free of charge (a return freight charge may apply). -
Page 19: Warranty
Any repairs or replacement of defective goods or materials pursuant to this warranty, must be authorized by Roband Australia prior to any action being taken. The company reserves the right to reject a claim for warranty if it is not completely satisfied with the circumstances under which it occurred and any other costs incurred for false claims or faults due to incorrect usage etc. - Page 20 OTHER LEADING PRODUCTS AVAILABLE: Sycloid Toaster DRINK MIXERS HIGH PERFORMANCE DEEP FRYERS VITAMIX BLENDERS GRILLMAX TOASTERS NOAW Slicers Manufactured/Imported in Australia by: Authorised Distributor/Agent...
