OPERATING INSTRUCTIONS
GRILL MAX WIDE MOUTH TOASTER
Models GMW815E Version 2
Special Features:
Variable Multi-Rack Positions
Electronic Timer
Cooling Fan
Ultra-Durable Stainless Steel Elements
Easy Clean Crumb Tray & Reflector
®
These instructions cover the models of ROBAND
Grill Max Wide Mouth Toasters only.
1/08/2016
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ROBAND GMW815E
Summary of Contents for ROBAND GMW815E
-
Page 1: Operating Instructions

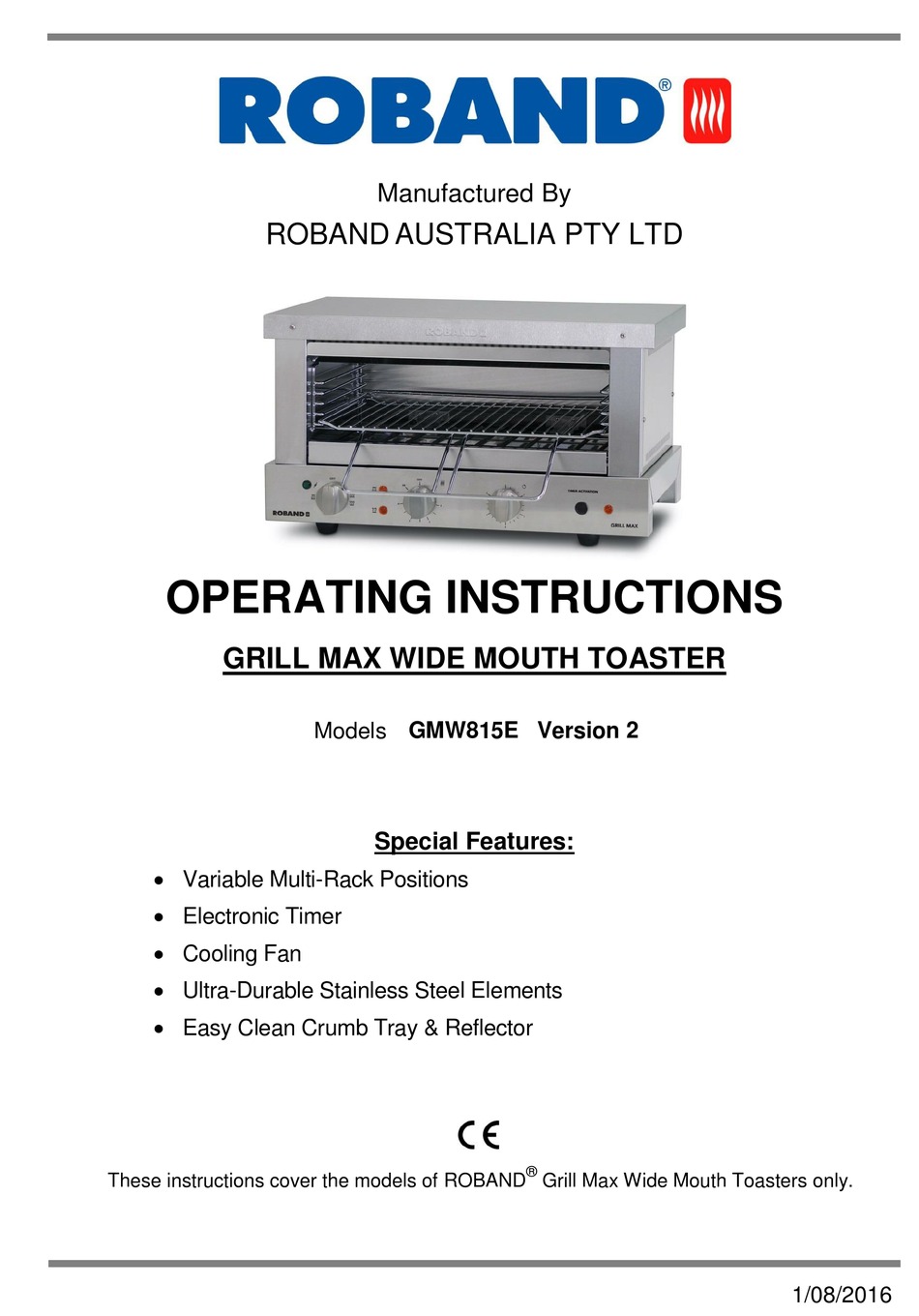

Models GMW815E Version 2 Special Features: Variable Multi-Rack Positions Electronic Timer Cooling Fan Ultra-Durable Stainless Steel Elements Easy Clean Crumb Tray & Reflector ® These instructions cover the models of ROBAND Grill Max Wide Mouth Toasters only. 1/08/2016... - Page 2 ® ® ®...
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION ..................... 1 GENERAL PRECAUTIONS ..................1 PACKAGING ......................2 COMPLIANCE ......................2 INSTALLATION ....................... 3 OPERATION......................4 GENERAL SAFETY ....................6 CLEANING, CARE & MAINTENANCE ..............7 TROUBLESHOOTING ..................... 8 SPECIFICATIONS ....................9 CIRCUIT DIAGRAM....................10 Spare Parts List ..................... 11 APPENDIX A ...................... -
Page 4: Introduction
INTRODUCTION ® Congratulations on your purchase of this quality ROBAND product. With proper care and management your new purchase will give you years of trouble free service. By reading these instructions carefully you can ensure that this machine is used and maintained properly, helping your new investment to perform well for you now, and to continue performing in the many years to come. -
Page 5: Packaging
PACKAGING All care is taken when packing and Roband ensures that every unit is functional and undamaged at the time of packaging. The Package should include: One Grill Toaster, Model GMW815E One cooking rack This manual Packaging Materials Any damage to the machine as a result of freight must be reported to the Freight Company and to the agent responsible for the dispatch of said unit within 24 hours of receipt. -
Page 6: Installation
Any damage caused to adjacent surfaces or equipment as a result of the unit being too close will not be covered by warranty. Roband recommends a minimum gap of 100mm be maintained all around the unit to allow adequate ventilation and to prevent any damage to heat sensitive materials. -
Page 7: Operation
OPERATION The GMW815E is capable of toasting and grilling on both sides at once or on the top only. It also has the flexibility to be controlled with the timer or the energy regulator depending on your requirements. In all cases the machine must be switched on by the On/Off rotary switch into the "TOP &... - Page 8 Note: The timer has some unique features; The timer can be wound back to zero to end the timing sequence early. The activation switch can be touched during the timing sequence and this will also end the sequence early. ...
-
Page 9: General Safety
SAFETY GENERAL SAFETY This machine contains no user-serviceable parts. Roband Australia, one of our agents, or a similarly qualified person(s) should carry out any and all repairs. Any repair person(s) should be instructed to read the Safety warnings within this manual before commencing work on these units. -
Page 10: Cleaning, Care & Maintenance
CLEANING, CARE & MAINTENANCE Attention to regular care and maintenance will ensure long and trouble free operation of your Toaster. Ensure the power is off and the Toaster is cool before attempting to clean any part of the machine. ... -
Page 11: Troubleshooting
CAUTION: Although every care is taken during manufacture to remove all sharp edges, care should be taken when cleaning and handling the Toaster to avoid injury. CAUTION: Some cleaning agents can damage stainless steel, usually through prolonged use. For this reason we recommend cleaning with soapy water. Any damage to the unit through the use of harsh or improper cleaning agents is entirely the fault of the user. -
Page 12: Specifications
SPECIFICATIONS GMW815E Model Power Source ( Volts AC) Power Consumption ( Watts ) 3450 Nominal Dimensions Width (mm) Height (mm) Depth (mm) Constant research and development may necessitate specification changes at any time Page: 9... -
Page 13: Circuit Diagram
CIRCUIT DIAGRAM Model: GMW815E Note: This circuit diagram has been provided for reference and to assist qualified service and repair agents only. Under no circumstances should a person not suitably qualified attempt repair to any electrical equipment. Page: 10... -
Page 14: Spare Parts List
SPARE PARTS LIST Model: GMW815E PART NO DESCRIPTION PART NO DESCRIPTION EC0031 Ceramic Terminal Block MC0871 Rack EC0306 Plug and Cord PC0061 Cord Clamp Nylon Bush 5/8” EC0460 Timer Activation Switch PC0072 Fan – Tangential Nylon Bush 1/2” EC0471 PC0139... -
Page 15: Appendix A
If you are unable to locate a circuit without an RCD please contact your supplier or contact Roband or our Agent for alternative suggestions. Page: 12... -
Page 16: Notes
NOTES (Record any preferred times or settings etc. here to act as a quick reference for other users) Page: 13... -
Page 17: Notes
NOTES (Record any preferred times or settings etc. here to act as a quick reference for other users) Page: 14... -
Page 18: Ec Declaration Of Conformity
DECLARATION I hereby declare under our sole responsibility that the product mentioned above to which this declaration relates complies with the above-mentioned standard(s). Roband Australia has appointed Valera Ltd as our EU Authorised Representative of : 5-7 The Glade Business... -
Page 19: Warranty
Any repairs or replacement of defective goods or materials pursuant to this warranty, must be authorized by Roband Australia prior to any action being taken. The company reserves the right to reject a claim for warranty if it is not completely satisfied with the circumstances under which it occurred and any other costs incurred for false claims or faults due to incorrect usage etc. - Page 20 OTHER LEADING PRODUCTS AVAILABLE: Sycloid Toaster DRINK MIXERS HIGH PERFORMANCE DEEP FRYERS VITAMIX BLENDERS NOAW Slicers GRILLMAX TOASTERS Manufactured/Imported in Australia by: Authorised Distributor/Agent...
