OPERATING INSTRUCTIONS
These instructions cover the models of ROBAND
variances between models, the installation, operation, care and maintenance procedure is the
same for all.
Manufactured By
ROBAND AUSTRALIA PTY LTD
VERTICAL TOASTERS
Models: TC55 & TC66 Version 5
Includes
International models: ...-UK
Special Features:
Multi-Slice Selection
Advanced Control Safety Systems
Ultra-Durable Stainless Steel Elements
Easy Clean Crumb Tray
Isolating Switch
Vertical Toasters only. Although there are slight
®
12/10/2012
Advertisement
Table of Contents
Related Manuals for ROBAND TC55
Summary of Contents for ROBAND TC55
-
Page 1: Operating Instructions

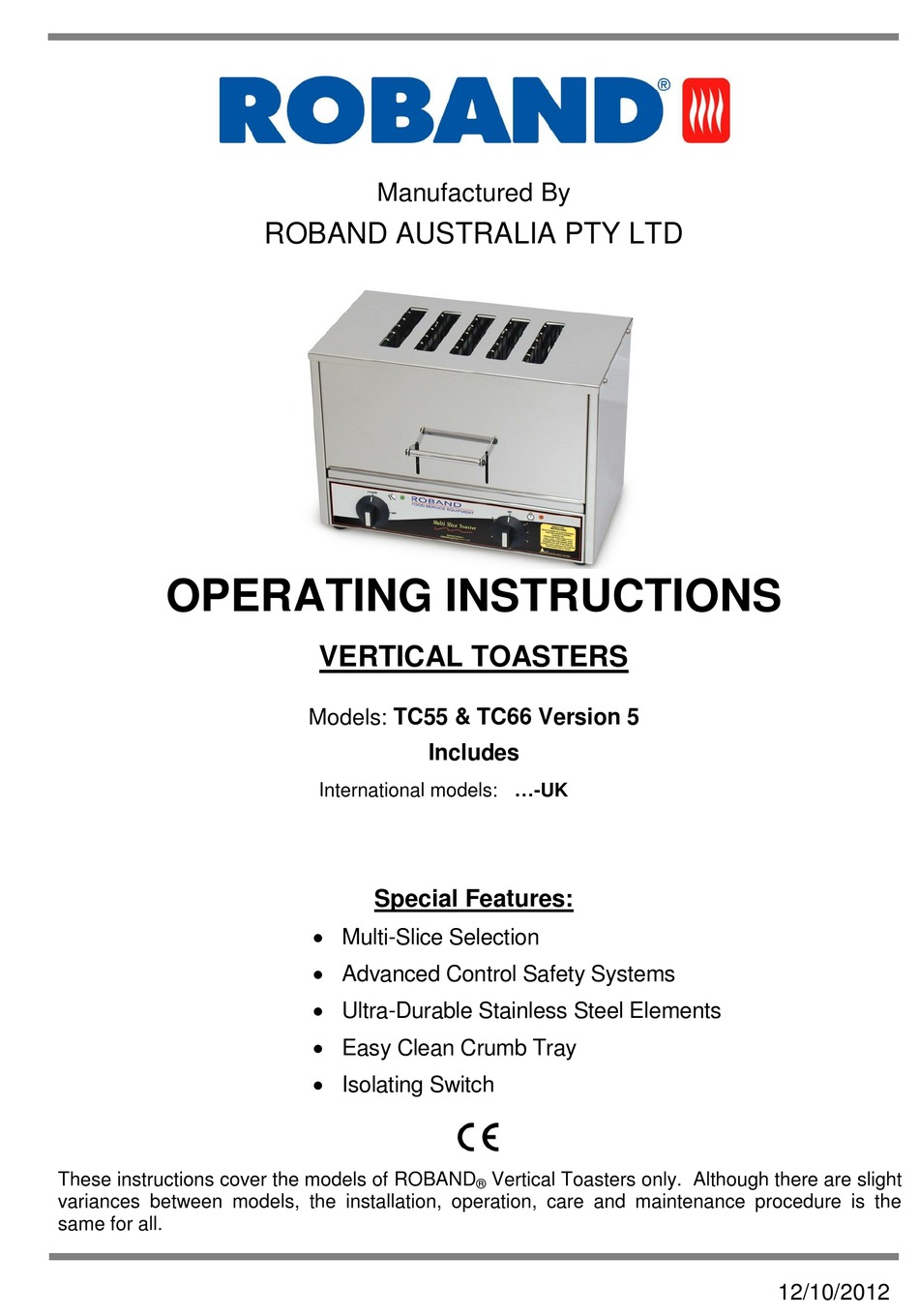

Manufactured By ROBAND AUSTRALIA PTY LTD OPERATING INSTRUCTIONS VERTICAL TOASTERS Models: TC55 & TC66 Version 5 Includes International models: …-UK Special Features: Multi-Slice Selection Advanced Control Safety Systems Ultra-Durable Stainless Steel Elements Easy Clean Crumb Tray ... - Page 2 Cookware, Robalec Soup/Rice Warmers & Robatherm Urns . In addition to a vast range of machines, Roband Australia has its own line of ® commercial cookware and cutlery under the Robinox brand name. For a complete set of brochures please contact your nearest authorised dealer or contact Roband directly at our head office.
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION ..................... 1 GENERAL PRECAUTIONS ..................1 PACKAGING ......................2 COMPLIANCE ......................2 INSTALLATION ....................... 3 OPERATION......................4 GENERAL SAFETY ....................5 CLEANING, CARE & MAINTENANCE ..............6 TROUBLESHOOTING ..................... 7 SPECIFICATIONS ....................7 CIRCUIT DIAGRAM....................8 EXPLODED VIEW ....................9 TOASTING ADVICE .................... -
Page 4: Introduction
Toaster, and ensure that any risk to unwary customers or staff is minimised with additional signage if necessary. Due to the obvious heat hazard Roband recommends that these units be kept out of reach of children. Do not allow children to play with these units. -
Page 5: Packaging
PACKAGING All care is taken when packing and Roband ensures that every unit is functional and undamaged at the time of packaging. The Package of these grills should include: One Multi-Slice Toaster (appropriate model) Crumb Tray Packing Inserts This manual... -
Page 6: Installation
Before connecting the Toaster to the power supply, ensure that the timer and the main On/Off switch are in the "OFF" position. For model TC55 plug the toaster into a standard, single phase, 10Amp power point. For the TC66 plug the toaster into a standard, single phase, 15Amp power point. -
Page 7: Operation
In all models the timer controls the elements. These toasters can be used to toast 2 or “all” (5 slices for TC55, 6 for the TC66) slices of toast. The rotary switch located on the front of the machine labelled accordingly controls the number of slices. -
Page 8: General Safety
SAFETY GENERAL SAFETY This machine contains no user-serviceable parts. Roband Australia, one of our agents, or a similarly qualified person(s) should carry out any and all repairs. Any repair person(s) should be instructed to read the Safety warnings within this manual before commencing work on these units. -
Page 9: Cleaning, Care & Maintenance
CLEANING, CARE & MAINTENANCE Attention to regular care and maintenance will ensure long and trouble free operation of your toaster. Although scheduled servicing is not required we do recommend you adopt a program of regular maintenance to ensure that the Toaster is clean and functional and to avoid inadvertently damaging the unit. -
Page 10: Troubleshooting
Only after all these points have been checked should you call for service. SPECIFICATIONS Nominal Dimensions Power Power Model Source Consumption Width Height Depth TC55 & 220-240 2015 – 2400W 410mm 291mm 272mm TC55-UK Volts AC TC66 & 220-240 2350 - 2800W... -
Page 11: Circuit Diagram
CIRCUIT DIAGRAM All Models *This circuit diagram has been provided for reference and to assist qualified service and repair agents only. Under no circumstances should persons not suitably qualified attempt repairs to any electrical equipment. Page: 8... -
Page 12: Exploded View
EXPLODED VIEW Model: TC55 Page: 9... -
Page 13: Toasting Advice
TOASTING ADVICE An excerpt from an article published by Roband Australia Regardless of the brand, any radiant heat toaster will run into problems when faced with the nasty prospect of fresh bread. The reason for this is simple; the high moisture content in fresh bread acts to counter the toasting effect. -
Page 14: Appendix A
If you are unable to locate a circuit without an RCD please contact your supplier or contact Roband or our Agent for alternative suggestions. Page: 11... - Page 15 NOTES Page: 12...
- Page 16 NOTES Page: 13...
-
Page 17: Notes
NOTES Page: 14... -
Page 18: Ec Declaration Of Conformity
DECLARATION I hereby declare under our sole responsibility that the product mentioned above to which this declaration relates complies with the above-mentioned standard(s). Roband Australia has appointed Valera Ltd as our EU Authorised Representative of : 5-7 The Glade Business... -
Page 19: Warranty
Under no circumstances shall Roband Australia Pty Ltd or any subsidiary company or Agent be liable for loss of profit or damage to other equipment and property. - Page 20 OTHER LEADING PRODUCTS AVAILABLE: -PLUS DRINK MIXERS PIE & FOOD WARMERS HIGH PERFORMANCE DEEP FRYERS VITAMIX BLENDERS NOAW Slicers GRILLMAX TOASTERS Manufactured/Imported in Australia by: Authorised Distributor/Agent...
