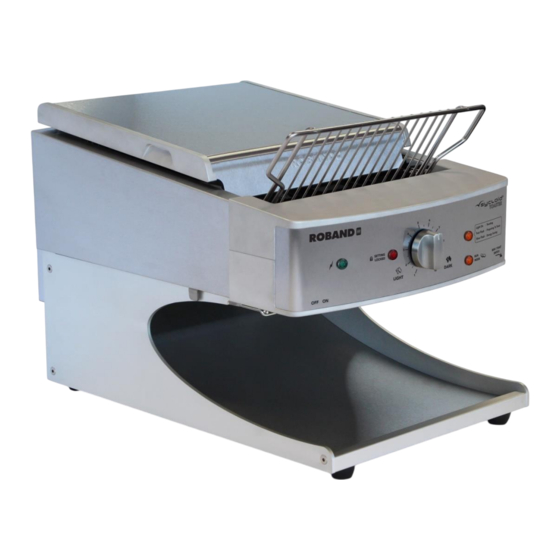

- Page 1 Instruction Manual SYCLOID TOASTERS ST350A Version 3 ST500A Version 3 Alternative Colours …B, …R International Models …-Bxx, …-Fxx, …-Gxx, …-Mxx...
-
Page 2: Table Of Contents
CONTENTS PARTS INCLUDED Product Features One Sycloid Conveyor Toaster Specifications (appropriate model) Parts Included One Crumb Tray Safety Instructions Instruction Manual Cleaning & Maintenance Installation Any damage to the machine as a result of Operation freight must be reported to the Freight Troubleshooting Company and to the agent responsible for the Spare Parts... -
Page 3: Cleaning & Maintenance
CAUTION: Disconnect from power and allow to This machine contains no user-serviceable parts. cool before cleaning. Roband Australia, one of our agents, or a CAUTION: Steel cutting processes used in the similarly qualified person(s) should carry out construction of this machine can result in sharp repairs. -
Page 4: Installation
Opening the Cover INSTALLATION Pull the cover release lever on the left hand side Remove all packaging materials, tape, and any of the machine. Using your other hand, open protective plastic from the machine. Remove the top cover. Do not move or bump the any glue residue from the protective plastic or machine whilst the cover is open. -
Page 5: Operation
OPERATION takes about 10 minutes to reach a constant cooking temperature. Description Function Energy Saving Mode Enabled Top Cover Latch Pull to release and Warm Up Cycle open top cover When switched on, the toaster will begin its Power Switch Turns toaster on/off Warm-Up Cycle. - Page 6 1. Motor Saving Mode Setting the Speed After the toaster has been idle for a period of Set the speed control knob to about 5 as an 5 minutes the conveyor motor turns off to save initial speed setting. Place 1 or 2 slices of bread energy.
- Page 7 Fault Modes Switching Off the Machine In the event of a fault, the machine will enter When switched off, the cooling fan will continue Fault Mode. to run on for period of 10 minutes to cool the toaster down. During Fault Mode, power to the elements and the conveyor will be shut down until the fault is It is recommended that the machine be rectified.
-
Page 8: Troubleshooting
TROUBLESHOOTING SENSOR TEST MODE If the Toaster does not function check the Step 1: Place the machine in Sensor Test Mode following points before calling for service. This test can be used to test the operation of The machine is plugged in correctly and the the bread sensor and conveyor motor. - Page 9 Indicating Lights Use this table to help diagnose the machine status. Status Amber Status Light Red Light Chute Lights Warm Up Quick flash Normal Speed Locking Quick flash Speed Locked Speed Unlocked Motor Save Energy Save 1 second flash Sleep 2 second flash Cover Open 1 second flash alternately...
-
Page 10: Spare Parts
SPARE PARTS Common ST350A EC0031 Terminal Block EC0239 Plug & Cord - 10A EC0158 Switch - Rocker HC0221 1030W 230V - Top Element EC0439 Ø60 x 180 Tangential Fan HS0026 1180W 230V - Bottom Element & Reflector Assembly EC0440 Speed Control Pot Assembly EC0447 6 x LED Lighting Strip ST500A... -
Page 11: Warranty
Roband reserves the right to reject a warranty claim if it is not satisfied with the circumstances under which the fault occurred or where a product has been altered from its original specification. - Page 12 © Copyright 2019 – Roband Australia Pty Ltd ® All rights reserved. No part of this work may be reproduced or copied in any form or by any means, electronic or mechanical, including photocopying or posting to a website, without the written permission of the publisher.
Need help?
Do you have a question about the SYCLOID ST350A and is the answer not in the manual?
Questions and answers

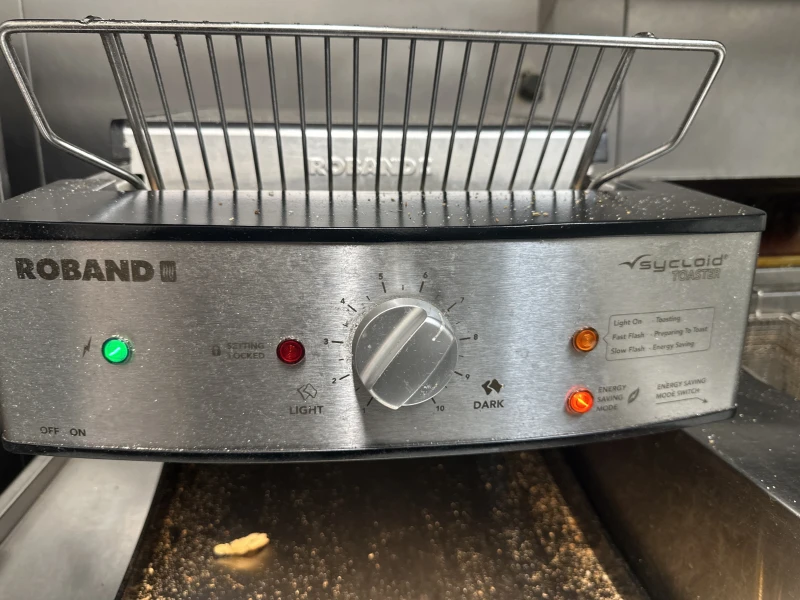

Energy saving mode is constantly on
If the energy saving mode is constantly on, check if the toast sensor is working. If the toast sensor does not function, the machine will not exit energy save mode. Also, verify that the machine is not in Bypass mode, as energy save mode will not function in Bypass mode. If the issue persists, contact technical support, as it may indicate a problem with the Sycloid microcontroller circuit.
