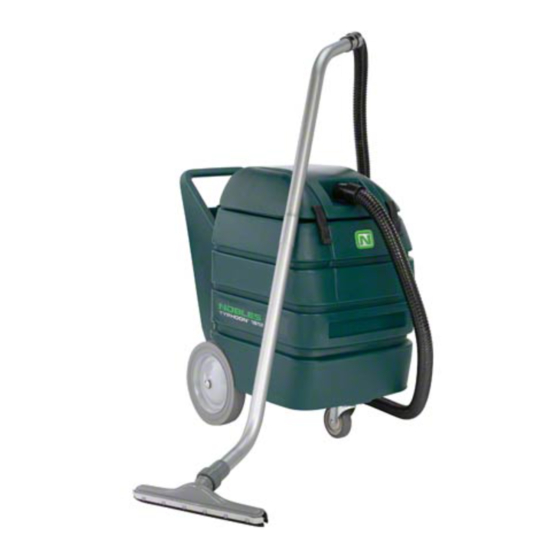

Nobles Typhoon 1610P Operator And Parts Manual

Wet/dry vacuum
Hide thumbs Also See for Typhoon 1610P:
Table of Contents

Advertisement

Quick Links

Model No.:
608240 – 1610P
608239 – 1612
NOBLES
12875 RANSOM STREET
HOLLAND MI 49424 U.S.A.
CUSTOMER SERVICE: 1-800-365-6625
FAX: 1–800–678–4240
OUTSIDE U.S. : 1-616-786-2330
Home
1610P/1612
Find... Go To..
Typhoon
Wet/Dry Vacuum
Operator and Parts Manual
Rev. 01 (01-00)
t
608612

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Typhoon 1610P and is the answer not in the manual?

Questions and answers

Related Manuals for Nobles Typhoon 1610P

Summary of Contents for Nobles Typhoon 1610P

  • Page 1 Typhoon 1610P/1612 Wet/Dry Vacuum Model No.: Operator and Parts Manual 608240 – 1610P 608239 – 1612 NOBLES 12875 RANSOM STREET HOLLAND MI 49424 U.S.A. CUSTOMER SERVICE: 1-800-365-6625 608612 FAX: 1–800–678–4240 Rev. 01 (01-00) OUTSIDE U.S. : 1-616-786-2330 Home Find... Go To..

  • Page 2: Important Safety Instructions

    OPERATION IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE) WARNING -To reduce the risk of fire, electric shock, or injury: Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing.
  • Page 3 OPERATION INSTRUCTIONS DE SÉCURITÉ LIRE TOUTES LES INSTRUCTIONS AVANT DE FAIRE FONCTIONNER (CET APPAREIL) ADVERTISSEMENT - Pour réduire les risques d’incendie, de choc électrique ou de blessure: Ne pas laisser l’appareil san surveillance lorsqu’il est branché. Débrancher lorsque l’appareil n’est pas utilisé et evant l’entretien. Utiliser á...

  • Page 4: Grounding Instructions

    OPERATION GROUNDING INSTRUCTIONS This appliance must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having an equipment–grounding conductor and grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

  • Page 5: Table Of Contents

    1999 Tennant Company Printed in U.S.A The machine is maintained with manufacturer Nobles is a registered United States trademark of Tennant Company. supplied or equivalent parts. Typhoon is a United States trademark of Tennant Company. TABLE OF CONTENTS...

  • Page 6: Safety Precautions

    OPERATION 4. Before leaving or servicing machine: SAFETY PRECAUTIONS – Turn off machine. – Unplug cord from wall outlet. This machine is intended for commercial use. It is 5. When servicing machine: suited for wet/dry vacuuming in an indoor environment –...

  • Page 7: Machine Installation

    OPERATION ATTACHING OPTIONAL SQUEEGEE KIT MACHINE INSTALLATION See Optional Accessories. 1. Empty recovery tank. Check carton for signs of damage. Report damages to carrier immediately. 2. Remove vacuum bag. Check machine contents list, contact distributor for 3. Tip machine on back. missing items.

  • Page 8: Machine Setup

    OPERATION 9. Slide pedal between two mounting arms on back of machine. Align and insert clevis pin through MACHINE SETUP arms and slot in pedal, secure with cotter pin (Figure 5). 1. Connect 15m (50 ft) power cord to machine pigtail cord.

  • Page 9: Machine Operation

    OPERATION ATTENTION: To prevent vacuum motor damage, automatic float shut-off screen must be in place. DRY VACUUMING 1. Open vacuum machine cover and install cloth filter bag, make sure that the bag edge is properly seated on compartment rim (Figure 11) . For easy debris disposal and to prolong cloth bag life, use a paper vacuum bag inside the cloth bag.

  • Page 10: Draining Recovery Tank

    OPERATION 4. During operation, the float shut-off screen will automatically stop water intake when recovery tank becomes full (See DRAINING RECOVERY TANK). ATTENTION: If foam develops in recovery tank during wet vacuuming, use a quality defoamer chemical to eliminate the foam. Foam buildup will NOT activate float, and will cause damage to the vacuum motor.

  • Page 11: Maintenance

    OPERATION ATTENTION: Always have float shut–off screen in place before operating. During wet operation, the shut–off float protects the vacuum motor from water. During dry vacuuming, the float screen can provide limited protection for a faulty filter bag. 7. Inspect vacuum hose regularly for holes, loose cuff or clogged debris.

  • Page 12: Trouble Shooting

    OPERATION TROUBLE SHOOTING PROBLEM CAUSE SOLUTION Machine does not run. ON/OFF switch is OFF. Turn switch to ON. Vacuum not plugged into wall outlet. Plug power cord to wall outlet. Faulty ON/OFF switch. Replace switch. Faulty wiring. Contact Service Center. Faulty power cord.

  • Page 13: Wiring Diagram

    WIRING DIAGRAM 120V VACUUM MASTER MOTOR SWITCH POWER CORD 220V VACUUM MASTER MOTOR SWITCH POWER CORD Typhoont 1610P/1612 (04–99) Home Find... Go To..

  • Page 14: Parts List

    PARTS LIST TANK GROUP Typhoont 1610P/1612 (04–99) Home Find... Go To..
  • Page 15 (16 GAL. MODEL) 230482.BK BRACKET, SUPPORT (16 GAL. MODEL) PART # DESCRIPTION QTY. 28990 NUT, LOCK 602596 DECAL, WARNING 120657 DECAL, PUMP–OUT INST. 608186 DECAL, “NOBLES” 608492 DECAL, “TYPHOON 1610P” 608493 DECAL, “TYPHOON 1612” Typhoont 1610P/1612 (04–99) Home Find... Go To..

  • Page 16: Base Group

    PARTS LIST BASE GROUP Typhoont 1610P/1612 (04–99) Home Find... Go To..
  • Page 17 PARTS LIST BASE GROUP PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. 140195 SCREW, 1/4–20X1/2 190155 –BRUSH, CARBON (2/PK) 140003 WASHER, FENDER 130417 MOTOR, VACUUM 120V (TYPHOON 1612) 103060 WHEEL (16 GAL. MODEL) 600272 –BRUSH, CARBON (2/PK) 140045 WASHER, FLAT 130415 MOTOR, VACUUM 120V (TYPHOON 1610P)
  • Page 18 PARTS LIST PUMP–OUT GROUP Typhoont 1610P/1612 (04–99) Home Find... Go To..
  • Page 19 PARTS LIST PUMP–OUT GROUP PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. 160482 HOSE, VACUUM 701059 ASM., DRAIN HOSE PUMPOUT 140308 CLAMP 160458 HOSE, DRAIN 700461 VALVE, GATE 140307 CLAMP 100096 GASKET,VAC TUBE 230357 DOWNSPOUT, PVC 1 1/2” 100381 ELBOW,VAC TUBE 140899 SCREW, 10–24X1 1/4 140837...

  • Page 20: Optional Accessories

    OPTIONAL ACCESSORIES SQUEEGEE KIT BREAKDOWN Factory Installed on Machine. Typhoont 1610P/1612 (04–99) Home Find... Go To..
  • Page 21 OPTIONAL ACCESSORIES SQUEEGEE KIT BREAKDOWN PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. 190108 SQUEEGEE KIT 67CM (26 IN) 100150 GASKET 190972 SQUEEGEE KIT 84CM (33 IN) 230725.BK PLATE, REAR 67CM (26 IN) 190958 SQUEEGEE KIT 99CM (39 IN) 230669.BK PLATE, REAR 84CM (33 IN) 230453.BK WELDMENT , SQUEEGEE LIFT...
  • Page 22 OPTIONAL ACCESSORIES PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. 190108 KIT, 66CM (26 IN) SQUEEGEE 190142 KIT, ACCESSORY TOOL 190972 KIT, 84CM (33 IN) SQUEEGEE 190722 TWO PIECE WAND 190958 KIT, 99CM (39 IN) SQUEEGEE 603840 36CM (14 IN) CARPET TOOL SCALLOPED FACE 16593 KIT, ACCESSORY TOOL...
