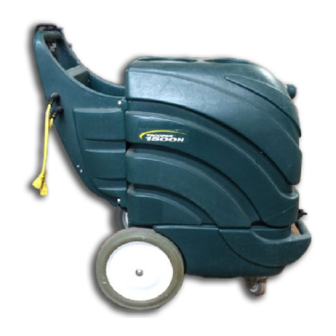

Nobles Trooper 1500H 608570 Operator And Parts Manual

With heat
Hide thumbs Also See for Trooper 1500H 608570:
Table of Contents

Advertisement

Quick Links

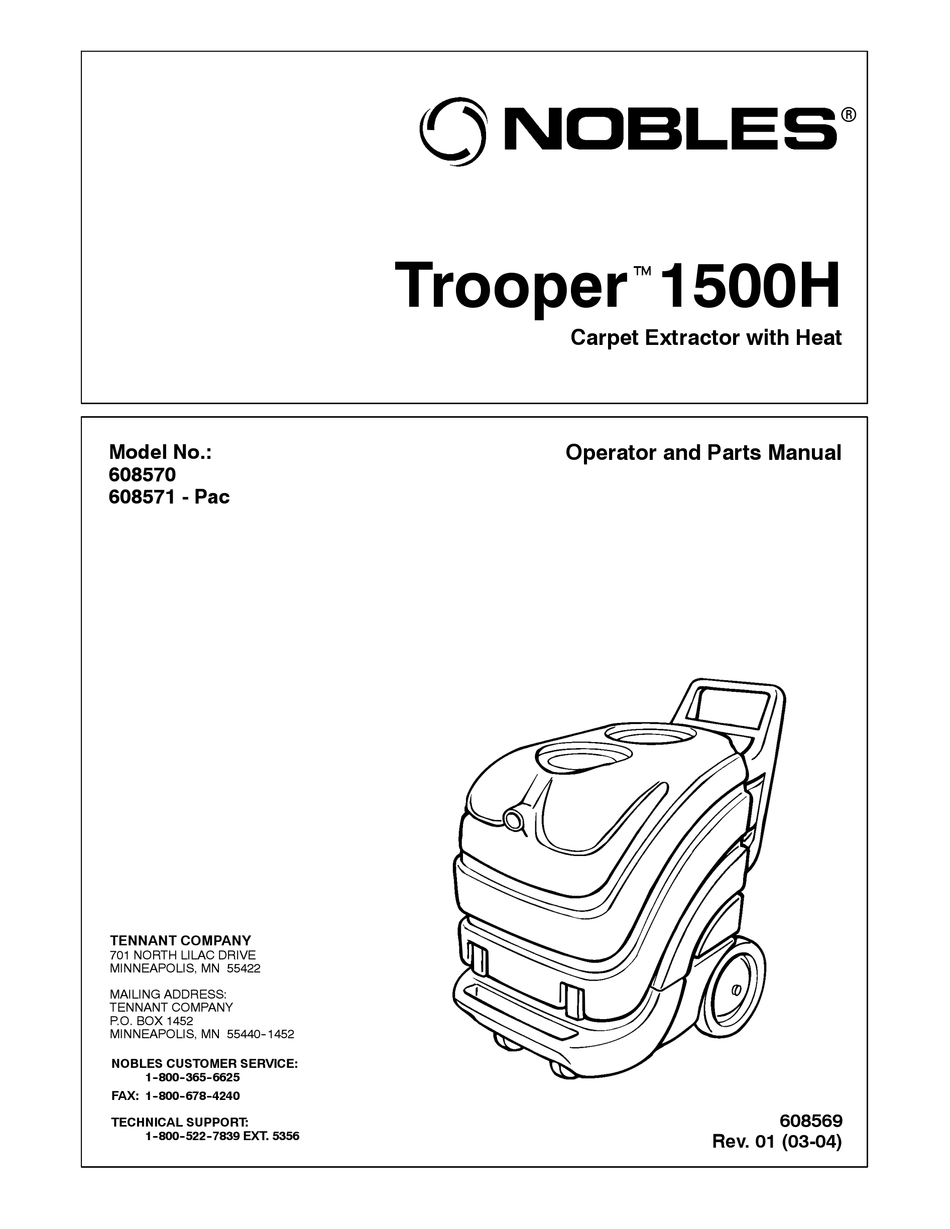

Model No.:
608570
608571 - Pac
TENNANT COMPANY
701 NORTH LILAC DRIVE
MINNEAPOLIS, MN 55422
MAILING ADDRESS:
TENNANT COMPANY
P.O. BOX 1452
MINNEAPOLIS, MN 55440- -1452
NOBLES CUSTOMER SERVICE:
1- - 800- - 365- - 6625
FAX: 1- - 800- - 678- - 4240
TECHNICAL SUPPORT:
1- - 800- - 522- - 7839 EXT. 5356
Home
Trooper
Find... Go To..
1500H
t
Carpet Extractor with Heat
Operator and Parts Manual
Rev. 01 (03-04)
R
608569

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Trooper 1500H 608570 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nobles Trooper 1500H 608570

Summary of Contents for Nobles Trooper 1500H 608570

  • Page 1 MINNEAPOLIS, MN 55422 MAILING ADDRESS: TENNANT COMPANY P.O. BOX 1452 MINNEAPOLIS, MN 55440- -1452 NOBLES CUSTOMER SERVICE: 1- - 800- - 365- - 6625 FAX: 1- - 800- - 678- - 4240 608569 TECHNICAL SUPPORT: 1- - 800- - 522- - 7839 EXT. 5356 Rev.
  • Page 2 Home Find... Go To..

  • Page 3: Table Of Contents

    1999, 2004 Tennant Company Printed in U.S.A. subsidiaries. Nobles is a registered United States trademark of Tennant Company. This machine will provide excellent service. However, Trooper is a United States trademark of Tennant Company. the best results will be obtained at minimum costs if: The machine is operated with reasonable care.

  • Page 4: Safety Precautions

    OPERATION The following information signals potentially dangerous conditions to the operator or SAFETY PRECAUTIONS equipment: FOR SAFETY: This machine is intended for commercial use. It is 1. Do not operate machine: designed to clean carpet and upholstery in an indoor environment and is not constructed for any With flammable liquids or near flammable vapors as an explosion or flash fire may other use.

  • Page 5: Grounding Instructions

    OPERATION 6. When transporting machine: GROUNDING INSTRUCTIONS Get assistance when lifting machine. Unplug cord from wall outlet. Machine must be grounded. If it should Use tie- -down straps to secure machine to malfunction or breakdown, grounding provides a truck or trailer. path of least resistance for electrical current to reduce the risk of electrical shock.

  • Page 6: Machine Components

    OPERATION MACHINE COMPONENTS 1. Recovery Tank 8. Vacuum ON/OFF Switch 2. Solution Tank 9. Pump ON/OFF Switch 3. Accessory Tool Vacuum Hose Hookup 10. Heater ON/OFF Switch 4. Latches 11. Separate Circuit Indicator Light 5. Accessory Tool Solution Hose Hookup 12.

  • Page 7: Machine Setup

    OPERATION ATTENTION: When plugging extension cords into receptacles be certain to use separate circuits. MACHINE SETUP This will prevent a circuit overload. Do not activate heater if green indicator does not light. 1. Carefully check carton for signs of damage. Report FOR SAFETY: Do not operate machine unless damages at once to carrier.

  • Page 8: Operating Floor Tool

    OPERATION OPERATING FLOOR TOOL OPERATING HAND TOOL Optional accessory tool is required. FOR SAFETY: Do not operate machine unless operator manual is read and understood. FOR SAFETY: Do not operate machine unless operator manual is read and understood. NOTE: Vacuum carpet before cleaning. NOTE: This machine cleans most synthetic upholstery 1.

  • Page 9: Draining Tanks

    OPERATION 4. When finished cleaning, turn off switches and 2. Activate pump switch. Pump solution into an drain recovery tank (See DRAINING RECOVERY empty bucket (Figure 7). TANK). 5. After cleaning, relieve water pressure from accessory tool before disconnecting hose. Squeeze trigger for five seconds after turning off the machine.

  • Page 10: Daily Maintenance

    OPERATION DAILY MAINTENANCE WEEKLY MAINTENANCE (Every 4 Hours of Use) (Every 20 Hours of Use) 1. Clean machine with a non-abrasive, nonsolvent 1. Check floor tool for loose shoes. If loose, tap back cleaner. in place with rubber mallet. 2. Drain and rinse tanks thoroughly. 2.

  • Page 11: Storing Machine

    OPERATION STORING MACHINE RECOMMENDED STOCK ITEMS 1. Before storing machine, be certain to flush out Refer to Parts List section for recommended stock tanks and drain machine of all water. items. Stock Items are clearly identified with a bullet preceding the parts description. See example below: 2.

  • Page 12: Trouble Shooting

    OPERATION TROUBLE SHOOTING PROBLEM CAUSE SOLUTION Uneven or no spray from tips. Dirty or plugged spray tips. Clean or replace tips. Improper spray tip size or spray angle. Replace with proper tips. Also check alignment of spray tips so all tips spray in a straight line.

  • Page 13: Specifications

    OPERATION SPECIFICATIONS MODEL Troopert 1500H LENGTH 965mm (38 in.) WIDTH 483mm (19 in.) HEIGHT 965mm (38 in.) WEIGHT 61.2 kg (135 lb) SOLUTION TANK CAPACITY 56.7L (15 gal) RECOVERY TANK CAPACITY 71.9L (19 gal) SOLUTION PUMP 1 A, 120V, 6.81L per min. (1.8 gpm) 6.9 bar (100 psi) max.

  • Page 14: Electrical Diagrams

    ELECTRICAL DIAGRAMS 120V Wiring VACUUM PUMP HEATER INDICATOR LIGHT POWER CORD POWER CORD HEATER SOLUTION PUMP VACUUM MOTOR Troopert 1500H (03- -04) Home Find... Go To..

  • Page 15: Parts List

    PARTS LIST HANDLE GROUP 1006890 PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. 130227 DCORD, 14/3 X 20” YELLOW (120V) 140197 SCREW, #10- -24X0.38 TRSPHL, 130166 DCORD GRIP, NYLON/BLK W/NUT 140825 SCREW, #6X1/2 PANPHL 611939 HANDLE, GREEN 611978 BRACKET, DRAIN HOSE HANGER 130691 DLIGHT, INDICATOR - - GREEN 140231...

  • Page 16: Upper Housing Group

    PARTS LIST UPPER HOUSING GROUP Drain hose has changed to new style - see part numbers Troopert 1500H (03- -04) Home Find... Go To..
  • Page 17 WASHER, 0.25 LOCK 210240 NUT, FLANGED 1- -1/2 FPT 230946 BRACKET, TANK BRACE FRONT 100102 DCLEAR LID W/STANDARD HOLE 608186 DECAL, “NOBLES” 120907 LABEL, IMPORTANT- -ALWAYS... 140932 DLATCH, RUBBER, W/ KEEPER 120906 LABEL, IMPORTANT- -DRAIN... 609980 SCREW, #8- -32X0.38 TRSPHL...

  • Page 18: Chassis Group

    PARTS LIST CHASSIS GROUP Troopert 1500H (03- -04) Home Find... Go To..
  • Page 19 PARTS LIST CHASSIS GROUP PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. 180103 DPUMP, SOLUTION, 100 PSI, 120V 140823 SCREW, #10- -24X0.62 TRSPHL 140011 WASHER, 0.21B FLAT 140552 NUT, #10- -24 NYLCK 140519 NUT, #10- -24 KEP 140328 CLAMP, CABLE 3/8 1014262 SCREW, #10- -24X1.5 PANPHL 140196...

  • Page 20: Plumbing Group

    PARTS LIST PLUMBING GROUP PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. 180103 DPUMP, SOLUTION, 100 PSI, 120V 600546 FERRULE S/S FOR #600545 613488 HOSE, GRAY 3/8“ X 24” 130692 CONTROL, THERMOSTAT 54333 CLAMP, HOSE, WORM, 0.31- -0.88D 140197 SCREW, #10- -24X0.38 TRSPHL, 150412 FITTING, E90, PM06/BM06 101288...

  • Page 21: Pump Breakdown

    PARTS LIST PUMP BREAKDOWN PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. 180103 DPUMP, SOLUTION 100PSI 120V 190128 DKIT, UPPER PUMP HOUSING ∇ 190129 DKIT, PRESSURE SWITCH 190124 DKIT, CHECK VALVE ONLY 190172 DKIT, PRESSURE SWITCH (VITON) 190171 DKIT, VALVE (VITON) 190134 DKIT, DIAPHRAGM ONLY 190131...

  • Page 22: Options

    OPTIONS 127mm (5 in.) HAND TOOL GROUP PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. 200505 DTOOL, HAND 127MM (5 IN.) 190600 VALVE PIN & SPRING ∇ 200431.BK TOOL, HAND 140609 PIN, ROLL 3/16 150913 DFITTING, QDC PF04 FEM 150403 ELBOW, ST 1/4 45°...

  • Page 23: Upholstery Tool Group

    OPTIONS UPHOLSTERY TOOL GROUP PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. 200540 DASM., TOOL, UPHOLSTERY 200844 DHOSE, VACUUM W/O CUFFS ∇ SER 60 200837 DHOSE, SOLUTION 200845 COVER, UPHOLSTERY TOOL 200848 FITTING, BRS (3 PCS.) 200843 GASKET, COVER 200842 FILTER, INLINE, COMPLETE 190631 DKIT, SERVICE (VALVE ASM.)

  • Page 24: 330Mm (13 In.) Low Pressure Floor Tool

    OPTIONS 330mm (13 in.) LOW PRESSURE FLOOR TOOL Troopert 1500H (03- -04) Home Find... Go To..
  • Page 25 OPTIONS 330mm (13 in.) LOW PRESSURE FLOOR TOOL PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. 600048 DASM., FLOOR TOOL ∇ 14 210150 DVALVE, FLOW CONTROL ∇ 330MM (13 IN.) 190603 DKIT, VALVE PIN AND SPRING 200403.BK TOOL, FLOOR, BLACK 160170 WAND HOSE ASSEMBLY, 46 IN.

  • Page 26: 406Mm (16 In.) Low Pressure Floor Tool

    OPTIONS 406mm (16 in.) LOW PRESSURE FLOOR TOOL Troopert 1500H (03- -04) Home Find... Go To..
  • Page 27 OPTIONS 406mm (16 in.) LOW PRESSURE FLOOR TOOL PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. 200503 DASM., FLOOR TOOL, 150615 FITTING, 04PM CLOSE ∇ 406MM (16 IN.) ∇ 15 210150 DVALVE, FLOW CONTROL 200411.BK TOOL, FLOOR, BLACK 190603 DKIT, VALVE PIN AND SPRING 120846 DECAL, LOW PRESSURE TOOL 160170...

  • Page 28: Solution And Vacuum Hoses Group

    OPTIONS SOLUTION AND VACUUM HOSES GROUP PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. 160185 HOSE, SOLUTION 3/8X4.6M/15’ 160400 HOSE, VACUUM 1- -1/2X4.6M/15’ ∇ ∇ (OPTIONAL) (OPTIONAL) 610792 HOSE, SOLUTION 1/4X7.6M/25’ 160401 HOSE, VACUUM 1- -1/2X7.6M/25’ (STANDARD) (STANDARD) 160192 HOSE, SOLUTION 1/4X15.2M/50’ 160402 HOSE, VACUUM 1- -1/2X15.2M50’...
