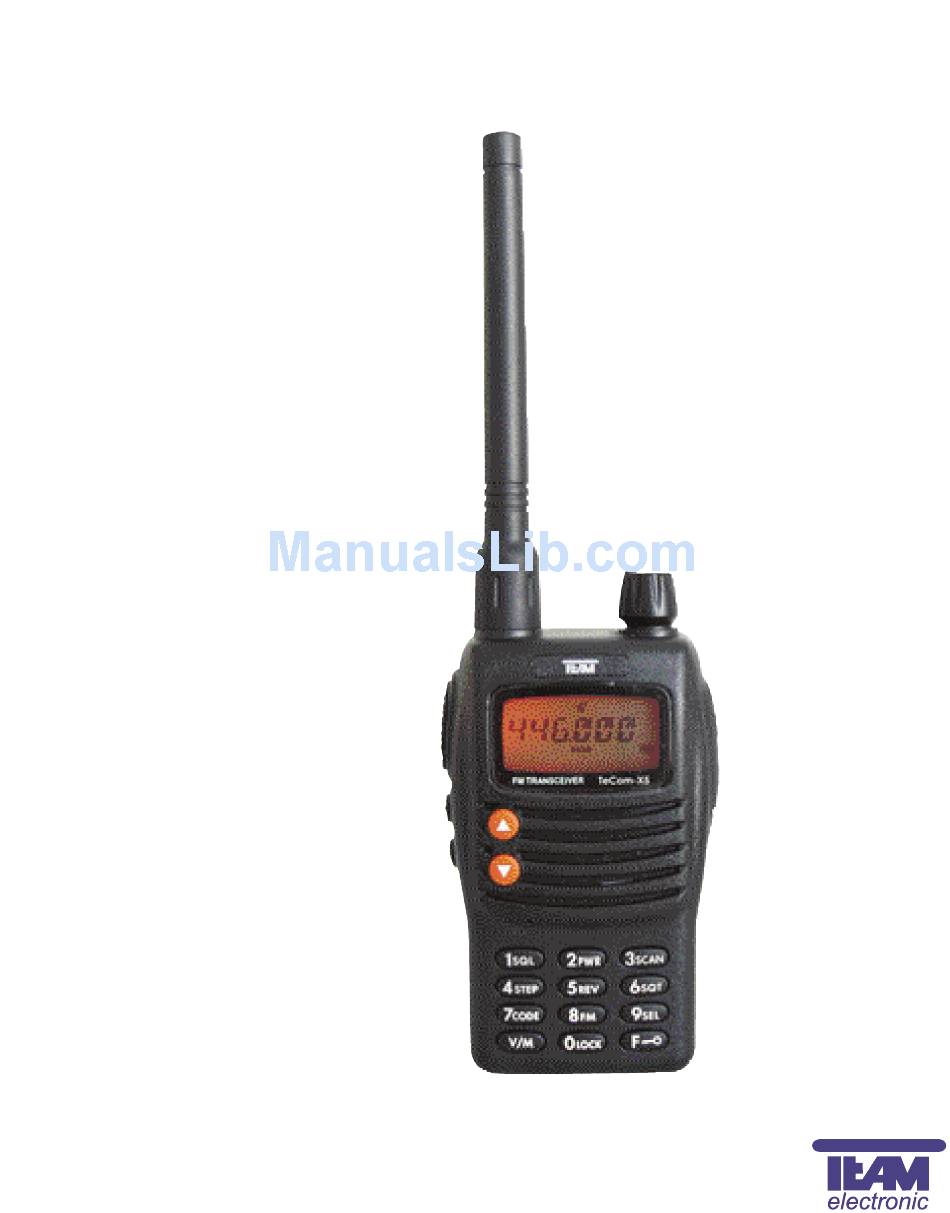

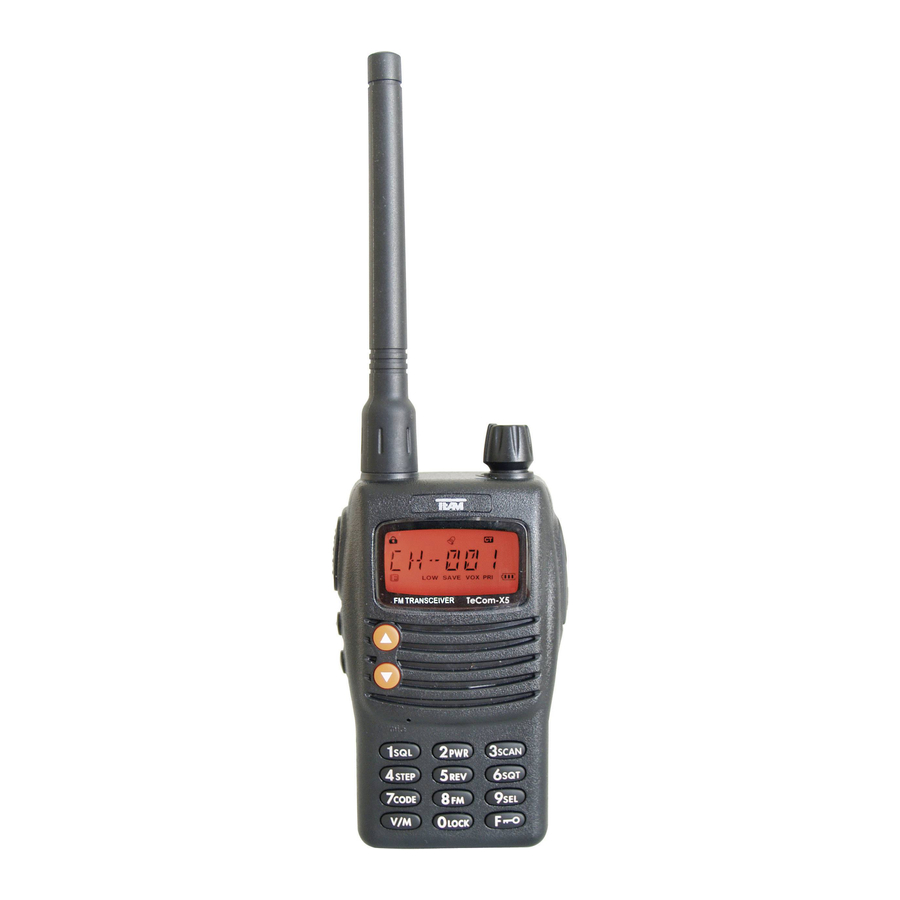

- Page 1 TeCom-X5 FreeNet User’s Manual...
- Page 2 Dear Customer, Thank you for buying a TEAM TeCom-X5. TEAM Electronic stands for high-quality radio com- munication. To fully understand the various functions and the possible settings and to ensure the proper operation of the radio, we recommend to read this manual prior to first time use.
-
Page 3: Table Of Contents
Table of Contents page GENERAL Scope of Delivery Maintenance BASIC FUNCTIONS Antenna Battery Pack On / Off Volume Channel Selection Transmit Reception Keys PTT Transmit Key Multifunctional Key Monitor Key Squelch TX Power Scan Radio MENU 01 APO (Automatic Power Off) 02 APRO (Optional Function) 03 BANK (Memory Bank) 04 BATSAV (Battery Save Function) -
Page 4: Scope Of Delivery
GENERAL Scope of Delivery Unpack the equipment carefully. We recommend you to identify the listed items before discarding the packing material. If any items are missing or have been damaged during shipment, please con- tact the dealer immediately. Supplied Accessories 1 x Antenna (attached with PMR version) 1 x Belt clip 1 x Battery... - Page 5 1 - antenna 2 - LCD 3 - Up / Down keys 4 - microphone 5 - On/Off - volume 6 - LED 7 - speaker 8 - key pad 9 - PTT 10 - multi-function key 11 - monitor key 12 - connection jack 13 - battery pack (1200 mAh / 7.4 V) key lock...
-
Page 6: Basic Functions
BASIC FUNCTIONS Antenna Due to governmental regulations, the antenna in the PMR versi- on is fixed, i.e. non-detachable. Battery Pack To attach the battery pack (13) onto the radio, place the bulges at the bottom of the battery pack into the according holes an the bottom, rear of the radio. Press the battery pack at the top part against the radio until the battery pack snaps in. -
Page 7: Ptt Transmit Key
Key Pad Functions PTT Key The PTT key (11) is located at the left side of the radio. Pressing the PTT key will switch the radio into transmission mode. The LED (6) will light red. Multi-Function Key The multi function key (10) is located under the PTT key (6). It can be programmed with one of these functions: transmit 5-tone selective call 1450 kHz repeater tone... -
Page 8: Radio
Radio The TeCom-X5 has a radio function. Via software, 25 radio frequencies can be stored. It is also possible to manually select frequencies via the keypad. To turn on / off the radio, press the F-key (keypad, lower row, right), followed by the FM key (num- ber 8). -
Page 9: Bank (Memory Bank)
02 APRO Optional Functions Settings : Off / SCRAMB / COMP SCRAMB : upon activation, the radio uses the scrambler coding (1 - 8) that is set in menu function 07 SCR NO. COMP : the compander improves the signal-qualitiy by combining compressor and expander. 03 BANK Memory Bank Settings : No Bank / BANK 1 - 8 (depend on the programmed frequencies) -
Page 10: Dw (Frequency Watch)
09 DW Channel monitoring with activated radion function - On / Off While the radio is on, the selected channel is monitored. Upon reception of a signal, the radio is deactivated until the signal disappears. 10 LAMP Illumination of the LCD - OFF / KEY / CONT : no illumination : after entry, the display is illuminated for 5 seconds CONT... -
Page 11: Opn Msg (Opening Screen)
a) blank character, b) the digits 0 - 9, c) the letters A - Z and d) the symbols asterix *, underscore _ and plus +. Select the symbols with the channel selection keys. To proceed to the next space press the number key 9. To move the cursor backwards press the number key 7. -
Page 12: Tot (Time Out Timer)
21 STE Side Tone Eliminate - On / Off Under certain circumstances, a clicking sound can be heard upon releasing the PTT key. The function STE reduces this noise, which is useful when the radio is operated with a headset. 22 TOT Time-Out-Timer - Off / MIN 1 - 7 Restricts transmission time to set time period (1 - 7 minutes). - Page 13 5-TON SELECTIVE CALLING The TeCom-X5 contains a 5 tone selective calling function, which parameters are set via soft- ware. General Description: Each radio is programmed with an individual radio ID (5-Tone ID). This ID code is always sent with the encode and it serves also as a decode. The 5-Tone encodes are entered via keypad.
- Page 14 50 CTCSS frequency code (Hz) 67.0 94.8 131.8 171.3 203.5 69.3 97.4 136.5 173.8 206.5 71.9 100.0 141.3 177.3 210.7 74.4 103.5 146.2 179.9 216.1 77.0 107.2 151.4 183.5 225.7 79.7 110.9 156.7 186.2 229.1 82.5 114.8 159.8 189.9 233.6 85.4 118.8 162.2...
- Page 15 Specification General Frequency Range UHF: 400 - 470 MHZ VHF: 136 - 174 MHz Working Temperate -20°C - +50°C Operating Voltage DC 7.4V Operate Mode Simplex or Semi-duplex Channel space 2.5 khz Weight 220g incl. battery and antenna Antenna impedance Transmitter Frequency Stability ±2.5PPM...
